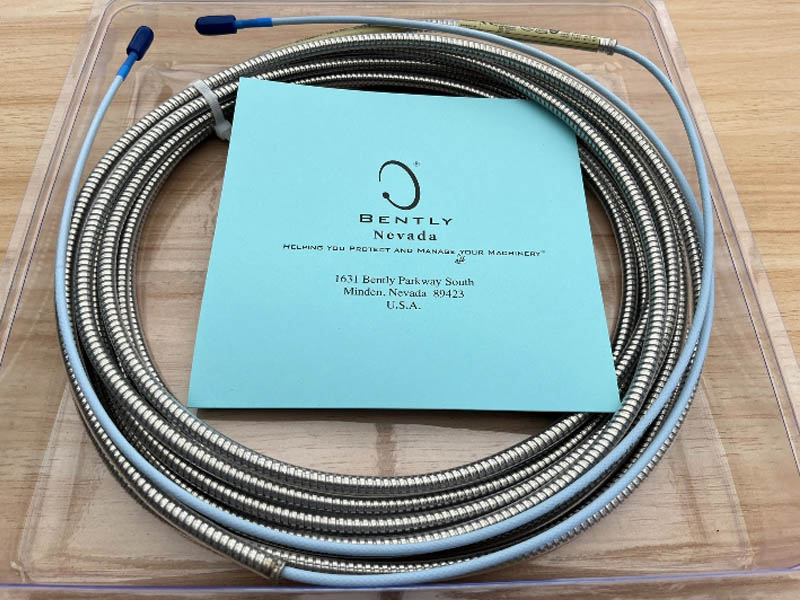

Bently Nevada 330130-080-01-05 3300 XL Standard Extension Cable 8.0 meters length Armored
Description:
330130-080-01-05 is one of Bently Nevada 3300 XL Standard Extension Cable. It is 8.0 meters cable length, Armored cable.

330130-080-01-05 reflects improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

Bently Nevada the 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable, and
One 3300 XL Proximitor Sensor

Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. We do not recommend silicone tape for applications that will expose the probe-to-extension cable connection to turbine oil.

Ordering Information:
3300 XL Standard Extension Cable
330130-AAA-BB-CC
A: Cable Length Option
030 3.0 meters (9.8 feet)
035 3.5 meters (13.1 feet)
040 4.0 meters (11.5 feet)
045 4.5 meters (14.8 feet)
060 6.0 meters (19.7 feet)
070 7.0 meters (22.9 feet)
075 7.5 meters (24.6 feet)
080 8.0 meters (26.2 feet)
085 8.5 meters (27.9 feet)
B: Connector Protector and Cable Option
00 Standard cable
01 Armored cable
02 Standard cable with connector protector
03 Armored cable with connector protector
10 FluidLoc cable
11 Armored FluidLoc cable
12 FluidLoc cable with connector protector
13 Armored FluidLoc cable with connector
protector
C: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals

Related Items:
330130-080-00-05
330130-080-01-05
330130-080-02-00
330130-080-03-00
330130-080-03-05
330130-080-10-05
330130-080-11-05
330130-080-12-05
330130-080-13-05
