Bently Nevada 330130-040-03-05 3300 XL Standard Extension Cable with 4.0 meters Armored cable length
Description:

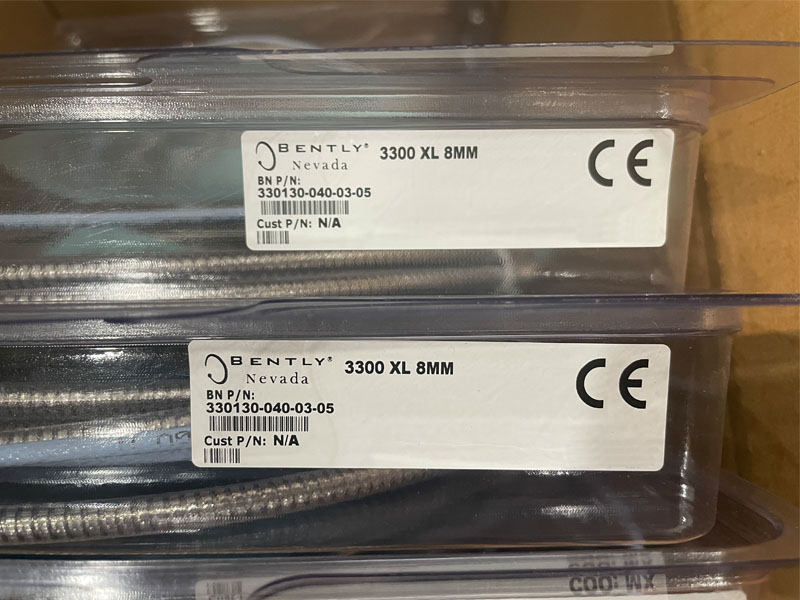

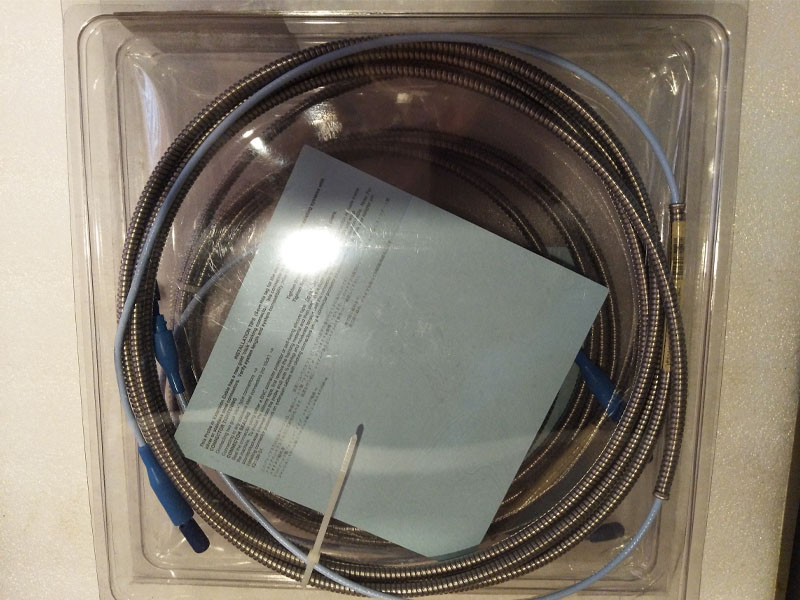

330130-040-03-05 is one of Bently Nevada 3300 XL 8mm Proximity Transducer System extension cable. 330130-040-03-05 is 3300 XL Standard Extension Cable, 4.0 meters cable length, Armored with connector protector.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
330130-040-03-05 also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. We do not recommend
silicone tape for applications that will expose the probe-to-extension cable connection to turbine oil.
Ordering Information:
3300 XL Standard Extension Cable
330130-AAA-BB-CC
A: Cable Length Option
030 3.0 meters (9.8 feet)
035 3.5 meters (13.1 feet)
040 4.0 meters (11.5 feet)
045 4.5 meters (14.8 feet)
060 6.0 meters (19.7 feet)
070 7.0 meters (22.9 feet)
075 7.5 meters (24.6 feet)
080 8.0 meters (26.2 feet)
085 8.5 meters (27.9 feet)
B: Connector Protector and Cable Option
00 Standard cable
01 Armored cable
02 Standard cable with connector protector
03 Armored cable with connector protector
10 FluidLoc cable
11 Armored FluidLoc cable
12 FluidLoc cable with connector protector
13 Armored FluidLoc cable with connector
protector
C: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
