Bently Nevada 330104-00-04-50-02-05 3300 XL 8 mm Proximity Probes Armored

Bently Nevada 330104-00-04-50-02-05 3300 XL 8 mm Proximity Probes with 5 meters cable length, with armor

Brand:
Bently Nevada TSI
Item NO.:
330104-00-04-50-02-05
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Warranty:
1 year

Product Detail

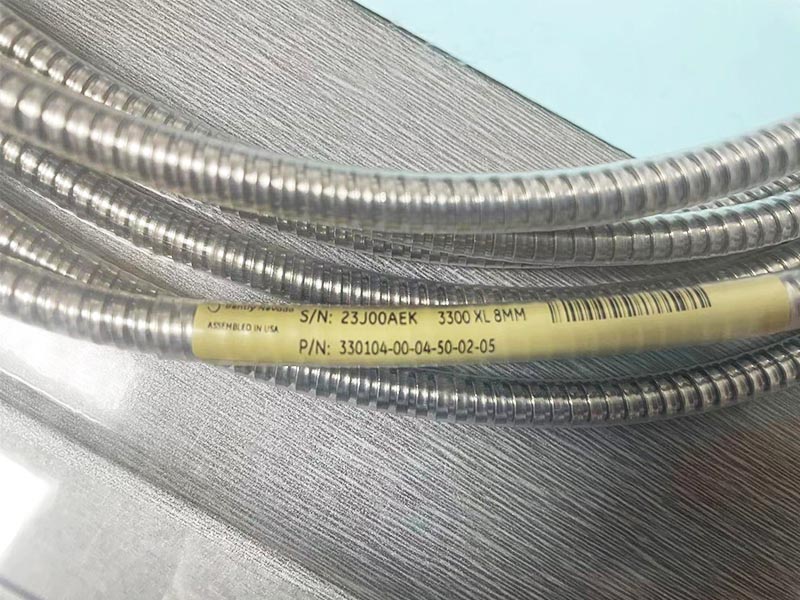

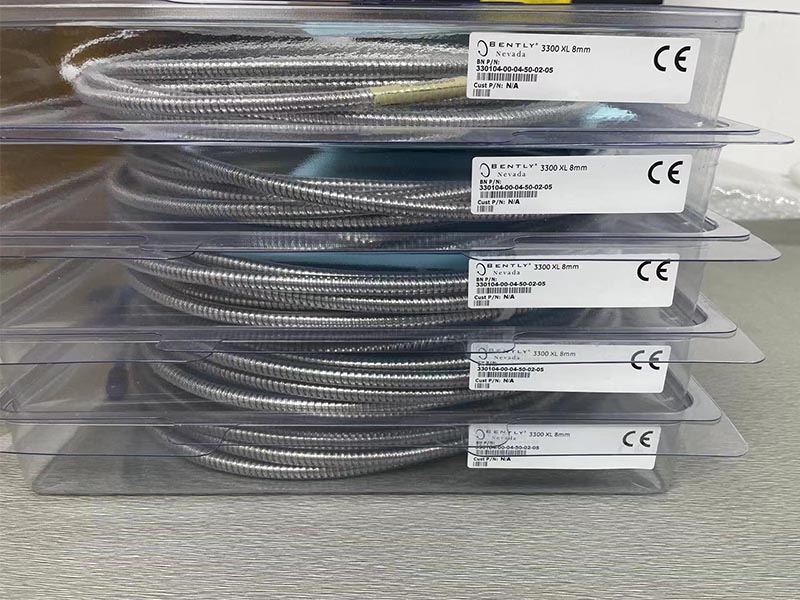

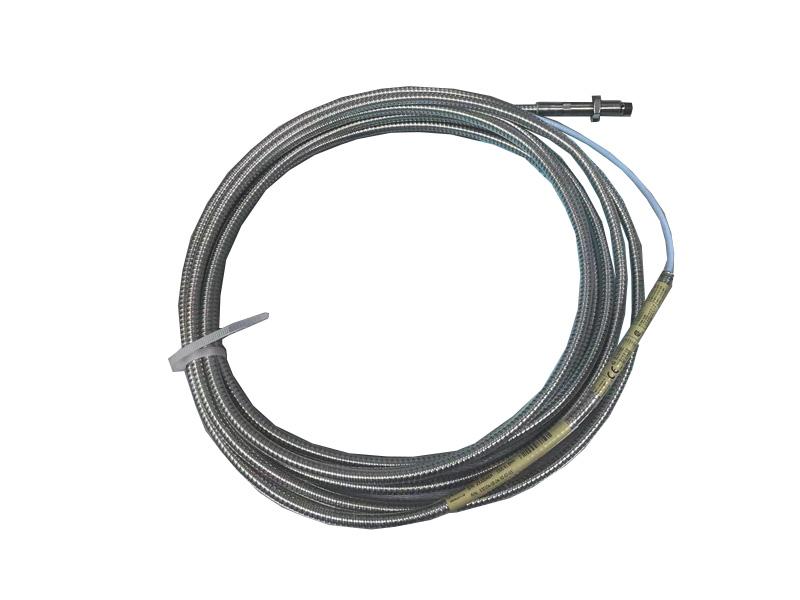

Bently Nevada 330104-00-04-50-02-05 3300 XL 8 mm Proximity Probes with 5 meters cable length
Description:
330104-00-04-50-02-05 is Bently Nevada 3300 XL 8 mm Proximity Probes M10 x 1 thread, 5.0 meter cable length, with armor, Miniature coaxial ClickLoc connector, standard cable.
330104-00-04-50-02-05 reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe.
The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.

Ordering Information:
330103-AA-BB-CC-DD-EE
A: Unthreaded Length Option
B: Overall Case Length Option
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
