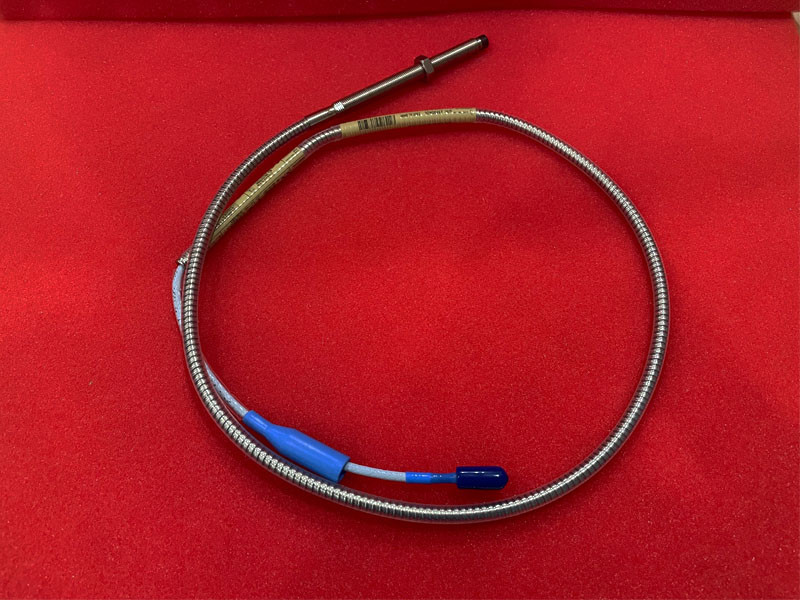

Bently Nevada 330102-00-40-10-01-05 3300 XL 8 mm Proximity Probes with 0.5 meter length cable with armor
Bently Nevada 330102-00-40-10-01-05 3300 XL 8 mm Proximity Probes with 0.5 meter length cable with armor
Brand:
Bently Nevada TSIItem NO.:
330102-00-40-10-01-05Order(MOQ):
1 PCPayment:
T/TMarket Price:
999Price:
$999Product Origin:
USAShipping Port:
XiamenLead Time：
In stockWarranty:

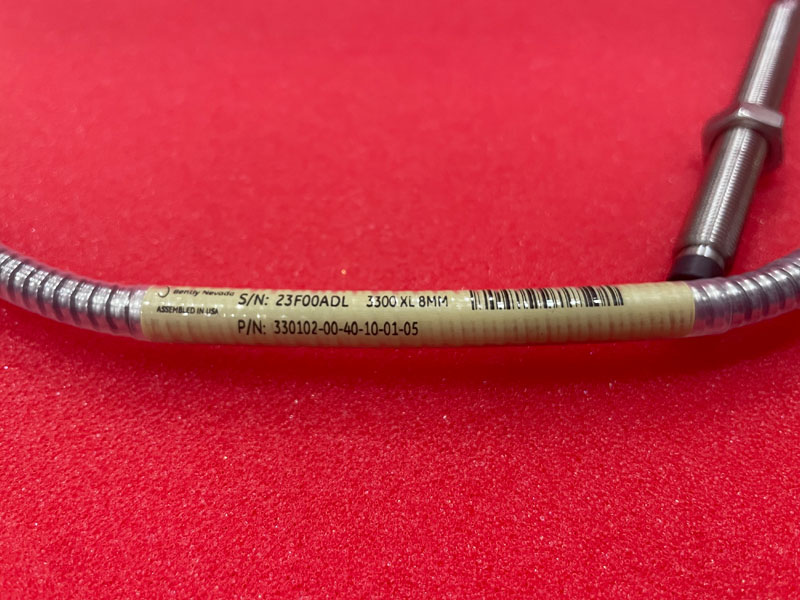

1 year330102-00-40-10-01-05 is one of Bently Nevada 3300 XL 8 mm Proximity Probes. 330102-00-40-10-01-05 is 3/8-24 UNF thread, with armor, 1 meter total length cable with Miniature coaxial ClickLoc connector with connector protector, standard cable, CSA, ATEX, IECEx Approvals.
The 3300 XL probe reflects improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. This results in a more rugged probe. The larger diameter of the probe body also provides a stronger, more robust case. We recommend that you use 8 mm probes when possible to provide optimal robustness against physical abuse.
3300 XL 8mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
