Bently Nevada 24701-34-05-00-060-03-02 Proximity Probe Housing Assemblies

Bently Nevada 24701 stainless steel probe housing assembly

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    24701-34-05-00-060-03-02
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    Xiamen
  • Lead Time:

    In stock
  • Weight:

    1.8 kg
  • Warranty:

    1 year
Product Detail

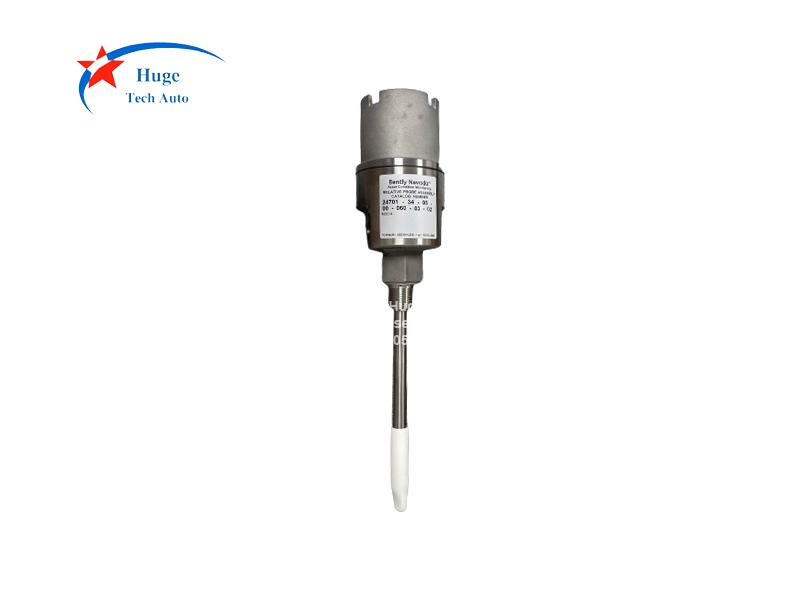

Bently Nevada 24701-34-05-00-060-03-02 Proximity Probe Housing Assemblies
Description:
24701-34-05-00-060-03-02 is Bently Nevada stainless steel probe housing assembly. It is 3300 XL 8mm with  connector protector and approval option, 0.5 meter probe cable length.
To externally mount proximity probes, use one of these  allmetal Proximity Probe Housing Assemblies:
21000 aluminum probe housing assembly
24701 stainless steel probe housing assembly
The 21000 and 24701 Proximity Probe Housing Assemblies consist of the following parts:

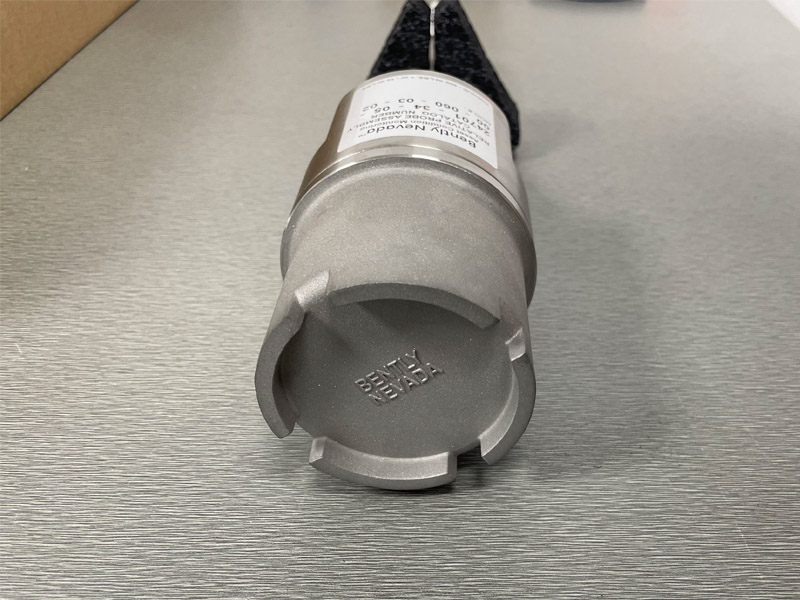

· A dome cover that screws into the body of the housing
· Threaded ports for conduit connections
· A probe sleeve of optional length
· O-rings
· A reverse mount proximity probe
· A thread seal
· Optional conduit fittings
· An optional standoff adapter
The 21000 and 24701 Proximity Probe Housing Assemblies are available with Canadian Standards Association (CSA) approvals. They are rated explosion proof for hazardous areas.

You can order hazardous area approved proximity probes with 21000 aluminum and 24701 stainless steel housings for intrinsically safe applications. Both housings are certified as CSA Type 4 enclosures and are fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.
The 164818 Compact Proximity Probe Housing is also available for applications with space restrictions. Ceramic capped probes are available with the 164818 housing. Sleeve length is determined by the location in which the probe and housing are installed. The probe lead must be longer than the sleeve.
Sleeve lengths longer than 304 mm (12 inches) require additional sleeve support to reduce the vibration associated with unsupported long sleeve lengths.
Bently Nevada offers a probe support and oil seal (part number 37948-01) for long sleeves that must go through an inner bearing housing. We also make custom sleeve supports.

Ordering Information:
24701-AA-BB-CC-DDD-EE-FF
A: Probe with Connector
00 Probe not required
14 420 nuclear
16 3300 XL 8mm probe
26 3300 XL NSv probe
27 3300 XL NSv probe, with approval option
28 3300 XL 8mm, with approval option
29 3300 XL 11mm
30 3300 XL 11mm, with approval option
31 3300 XL NSv with  connector protector
32 3300 XL NSv with  connector protector and  approval option
33 3300 XL 8mm with  connector protector
34 3300 XL 8mm with  connector protector and  approval option
35 3300 XL 11mm with  connector protector
36 3300 XL 11mm with  connector protector and  approval option
37 3300 XL 8mm ETR, with approval option
B: Probe Cable Length
00 Probe cable not required
05 20 in (0.5 m)
10 39 in (1.0 m)
12 12.0 ft (3.6 m)
18 18.0 ft (3.6 m)
24 24.0 ft (7.3 m)
30 24.0 ft (7.3 m)
36 36.0 ft (10.9 m)
C: Standoff Adapter (Option C Dimension)
15 Minimum length 1.5 in (38 mm)
75 Maximum length 7.5 in  (191 mm)
D: Probe Penetration (Option D Dimension)
010 Minimum length 1.0 in (25.4 mm)
E: Fittings
00 Without fittings
01 One 3/4-14 NPT explosion-proof fitting One 3/4-14 NPT plug
02 Two 3/4-14 NPT explosion-proof fittings

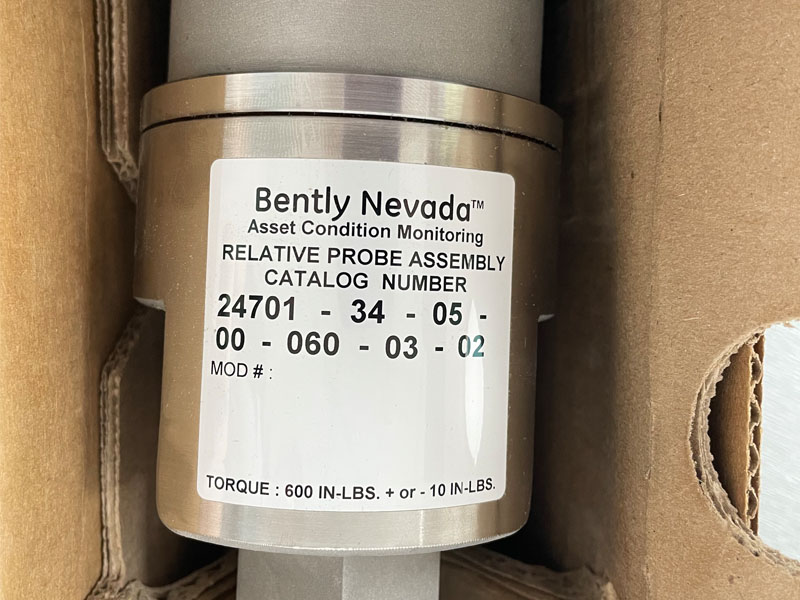

24701-34-05-00-060-03-02

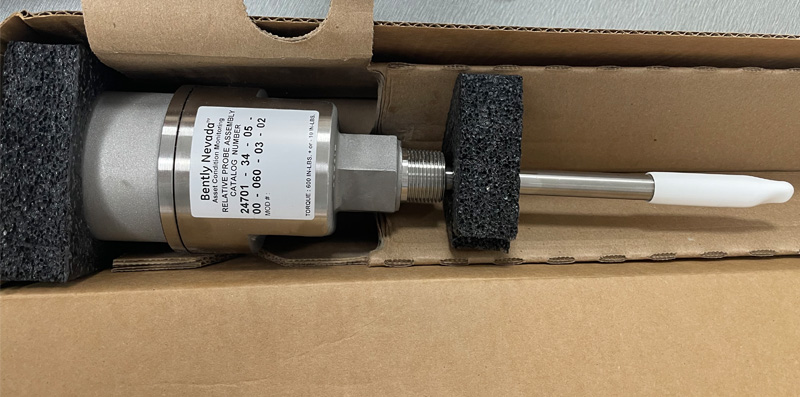

Bently Nevada 24701-34-05-00-060-03-02

Bently Nevada 24701-34-05-00-060-03-02
