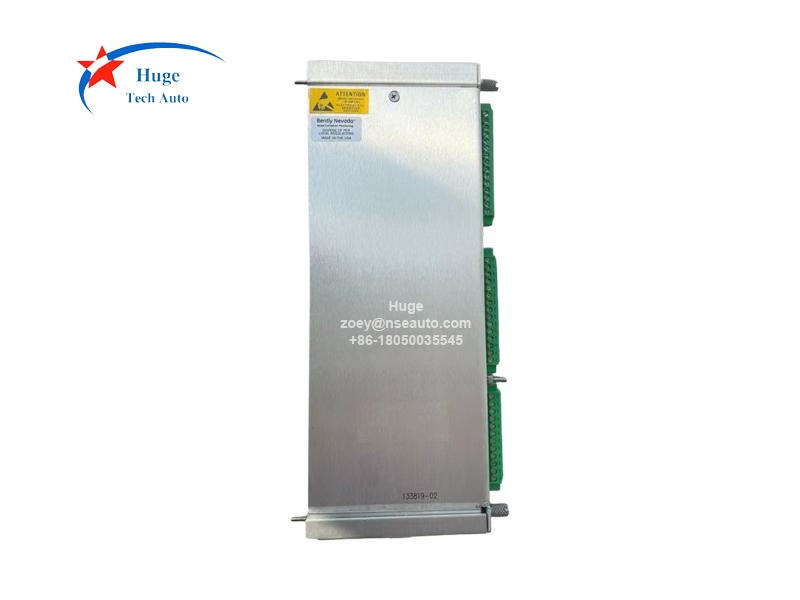

BENTLY NEVADA 3500/61 133819-02 RTD/TC Non-Isolated I/O Module Internal Terminations
Description:
133819-02 is Bently Nevada 3500/61 I/O Module. As a RTD/TC Non-Isolated I/O Module Internal Terminations, 133819-02 installed behind the 3500/61 main card 163179-02.
3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels.

Ordering Information:
3500/61-AA-BB
A: I/O Module Type
0 1  RTD/TC Non-isolated I/O Module Internal Terminations
0 2  RTD/TC Non-isolated I/O Module External Terminations
0 3  TC Isolated I/O Module Internal Terminations
0 4  TC Isolated I/O Module External Terminations
0 5  RTD/TC Non-isolated I/O Module with Internal Barriers
B: Agency Approval Option
0 0  None
0 1  CSA/NRTL/C (Class 1, Div 2)
0 2  ATEX/ IECEx/ CSA (Class 1, Zone2)

3500/61 -Specific spare parts
163179-02  3500/61 Temperature Monitor (with recorders)
133819-02  3500/61 RTD/TC Non-Isolated I/O Module Internal Terminations.
133827-02  3500/61 RTD/TC Non-Isolated I/O Module External Terminations.
133835-02  3500/61 TC Isolated I/O Module Internal Terminations.
133843-02  3500/61 TC Isolated I/O Module External Terminations.

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
