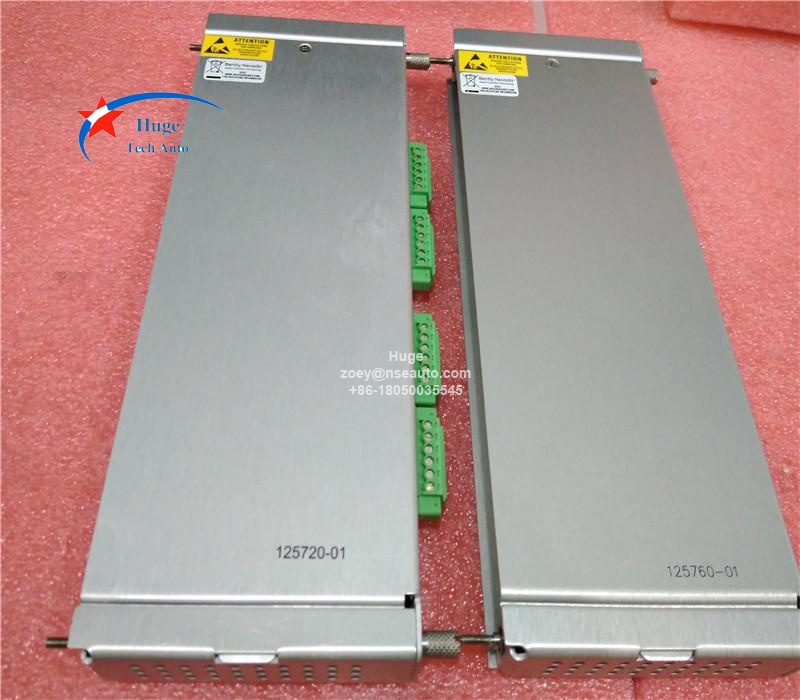

Bently Nevada 3500/20 125760-01 Data Manager I/O Module
Description:
125760-01 is BentlyNevada 3500/20 Data Manager I/O Module. It is 1 full-height rear slot. The Rack Interface Module uses two I/O module types, the Rack Interface I/O Module and the Data Manager I/O Module. These I/O modules let you connect a 3500 host computer and Communication Processors (TDIX or DDIX) to a 3500 rack and let you daisy chain racks together.

This section describes how to use the connectors on the I/O modules, lists what cables to use, and shows the pin outs of the cables.

Only one Rack Interface I/O Module can be installed at a time behind the Rack Interface Module (in a Rack Mount or a Panel Mount rack) or above the Rack Interface Module (in a Bulkhead rack).
Also, one Data Manager I/O Module may be installed between the Power Input Modules and the Rack Interface I/O Module (in a Rack Mount or a Panel Mount rack) or above the Power Supplies between the Power Input Modules and the Rack Interface I/O Module (in a Bulkhead rack).

125760-01 is used to connect two Bently Nevada Communication Processors to the 3500 rack.
The Data Manager I/O Module must be installed behind the Power Supplies between the Power Input Modules and the Rack Interface I/O Module (in a Rack Mount or Panel Mount rack) or above the Power Supplies between the Power Input Modules and the Rack Interface I/O Module (in a Bulkhead rack). The function of the Data Manager I/O module is to connect the 3500 rack to TDIX or DDIX Communication Processors. Each port can connect up to 24 channels, from the 3500 rack to the Communication Processor.

Dimensions:241.3 mm x 24.4 mm x 99.1 mm
Ordering Information:
125744-02   Standard Rack Interface Module
125744-01   TMR Rack Interface Module
135031-01   RIM I/O Module with Modem Interface
125768-01   RIM I/O Module with RS232/RS422 Interface
125760-01   Data Manager I/O Module
