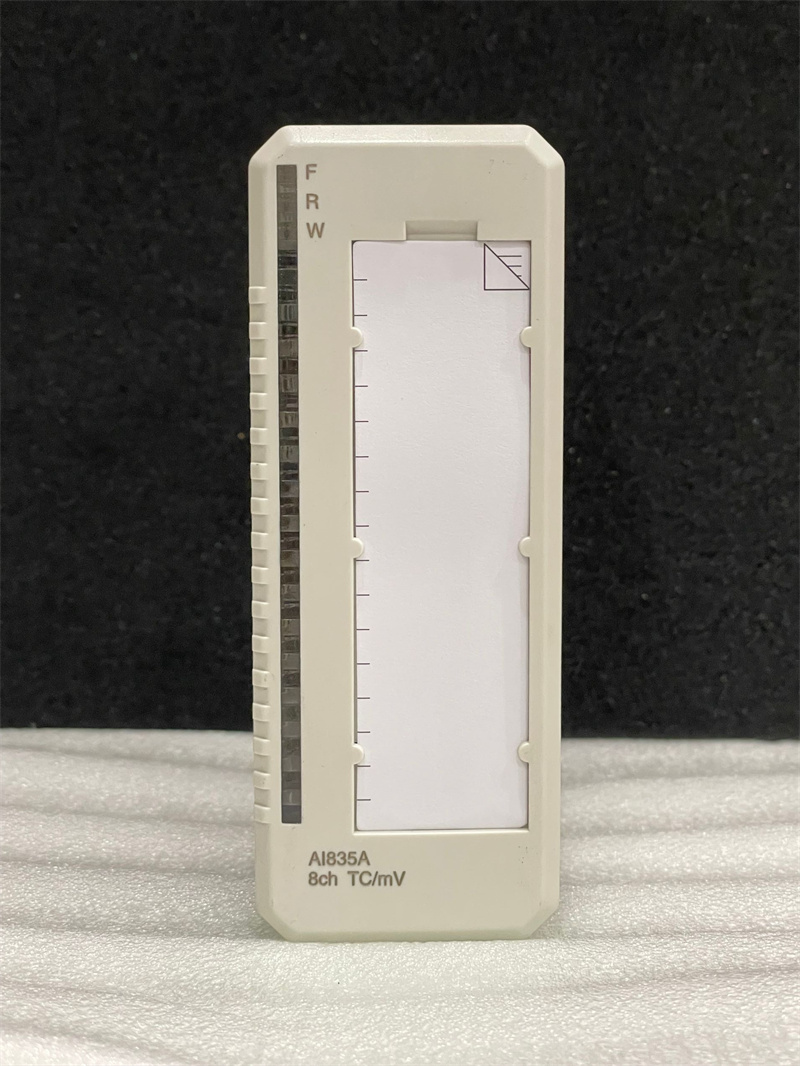

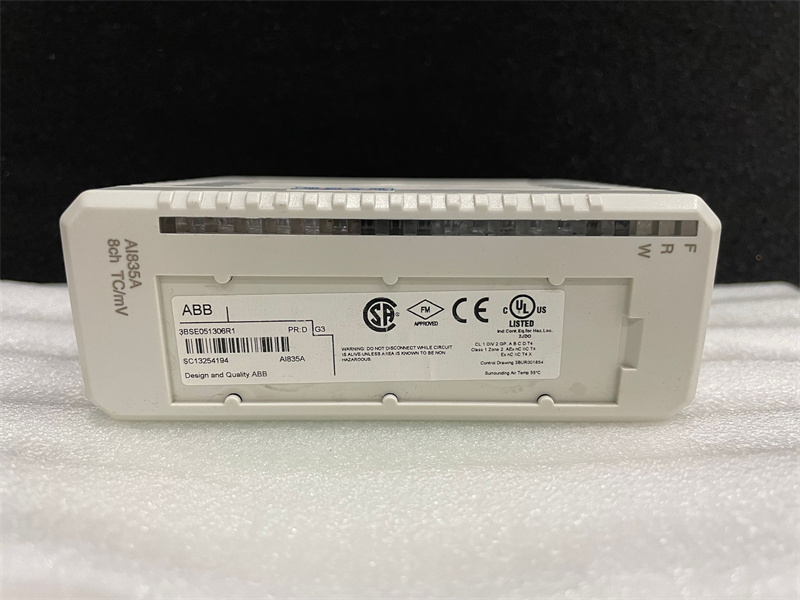

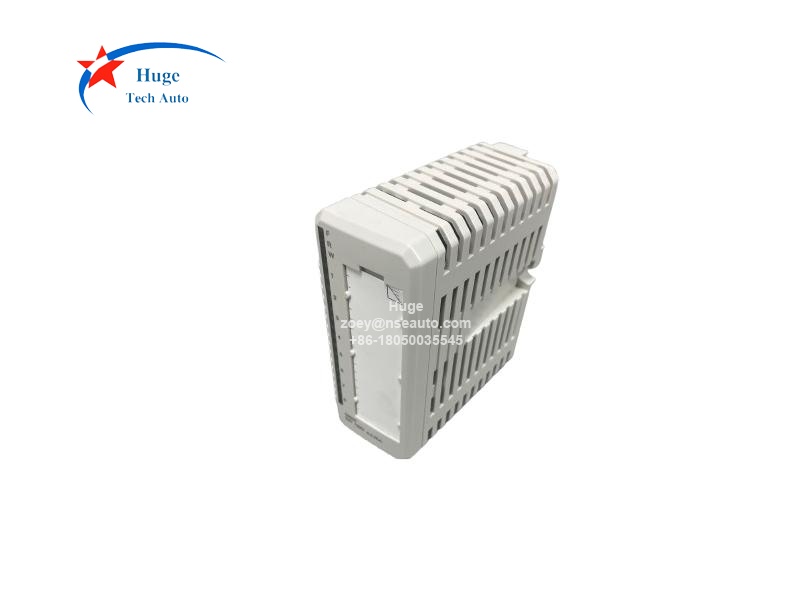

ABB AI835A 3BSE051306R1 Analog input 8 channels
Description:
AI835A is ABB 800xA control system analog input module, it is the successor of AI835. The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U. Use Module Termination Unit TU810, TU812, TU814, TU818, TU830, TU833

One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.

Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.

Features:
8 differential input channels for thermocouple/mV.
Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD)
Variety of thermocouples with the following characteristics: B, C, E, J, K, N, R, S and T for AI835A also D, L and U
15 Bit resolution (A/D)
Inputs are monitored for wire-break open-circuit

Related items:
AI810
AI815
AI820
AI825
AI830A
AI835
