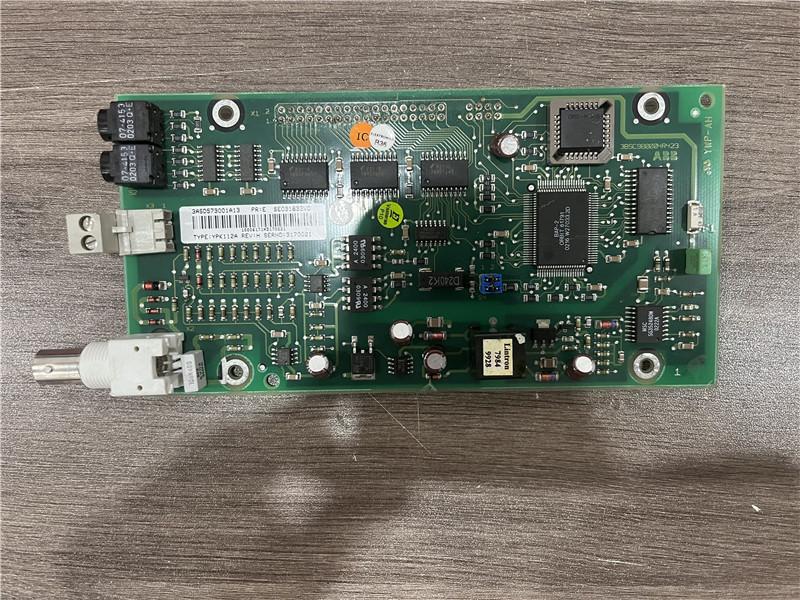

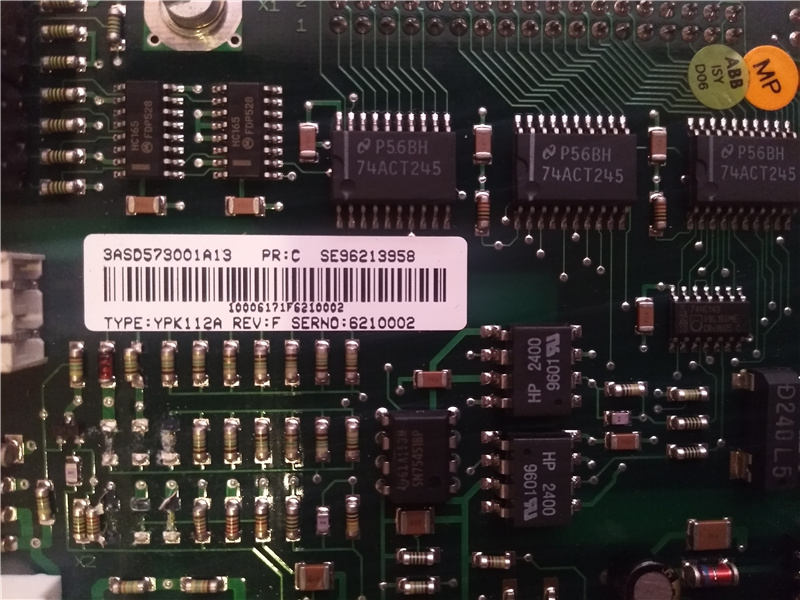

ABB YPK112A 3ASD573001A13 Communication Board

Description:

The I/O connections of the DCV 700 are in the Application Controller (APC) and in the Digital Drive
Controller (DDC).
The Application Controller APC includes:
• 4 digital inputs
• 2 digital outputsB
• 2 analogue inputs
• 1 voltage reference output

The I/O connections in the Drive Controller DDC are used for safety and other drive specific functions like emergency stop and motor temperature measurement:
• 3 digital inputs
• 4 digital outputs
• 5 analogue inputs
• 2 analogue outputs
• 1 pulse encoder input
• 1 emergency stop input
• 1 emergency stop output
• 1 current source
• 1 voltage reference output
• 1 actual armature current output
