ABB TU837V1 3BSE013238R1 Extended MTU, 250V, Fused
ABB TU837V1 3BSE013238R1 Extended MTU, 250V, Fused
Brand:
ABB DCSItem NO.:
ABB TU837V1 3BSE0132Order(MOQ):
1Payment:
T/TMarket Price:
999Price Range:
6 - 10Price Range:
1 - 5Product Origin:
SwedenColor:
METEL COLORShipping Port:
XIAMENLead Time:
IN STOCKWeight:
0.26

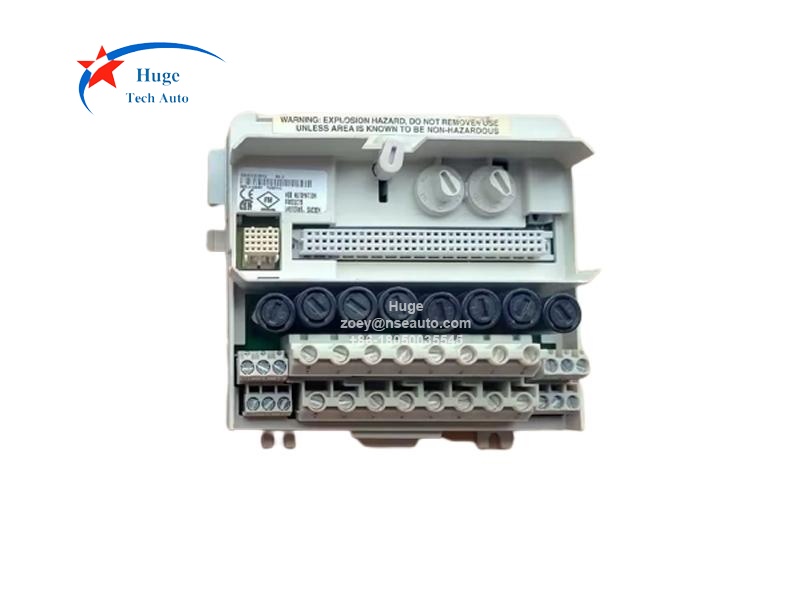

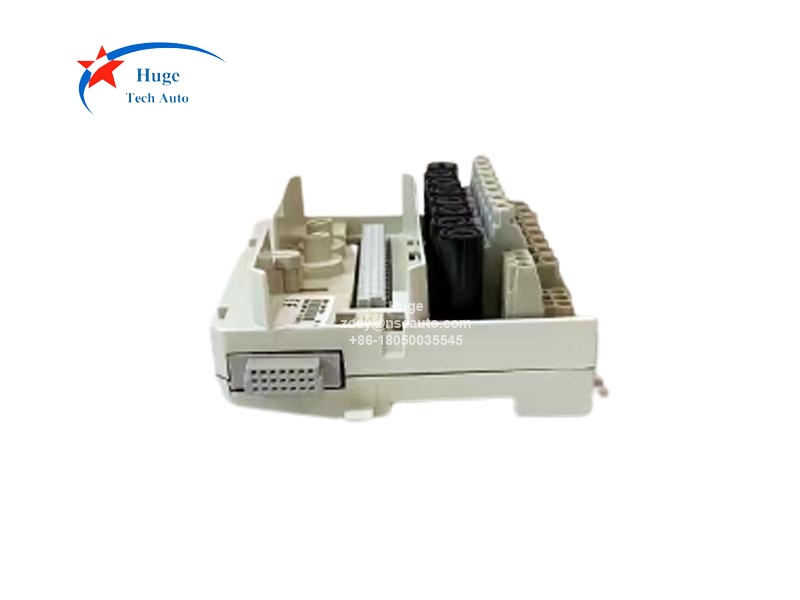

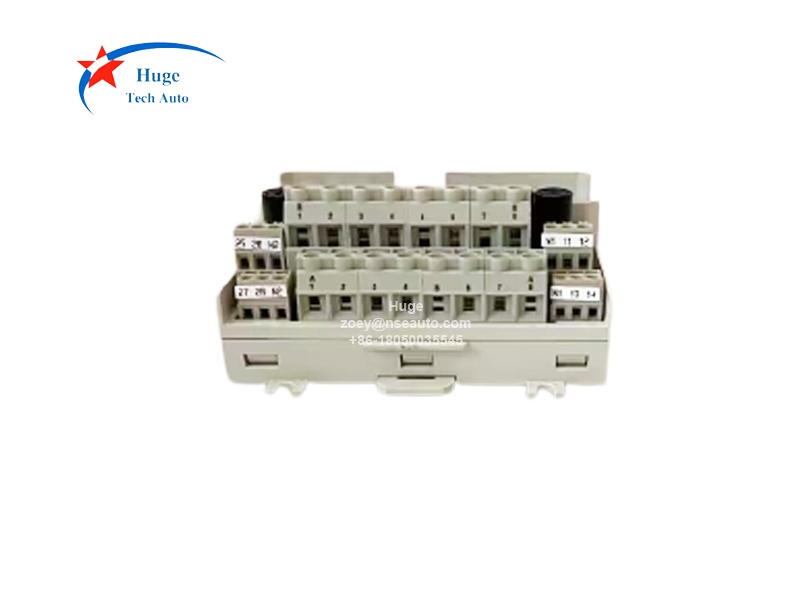

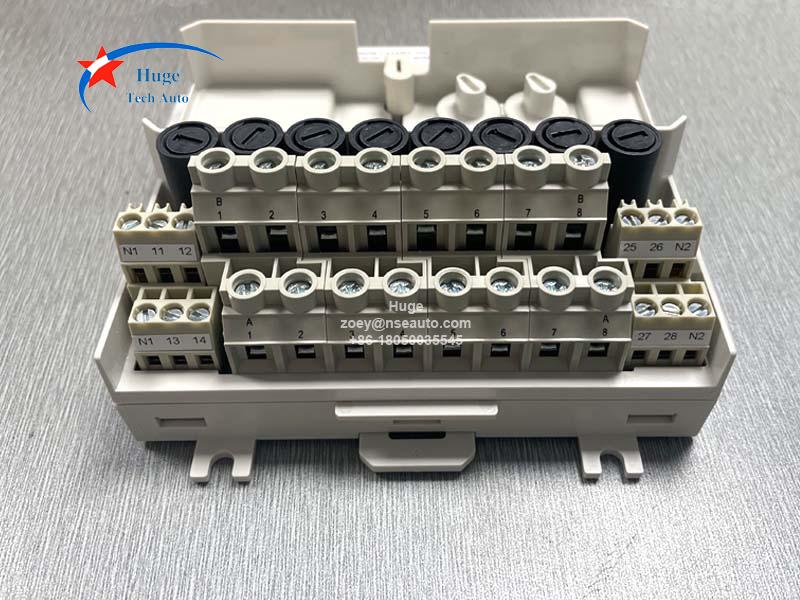

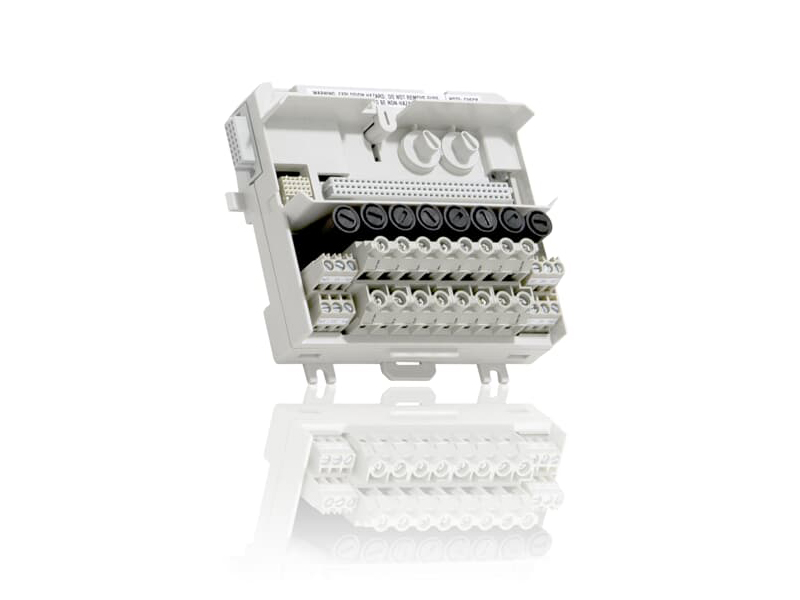

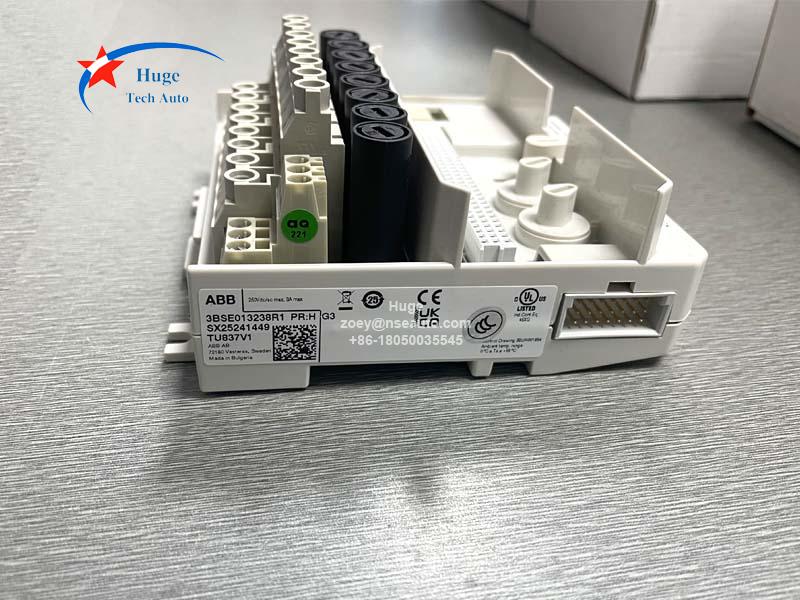

ABB TU837V1 3BSE013238R1 Extended Termination Units
Description:
TU837V1 is part of ABB 800xA control system I/O module. It is Extended Module Termination Unit 8x1 fused isol. signals, 8x1 L terminals, 2x6 N terminals, which can have up to 8 I/O channels. The maximum rated voltage is 250 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. The latch can be released with a screwdriver. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
