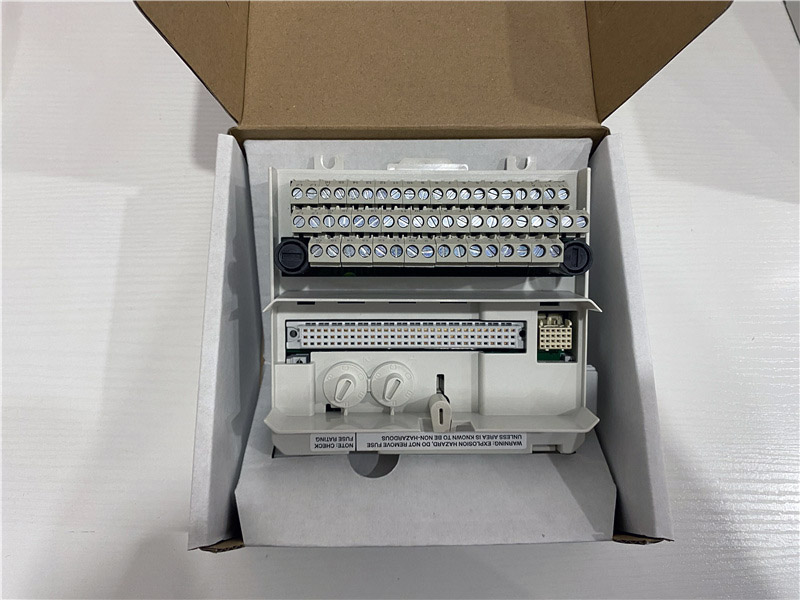

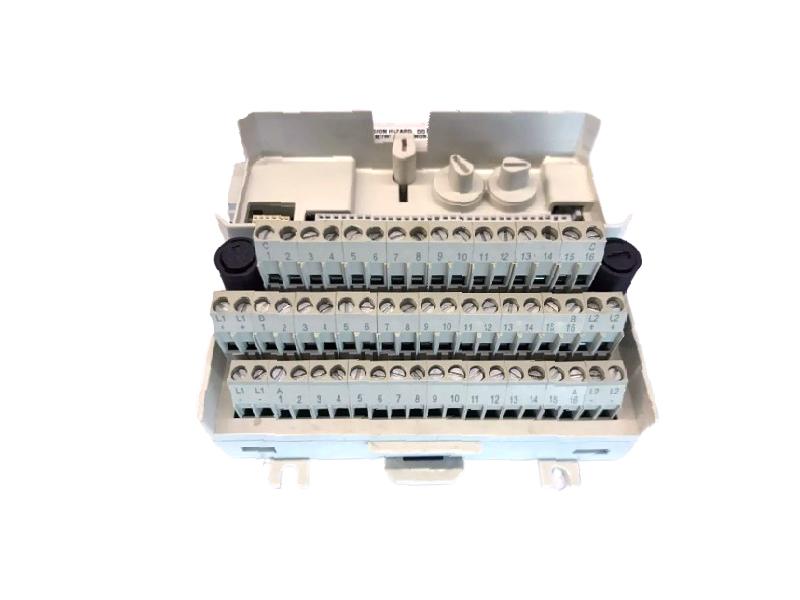

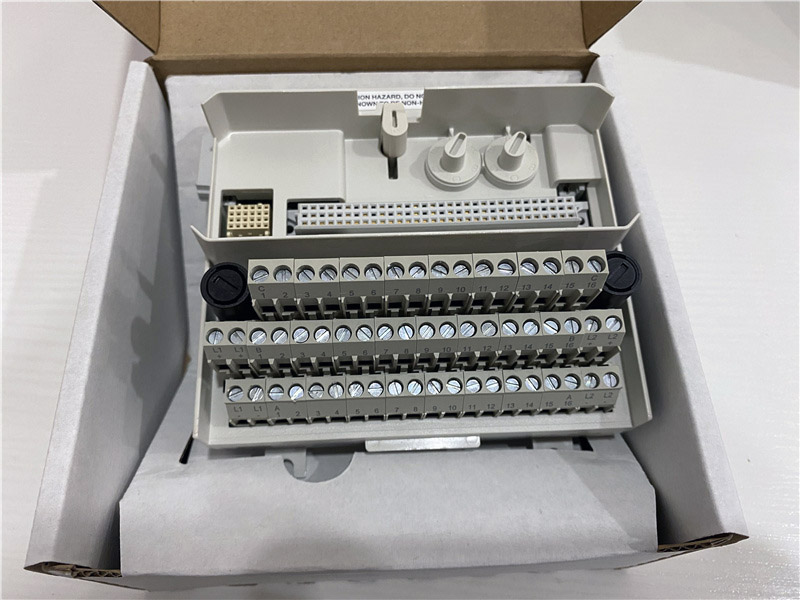

ABB TU830V1 3BSE013234R1 Extended Module Termination Unit
Description:
TU830V1 is designed as ABB 800xA control system module. Can be used with AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840.

The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Features and benefits:
· Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
· Up to 16 channels of field signals and process power connections.
· Connections to ModuleBus and I/O modules.
· Mechanical keying prevents insertion of the wrong I/O module.
· Latching device to DIN rail for grounding.
· DIN rail mounting.
Warranty: 12 months.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheet
