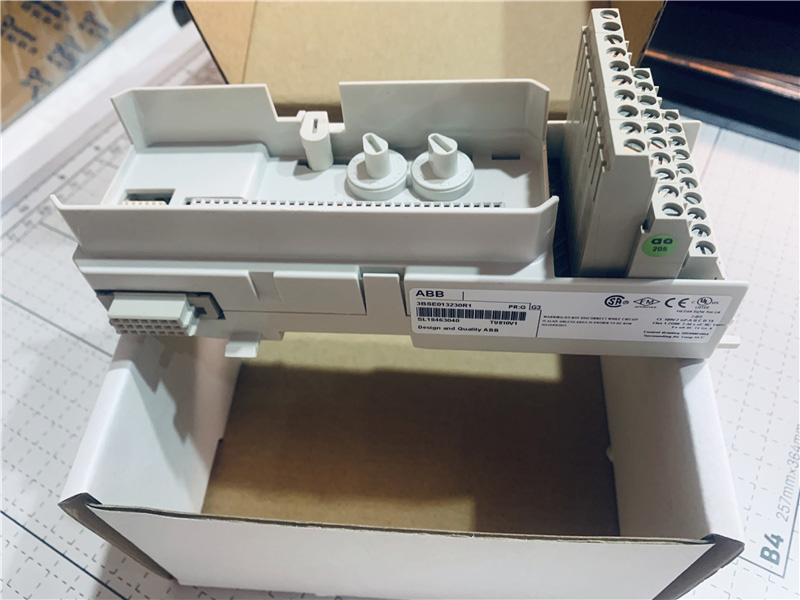

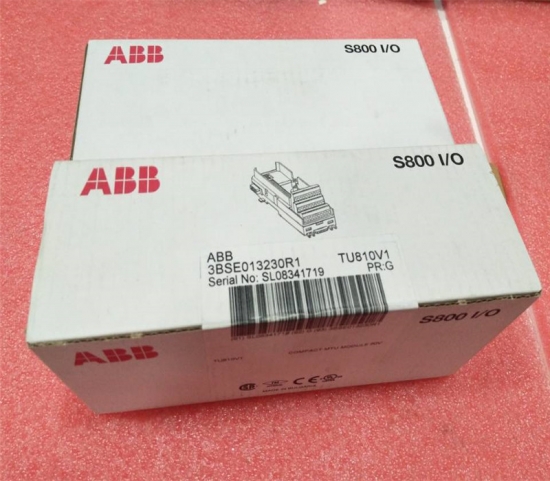

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit
Description:
TU810V1 3BSE013230R1 is belong to ABB 800xA control system, it is a 16 channels Compact Module Termination Unit. TU810V1 can be used with I/O module, such as AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, DP840.

The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Features and benefits
Compact installation of I/O modules using one-wire connections.
Up to 16 channels of field signals and process power connections.
Connections to ModuleBus and I/O modules.
Mechanical keying prevents insertion of the wrong I/O module.
Latching device to DIN rail for grounding.
DIN rail mounting.
Maximum current per I/O channel: 2A
Maximum current process connection: 5A
Acceptable wire sizes: Solid: 0.2 - 4 mm² Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Dielectric test voltage: 500 V a.c.
Dimensions:
64x64x470
Weight: 0.17kg
