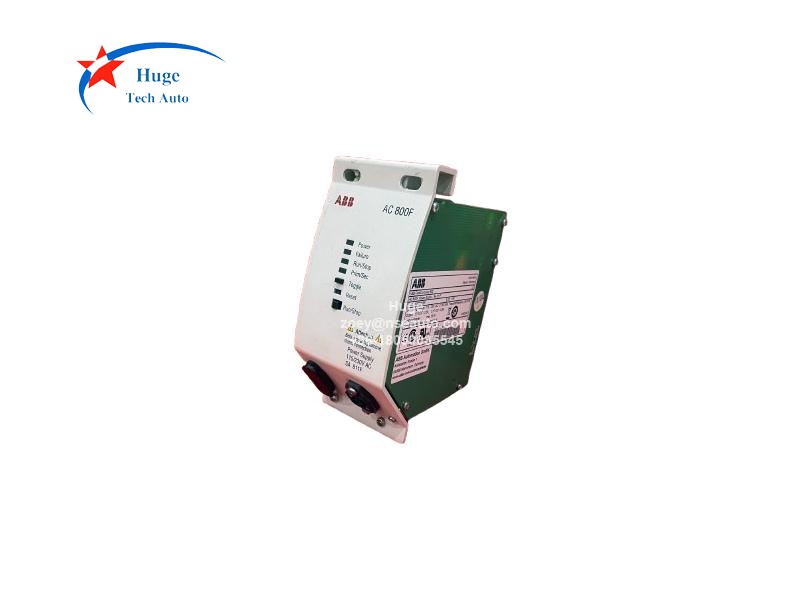

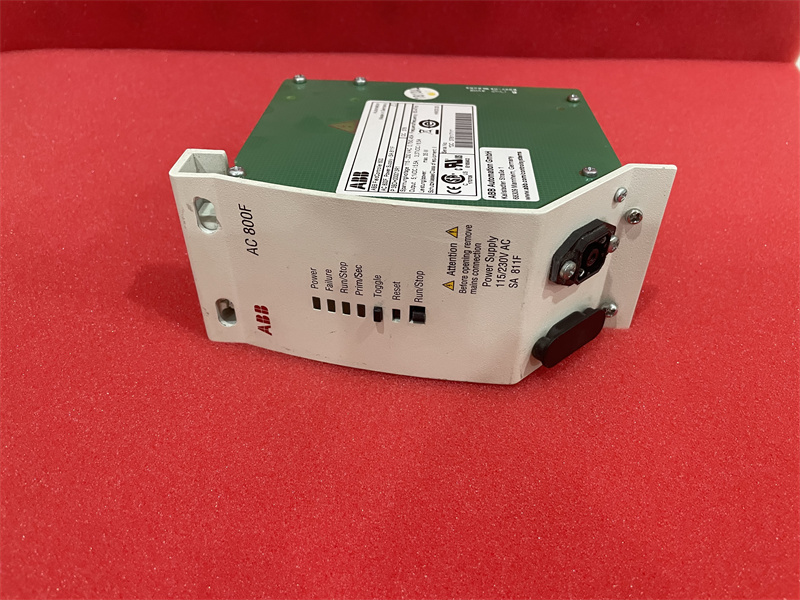

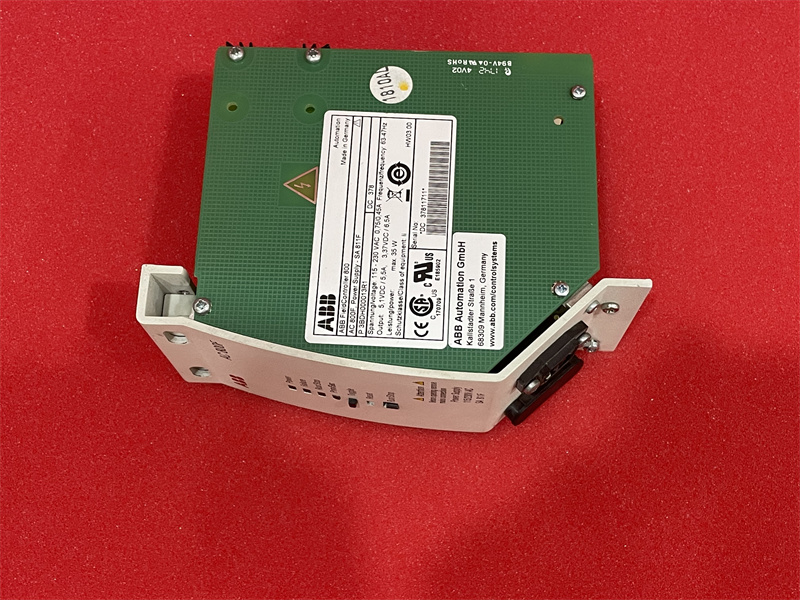

ABB SA811F 3BDH000013R1 Power Supply 115 / 230 VAC
Description：
SA811F is ABB Freelance system Power Supply, it is used together with PM802F or PM803F.
The AC 800F modules are supplied with 5 VDC / 5.5 A and 3.3 VDC / 6.5 A by SA 811F. The
power supply has open-circuit, overload and sustained short-circuit protection. The electronically
controlled output voltage provides high stability and low residual ripple.
In case of power loss ≥ 5 ms, the power supply module generates a power-fail signal. This signal
is used by the CPU module to shut down operations and enter to a safe state of connected
outputs of Remote I/Os. This is required for a controlled restart of the system and the user
application when power is restored. The output voltage remains within its tolerance limits for
at least another 15 ms. Altogether a mains voltage drop of 20 ms will be managed.
Features:
· Input voltage 115 - 230 VAC (self adjusting), output is electrically isolated
· Power supply outputs provide: 5 VDC / 5.5 A and 3.3 VDC / 6.5 A
· Enhanced power-fail prediction and shutdown procedures
· LED indication for power supply status and operating status of the AC 800F
· Short circuit proof, current limited
· 20 ms backup energy for use in the event of primary power failure, according to NAMUR
· G3 compliant Z variant available (see also Chapter
Specifications:
Input voltage: Alternating current 115 - 230 VAC, Permissible range 90 - 260 VAC, Frequency: 50 - 60 Hz (47 - 63 Hz)
Input current at nominal load: 230 VAC: 275 mA, 115 VAC: 541 mA
Rated input power: 63 VA
Backup energy for the event of power failure: > 20 ms
Total output power: Max. 35 W

Warranty: 12 months.
