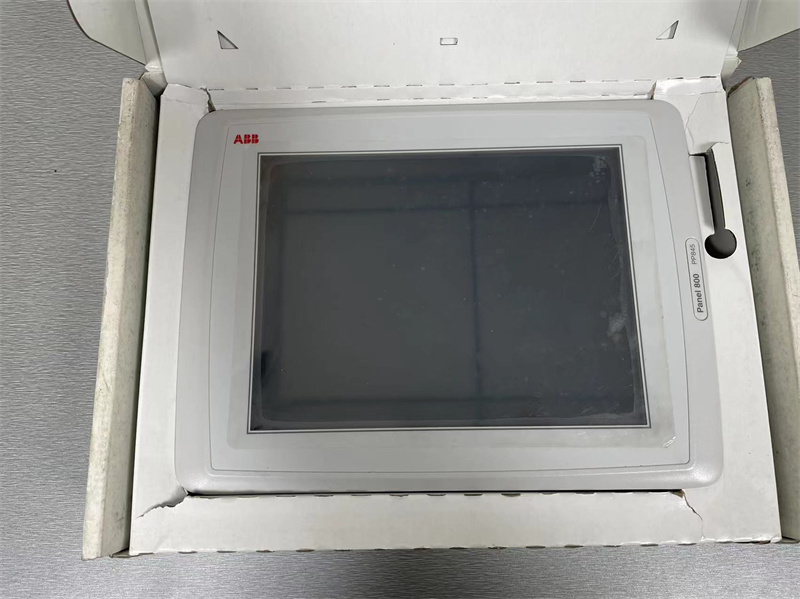

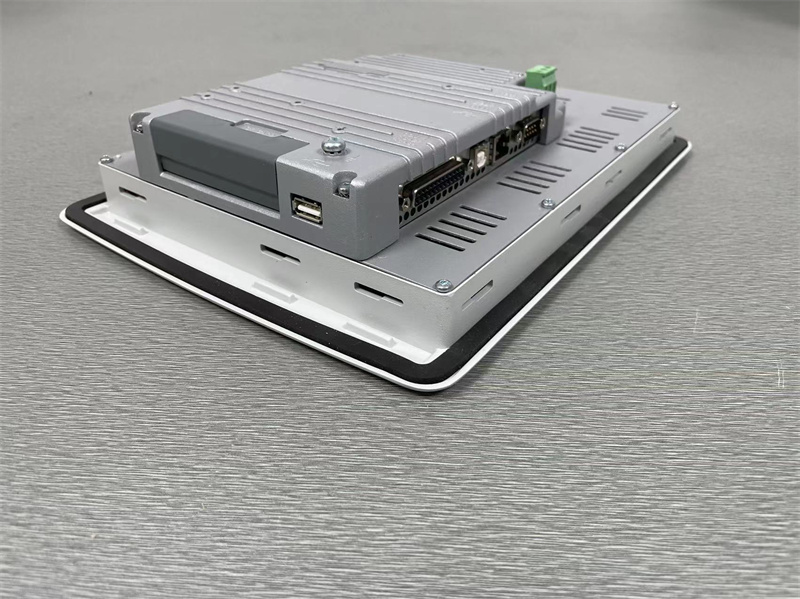

ABB PP845A 3BSE042235R2 10,4” Touch panel.
Description:
PP845A 3BSE042235R2 is designed as ABB 10.4" Touch Panel. PP845A belong to ABB panel 800 series.
The Panel 800 operator panel is developed to satisfy the demands of humanmachine communication. Built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm and recipe handling are included.
The operator panel can be connected to many types of automation equipment, such as PLCs, servos or drives. In this manual the expression “the controller“ is used as a general term for the connected equipment.

Specifications:
Dimensions: 302 x 228 x 60 mm
Weight: 2 kg
Display backlight: CCFL/LED backlight with dimming function
CPU: 316 or 416 MHz RISC CPU (Intel Xscale)
Memory, flash: 32 MB (Intel StrataFlash)
Memory, RAM: 64 MB
Flash memory for application: 12 MB
Power supply: +24 C14 20-30 V
Power consumption (normal/max): 0,5 A / 1 A
Ambient temperature: 0 ° to +50 °C
Relative humidity: 5 - 85 % non-condensing
Housing material: Powder-coated aluminium
Front side material: Autotex F250 / F157 (keyboard), (PP865S in Stainless Steel 316 / 1.4401)
Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.
Ethernet: Shielded RJ 45
USB: Host type A (USB 1.1), max output current 500mA Device type B (USB 1.1)
Real time clock battery: CR2450 (UL and cUL: Sanyo or Panasonic) Minimum lifetime: 3 years
Power consumption at rated voltage: Normal: 0.5 A, Maximum: 1.0 A

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
