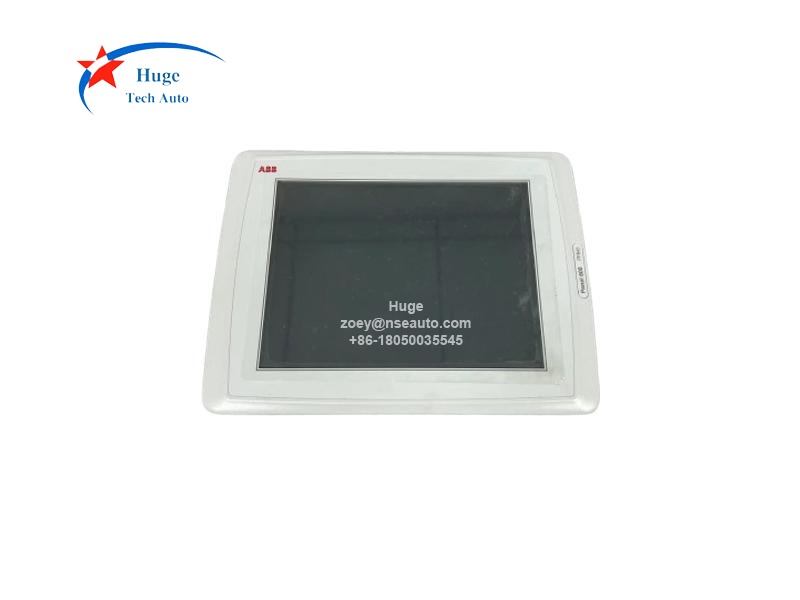

ABB PP845 3BSE042235R1 10.4" Touch Panel
Description:
PP845 3BSE042235R1 is designed as ABB 10.4" Touch Panel. PP845 is one of ABB panel 800 family members.

The Panel 800 operator panel is developed to satisfy the demands of humanmachine communication. Built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm and recipe handling are included. The operator panel work, for the most part, in an object-oriented way, making it easy to understand and use. The configuration operation of the panel is made in a personal computer, using the configuration tool Panel Builder 800. The project is then transferred and stored in the operator panel.

Specifications:
Front panel dimensions: 302 x 228 x 6 mm
Weight: 2.1 kg
Keyboard material/ Front panel: Touch screen: Polyester on glass *, 1 million finger touch operations. Overlay: Autotex F157/F207 *

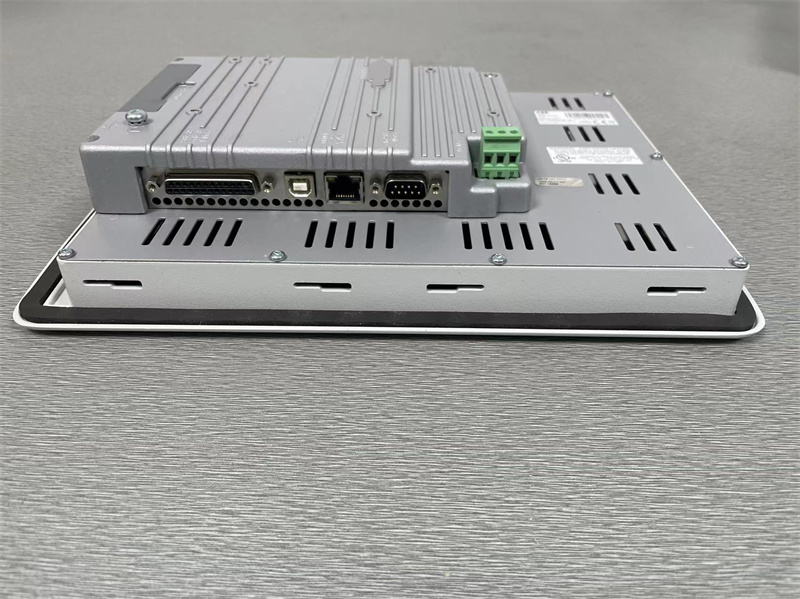

Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.
Ethernet: Shielded RJ 45
USB: Host type A (USB 1.1), max output current 500mA Device type B (USB 1.1)
Real time clock battery: CR2450 (UL and cUL: Sanyo or Panasonic) Minimum lifetime: 3 years
Power consumption at rated voltage: Normal: 0.5 A, Maximum: 1.0 A
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
