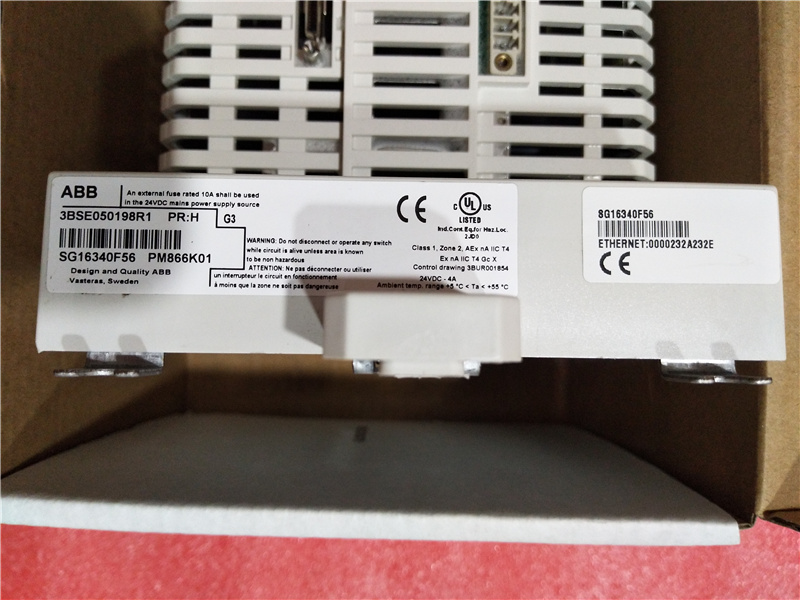

ABB PM866K01 3BSE050198R1 Processor Unit
Description:
ABB 3BSE050198R1 is one of AC800M family Processor Unit.

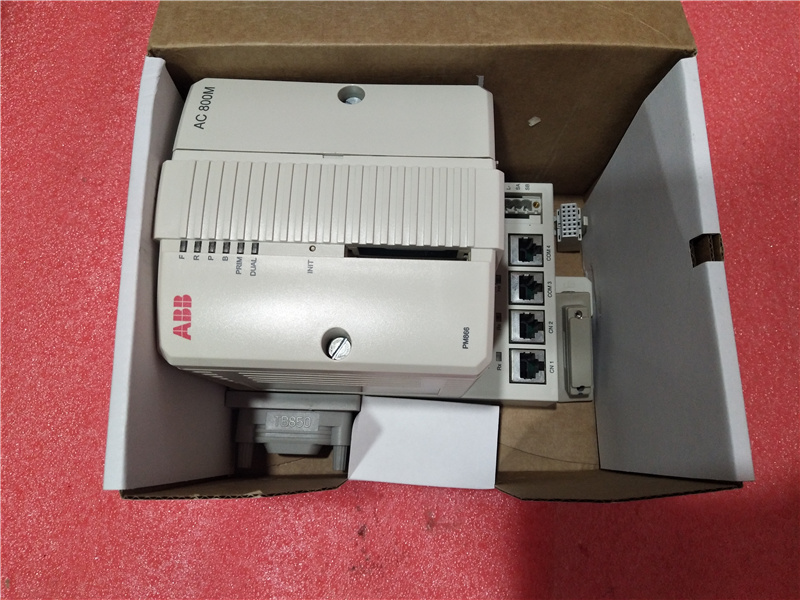

Package including:
-PM866, CPU, no license included
-TP830, Baseplate, width =115mm
-TB850, CEX-bus terminator
-TB807, ModuleBus terminator
-TB852, RCU-Link terminator
-Battery for memory backup (4943013-6)
Key Features
•MPC866 Microprocessor running at 133 MHz.
•64 MB RAM with internal or external battery backup facility.
•12 x S800 I/O units can be connected to the electrical ModuleBus.
•Four on-board communication ports:
–CN1 + CN2, Ethernet ports (IEEE 802.3, 10BaseT)
–COM3, serial port (RS-232C) with modem support
–COM4, serial port (RS-232C) for service tool
•Basic communication is extendable by using additional communication interface units.
•Redundancy Control Link, for use in redundancy configuration.
•Compact Flash interface which supports loading of application and cold retain data storage.
Warranty: 12 months.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
