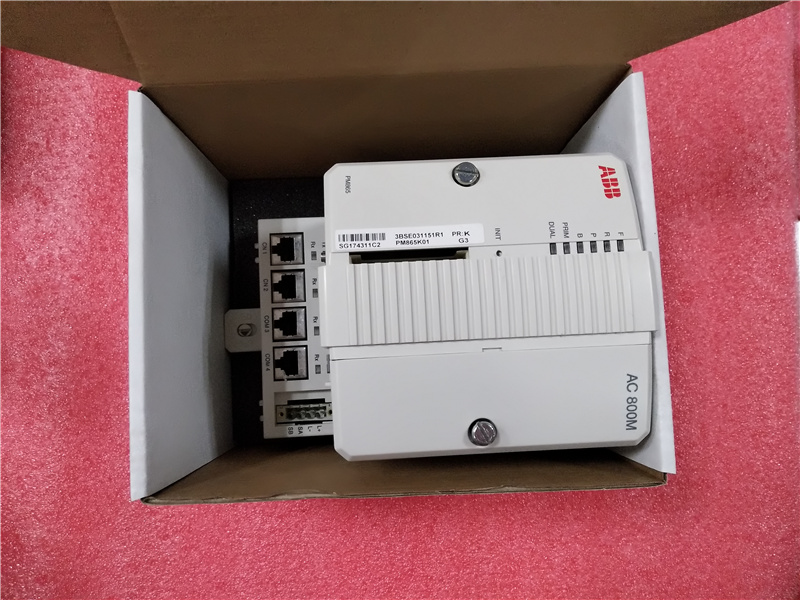

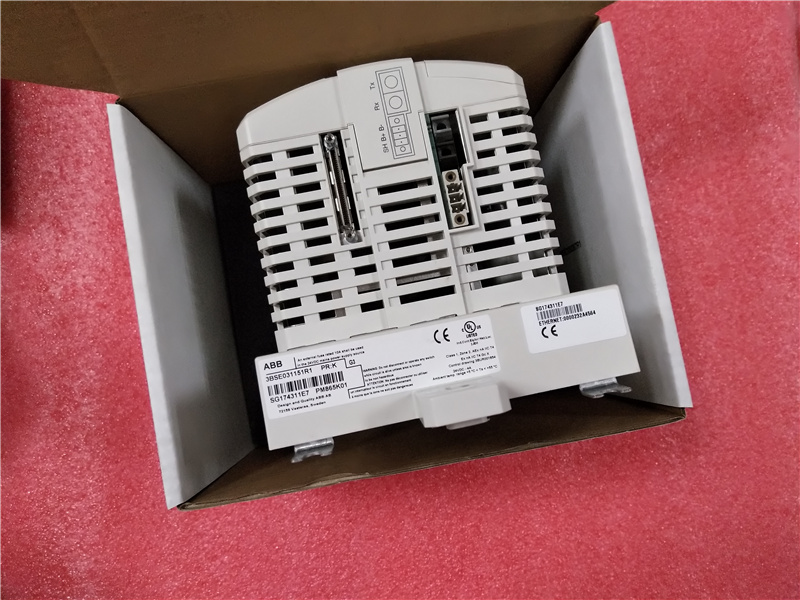

ABB PM865K01 3BSE031151R1 Processor Unit Kit
Description:
The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INITpush button, and a CompactFlash interface.

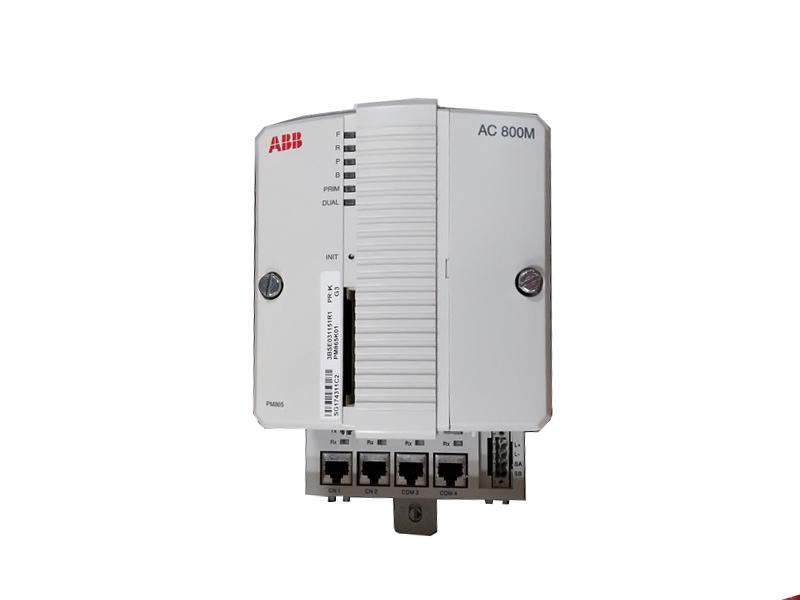

The base plate of the PM865 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control  Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS232C portwith modemcontrol signals,whereas the other port (COM4) is isolated and used for the connection of a configuration
tool. The controller supports CPU redundancyfor higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
The high integrityfunctionalityis enabled bythe addition of a SM81x module and the SIL certified software. This enables non-critical control schemes to be upgraded to SIL certified schemes by the addition of a plug-in SM81x module, plus selection of the appropriate software. The AC 800MHigh-Integrity also offers IEC 61508 and TÜVcertified control environmentfor combining safety and business critical process control in one controller unitwithout sacrificing the safetyintegrity.
High integrity, certified for SIL3. Requires configuration according to Safety Manual. Local organizations must comply with the Qualifications to secure successful sales of ABB safety systems, to order safety equipment.
96MHz and 32MB.
Features and benefits
AC 800MHigh SIL 2 certified using PM865/SM810/SM811 or PM867/SM812
AC 800MHigh SIL 3 certified using PM865/SM811 or PM867/SM812
Supports S800 I/O High Integrity(PM865, PM866A and PM891)
The controller can be configuredwith 800xA control builder
The controller has full EMC certification
TÜV Certified SIL 2 and SIL 3
Built-in redundant Ethernet Communication ports
Package including:
- PM865, Safety CPU
- TP830, Baseplate
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- TB852, RCU-Link terminator
- Battery for memory backup (4943013-6)
- No license included.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
