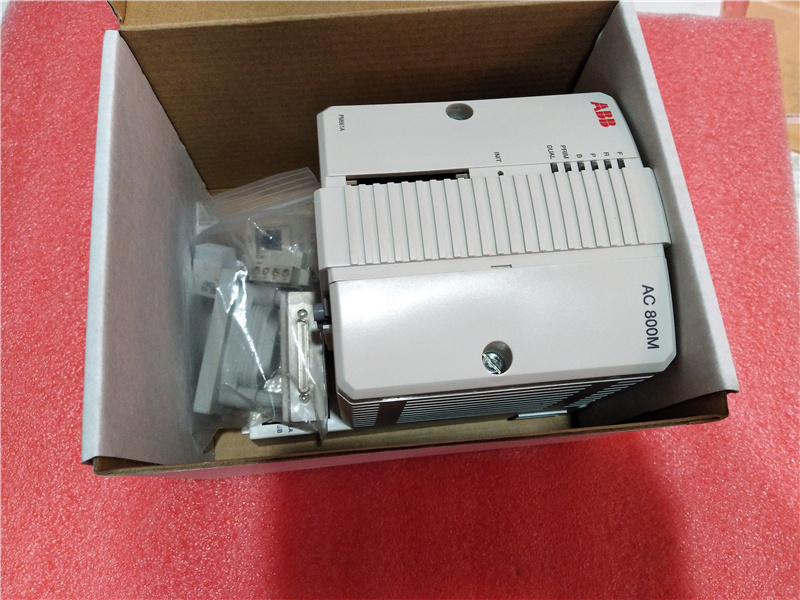

ABB PM861K01 3BSE018105R1 Processor Unit Kit
Description:
PM861K01 is part of ABB 800xA control system.
MPC860 Microprocessor running at48 MHz.
16 MB RAM with internal or external battery back-up facility.
12 x S800 I/O units can be connected to the electrical ModuleBus.
Four on-board communication ports:
–CN1 + CN2, Ethernet ports (IEEE 802.3, 10BaseT)
–COM3, serial port (RS-232C) with modem support
–COM4, serial port (RS-232C) for service tool
Basic communication is extendable by using additional communication interface units.
Redundancy Control Link, for use in redundancy configuration.
Compact Flash interface which supports loading of application and cold retain data storage.
Item
Value
Memory
2 MB flash PROM
(firmware storage).
16 MB of SDRAM.
Power
Dissipation
W typical 11 W
typical (incl. full supply to ModuleBus and CEXBus
Current
Consumption
250 mA typical
(430 mA max.) (excl. supply of ModuleBus and CEX-Bus
Power Input
Connector
Four pin, screw
connector L+, L–, SA and SB.
Power Supply
Requirements
Inputs
designated L+ and L– 24 V nominal, variation between 19.2 V DC and 30 V DC.
Redundant Power
Supply Status Inputs
Inputs
designated SA, SB
• Max
input voltage 30 V
• Min.
input voltage for high level 15 V
• Max
input voltage for low level 8 V
These inputs are
status inputs. The threshold levels are logical “0” or “1” input limits, not
power fail limits.
Power Reservoir
The processor
unit has an internal 5ms power reservoir, sufficient for the CPU to make a
controlled power down.
Protection
Rating
IP20 according
to EN60529, IEC 529.
