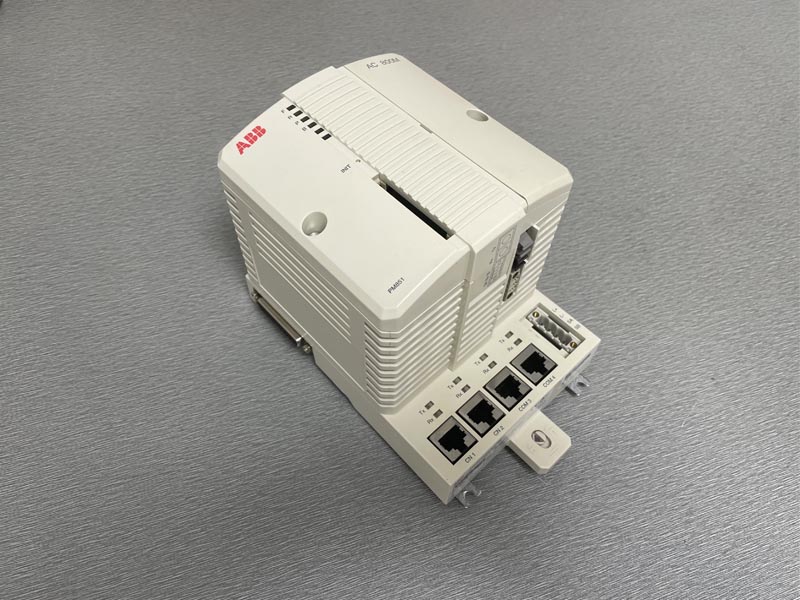

ABB PM851K01 3BSE018168R1 Processor Unit Kit
Description:
PM851K01 is designed as ABB 800xA control system processor unit.
PM851K01 including:
-PM851, CPU
-TP830, Baseplate, width=115 mm
-TB850, CEX-bus terminator
-TB807, ModuleBus terminator
-Battery for memory backup 4943013-6
-4 pos Power Plug 3BSC840088R4
Key Features
• MPC860 Microprocessor running at 48 MHz.
• 8 MB RAM with internal or external battery back-up facility.
• 12 x S800 I/O units can be connected to the electrical ModuleBus.
• Four on-board communication ports:– CN1 + CN2, Ethernet ports  (IEEE 802.3, 10BaseT) – COM3, serial port (RS-232C) with modem support– COM4, serial port (RS-232C) for service tool
• Basic communication is extendable by using additional communication interface units.

PM851K01 is discontinued, the successor is PM851AK01.

AC 800M is a hardware platform comprising individual hardware units, which can be configured and programmed to perform multiple functions. Once configured and programmed, the AC 800M effectively becomes the AC 800M or AC 800M HI controller.

The AC 800M Controller provides a cost-effective, low-maintenance solution for applications ranging from small Programmable Logic Controller (PLC) to advanced Distributed Control Systems (DCS) control applications and combined DCS, and High Integrity systems control applications.
