ABB PM803F 3BDH000530R1 Base Unit

ABB PM803F 3BDH000530R1 Base Unit 16 MB, battery-buffered RAM

  • Brand:

    ABB DCS
  • Item NO.:

    ABB PM803F
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    999
  • Price Range:

    1 - 5
  • Product Origin:

    MALTA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Weight:

    1.6
Product Detail

ABB PM803F 3BDH000530R1 Base Unit 16 MB
Description:

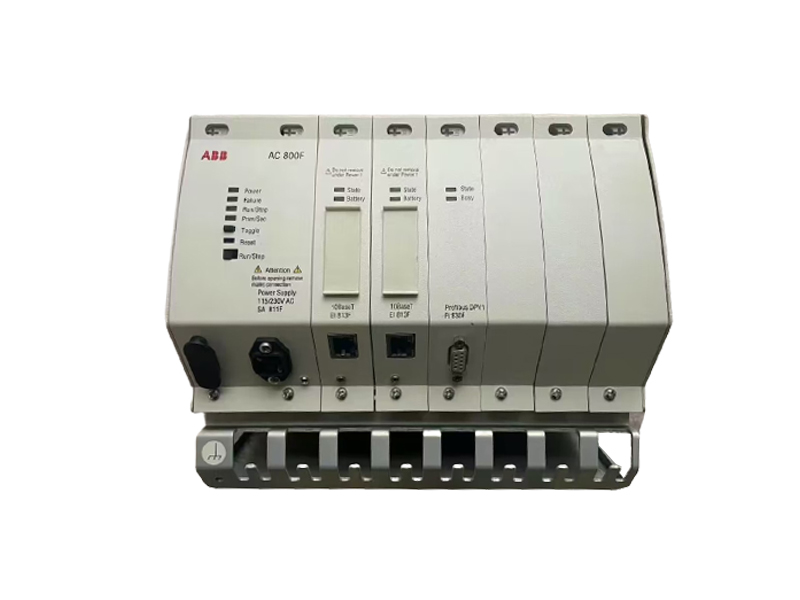

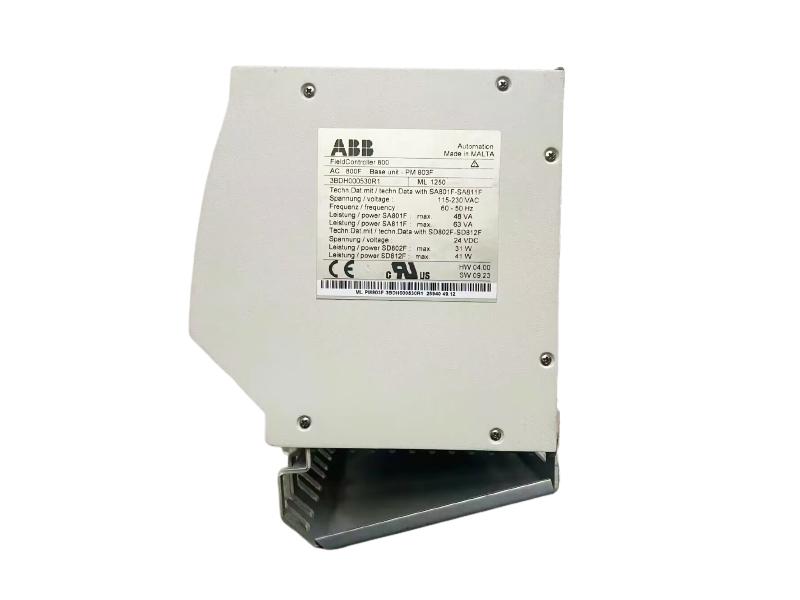

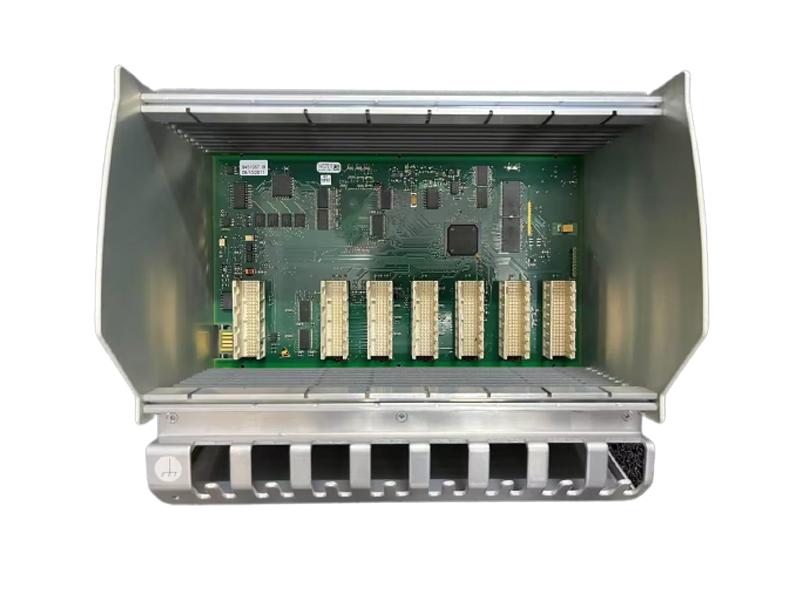

The PM 803F Base Unit is part of ABB AC 800F Freelance control system. It consists of a housing and a CPU main board. Various modules can be equipped with it.
This unit comes without operating system. The operating system has to be loaded during software installation.
With special Contact Ledge RW 855F.
Software V7.1SP2a or higher is mandatory.
Restrictions: The performance of PM 803F is 5 - 10% below the performance of PM 802F (Obsolete)
The PM 803F has more memory than the PM 802F and is therefor capable to handle larger
projects.

Feature

Specification

CPU

CPU Intel®

32-bit RISC Super Scalar processor up to

150 MIPS

RAM

16 MB synchronous dynamic

read / write memory, battery back up

I/O scan cycle time

Selectable by configuration. Depends on the

capabilities of the fieldbus module

Processing time for 1000 instructions

< 1.0 ms for binary and 16 bit arithmetic

instructions

< 2 ms for fixed point arithmetic instructions

< 1.5 ms for 32 bit arithmetic instructions

Power consumption:

Basic unit only:

PM 802F: max. 6.3 W

PM 803F: max. 7.8 W

depending on CPU usage and cycle time

Power supply

115 - 230 VAC SA 811F

24 VDC SD 812F

Max. power output

See power supply modules

Weight

1.6 kg / 3.3 lbs

max. 5 kg / 11 lbs (fully assembled)

Dimensions

Width 239 mm, 9.4

Height 202 mm, 8

Depth 164 mm, 6.5



Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
