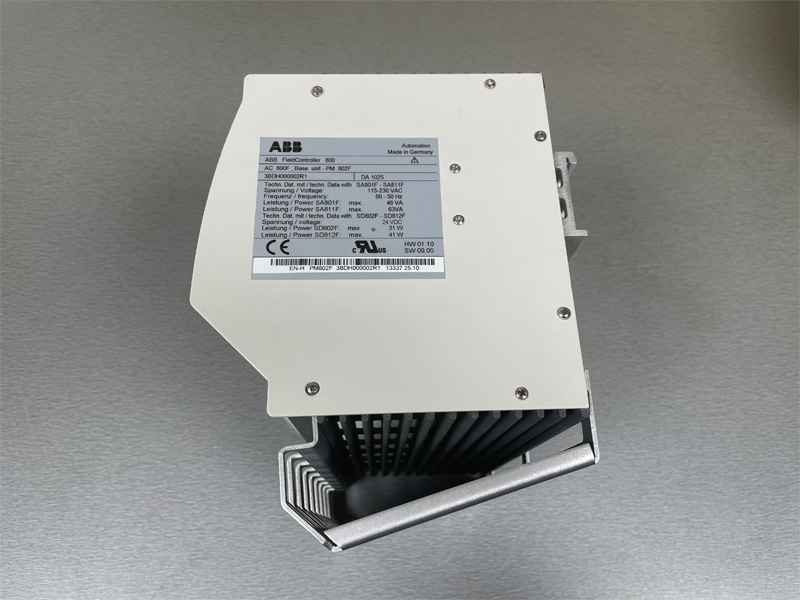

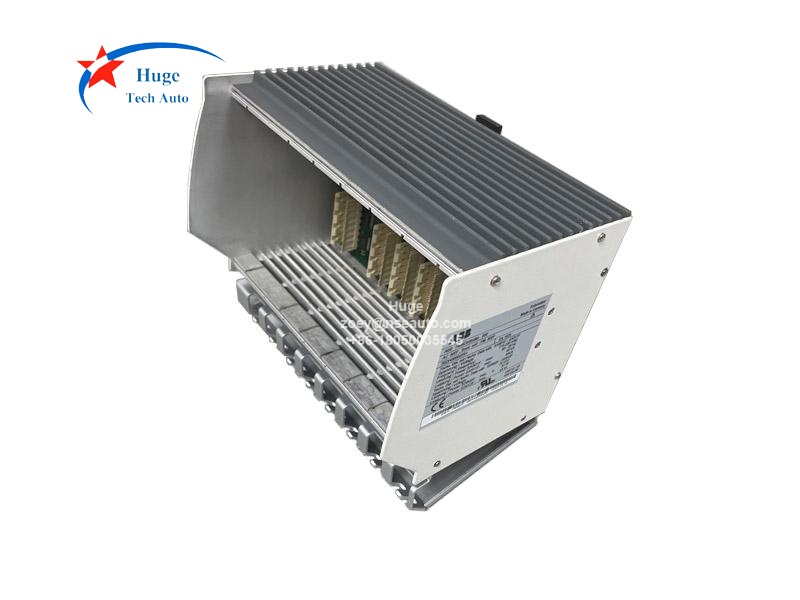

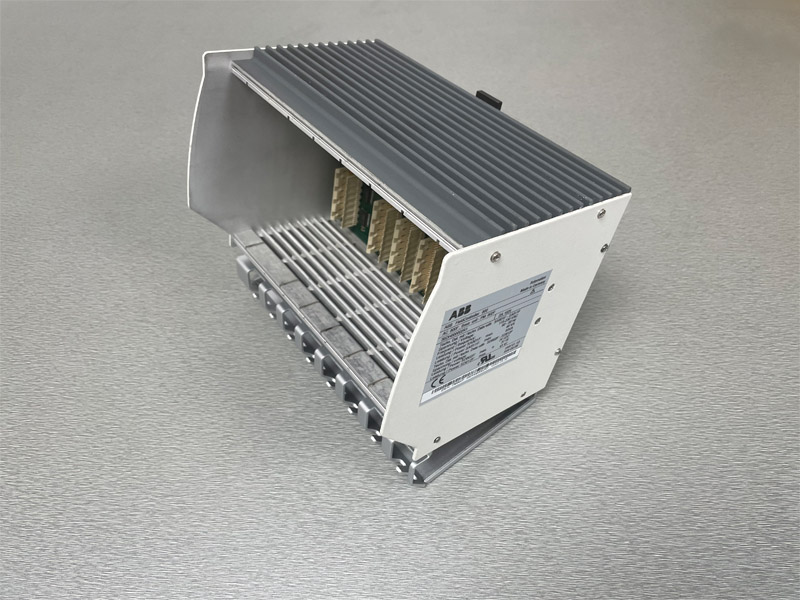

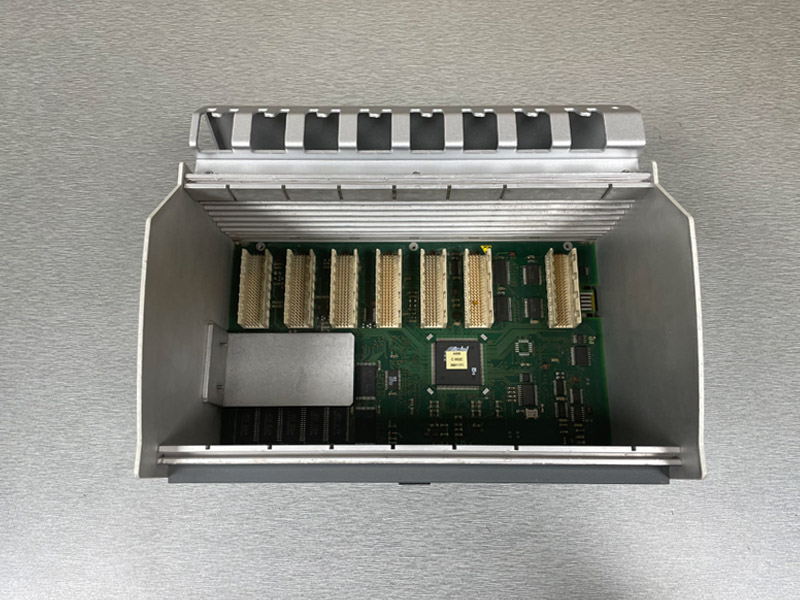

ABB PM802F Base Unit

ABB PM802F 3BDH000002R1 Base Unit 4 MB

Brand:
ABB DCS
Item NO.:
ABB PM802F Base Unit
Order(MOQ):
1
Payment:
T/T
Market Price:
999
Price Range:
1 - 5
Product Origin:
USA
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK

Product Detail

ABB PM802F 3BDH000002R1 Base Unit 4 MB, battery-buffered RAM
Description:
PM802F is designed as ABB Freelance control system AC 800Fprocessor modules. As a basic unit, PF802F scans signals from the fieldbus lines via the corresponding fieldbus modules, processes these signals according the application programs installed by the user and sends appropriate signals to the fieldbus actuators via the fieldbus modules.

Feature	Specification
CPU	CPU Intel® 32-bit RISC Super Scalar processor up to 150 MIPS
RAM	4 MB static read / write memory battery back up
I/O scan cycle time	Selectable by configuration. Depends on the capabilities of the fieldbus module
Processing time for 1000 instructions	< 1.0 ms for binary and 16 bit arithmetic instructions < 2 ms for fixed point arithmetic instructions < 1.5 ms for 32 bit arithmetic instructions
Power consumption:	Basic unit only: PM 802F: max. 6.3 W PM 803F: max. 7.8 W depending on CPU usage and cycle time
Power supply	115 - 230 VAC SA 811F 24 VDC SD 812F
Max. power output	See power supply modules
Weight	1.6 kg / 3.3 lbs max. 5 kg / 11 lbs (fully assembled)
Dimensions	Width 239 mm, 9.4” Height 202 mm, 8“ Depth 164 mm, 6.5“

BENEFITS:
1. lower your support costs
2. Provide on-going availability of automation replacement parts
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
