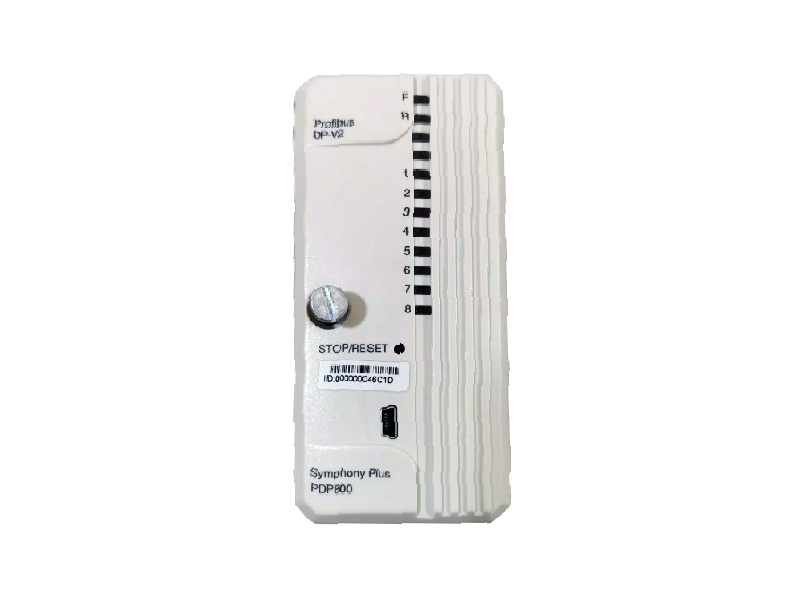

ABB PDP800 Profibus DP V0/V1/V2 Master Module
Description:
PDP800 is part of ABB Symphony Plus control system Profibus DP V0/V1/V2 Master Module.
 PDP800, provides connection between the Symphony Plus controllers and PROFIBUS DP communication channels. This allows for easy integration of intelligent devices such as smart transmitters, actuators and intelligent electronic devices (IEDs). Each device’s resident information can then be used in control strategies and higher level applications.

PDP800 PROFIBUS interface features include:
− Supports PROFIBUS DP V0, V1, V2
− Supports PROFIBUS PA devices through DP/PA linking device
− Supports 1 msec time stamping of devices by PROFIBUS DP V2
− Supports electric and fiber optic media for PROFIBUS DP link
− Up to 12 Mbps rate of PROFIBUS DP link
− Up to 15 km by fiber optic PROFIBUS DP link

The PDP800 module enables the connection of Symphony Plus controllers to S800 I/O via PROFIBUS DP V2. S800 I/O provides options for all signal types, ranging from basic analog and digital inputs and outputs to pulse counters and intrinsically safe applications. S800 I/O sequence of events functionality is supported by PROFIBUS DP V2 with 1 msec accuracy event time stamping occurring at the source.

Additionally, the PDP800 supports Symphony Plus controllers’ connectivity to S+ Turbine’s specialty modules. Specifically, via PROFIBUS DP V2, the HPC800 can support powerful turbine control solutions for turbine protection (TP800), valve positioning (VP800), generator auto synchronization (AS800) and condition monitoring (MCM800).

Using fiber optic extensions, PROFIBUS I/O modules and devices can be placed up to 15 km from the PDP800. Additionally, PDP800 modules can be located up to 3 km from the controller via redundant HN800 fiber optic communications.
