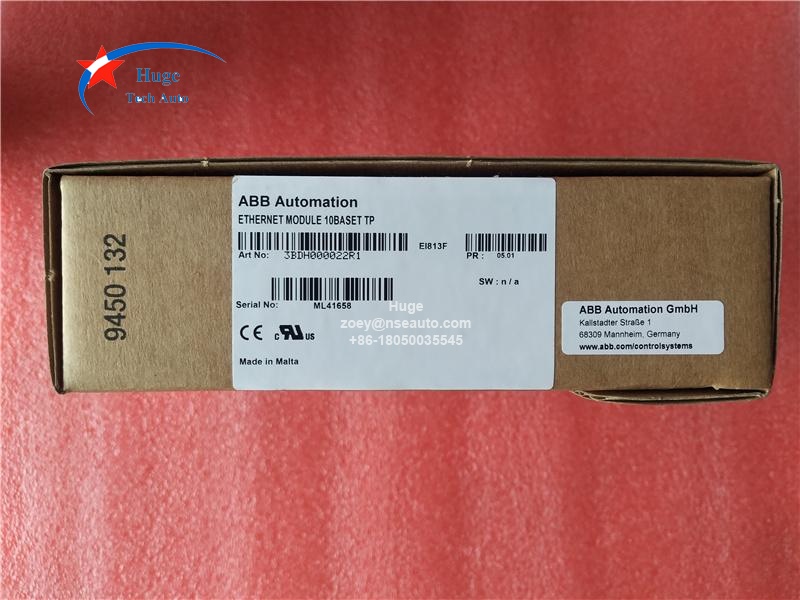

ABB EI813F 3BDH000022R1 Ethernet Fieldbus Module 10BaseT
ABB EI813F 3BDH000022R1 Ethernet Fieldbus Module 10BaseT
Brand:
ABB DCSItem NO.:
EI813F 3BDH000022R1Order(MOQ):
1Payment:
T/TProduct Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time：
IN STOCK

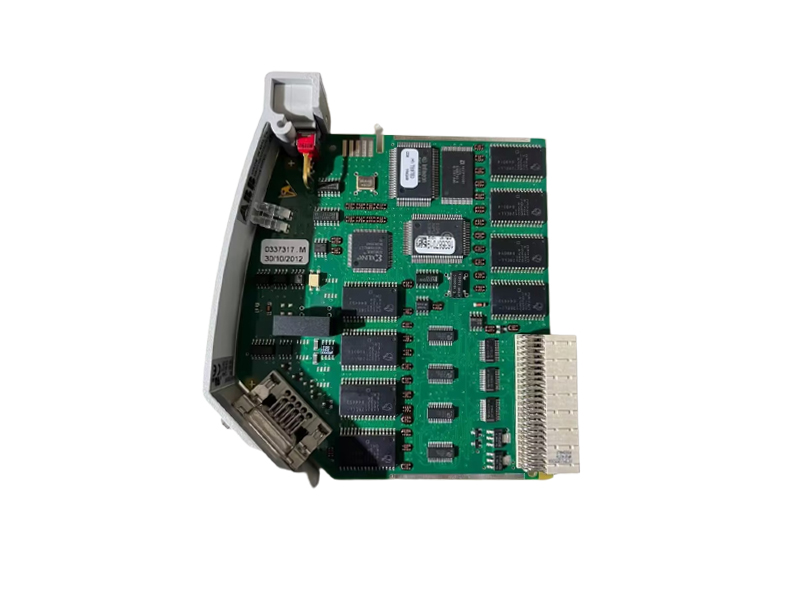

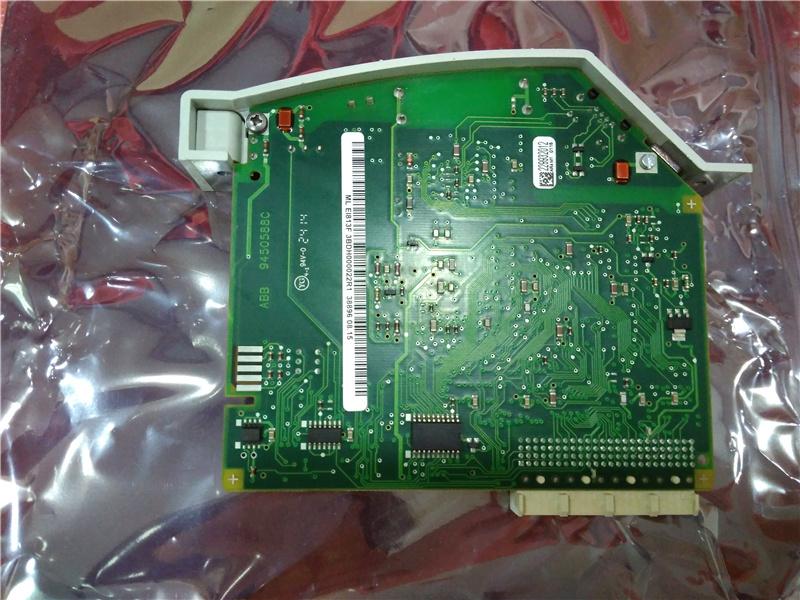

ABB EI813F 3BDH000022R1 Ethernet Fieldbus Module
Description:
EI813F is part of AC 800F Communication Modules of ABB Freelance control system. This communication module provides Ethernet communications to the control network compliant with IEEE802.3 standard. Communications module, compliant with 10BaseT shielded Twisted Pair (STP, cable category 3, 4 or 5 advanced).
For use together with PM 802F or PM 803F.There is no battery included.Software V7.1SP2a or higher is mandatory.
Technical
data EI 813F
Rated
voltage
3.3 V / 5
V, ±3%, from CPU board
Power
consumption
Max. 1.2
W
STP
10BaseT
cable category 3, 4 or 5 advanced
RAM and real-time-clock buffering time
New battery inserted
After “Low”
warning
PM 802F: PM 803F:
≥ 1.5 years ≥ 10 days
≥ 10 days
≥ 5 hours
Battery
3.6 V lithium battery,
950 mAh
(has to be ordered separately
Weight
Approx.
0.150 kg, 0.33 lbs (without battery)
Features:
− IEEE802.3 Ethernet standard
− Provides 10BaseT compliant communication (10Mbit)
− 32-bit data bus
− Transmission rate 10 Mbit/s
− Direct memory access to main memory, < 4% CPU overhead for operation
− Optional battery for redundant battery backup of main memory
− G3 compliant Z variant available
Benefits:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
