ABB DSDP170 Pulse Counting Module

ABB DSDP170 57160001-ADF Pulse Counting Module

  • Brand:

    ABB DCS
  • Item NO.:

    DSDP170
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    999
  • Price Range:

    6 - 10
  • Price Range:

    1 - 5
  • Product Origin:

    USA
  • Color:

    METEL COLOR
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
Product Detail

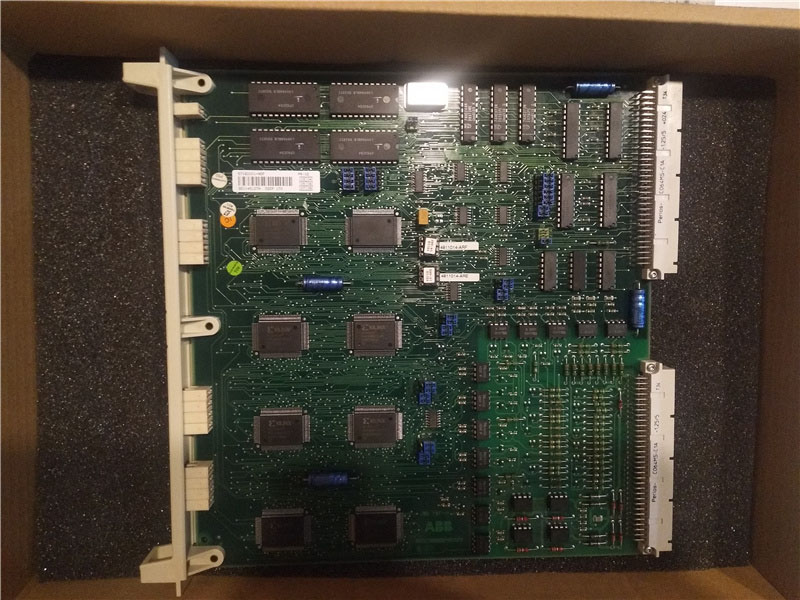

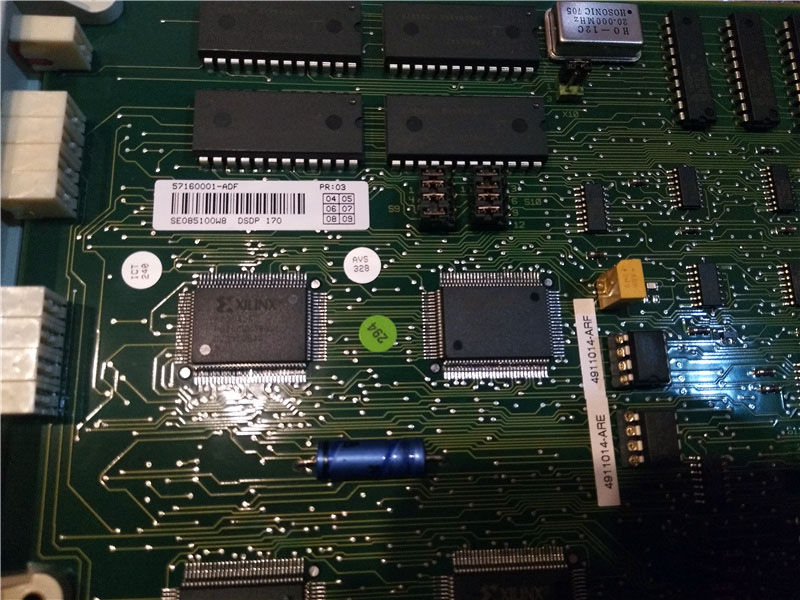

ABB DSDP170 57160001-ADF Pulse Counting Board
Description:
DSDP170 is ABB Advant controller 450 system Pulse Counting Board. DSDP170 is a 4 channel high-speed pulse counter circuit board which is primarily intended for positioning/length and speed/frequency measuring, Interrupt level, measuring interval source and time, filter time for inputs. Maximum pulse frequency is 2.5 MHz.

Pulse Counting functions are used for different applications in the industry, such as position measurement, flow measurement, speed measurement, synchronization of machine movements, and so on. The pulse-counting function requires special hardware. The pulse-counting/frequency measurement function requires hardware module DSDP 150. This circuit board is used for both pulse counting and frequency measurement and has inputs which can be connected to pulse generators with a frequency of up to 10 kHz.

Advant Controller 450 is a large controller for mixed binary, regulatory and supervisory control. It can be used standing alone, or as an integrated controller in a distributed control system, communicating with other Advant OCS equipment.

Specifications:
Two channels and strobe
5/12/24 V or ±13 mA,
max. 2.5 MHz
DI: 24 V d.c.
DO: 24 V max. 250 mA d.c.

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
