ABB DSAI130 Analog Input Board

ABB DSAI130 57120001-P Analog Input Board 16 Channels

  • Brand:

    ABB DCS
  • Item NO.:

    DSAI130
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    Germany (DE)/ Spain (ES)/ United States (US)
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 year
Product Detail

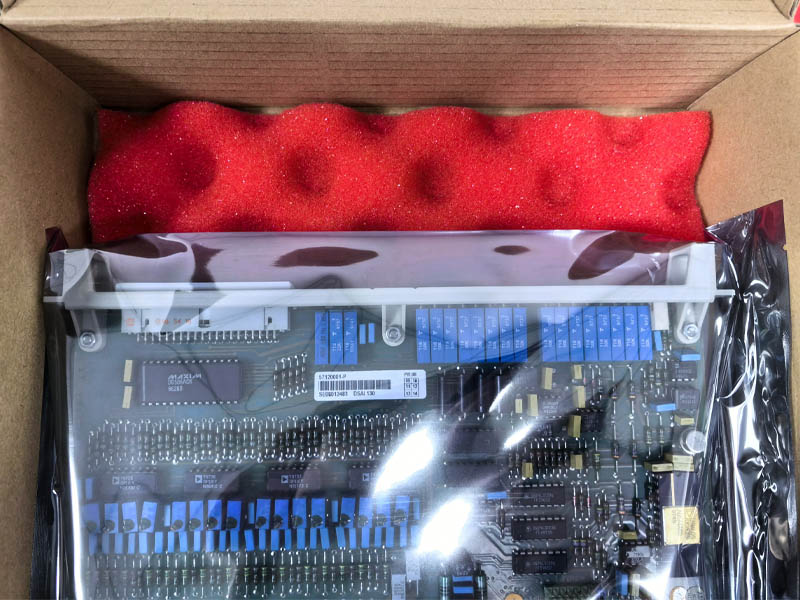

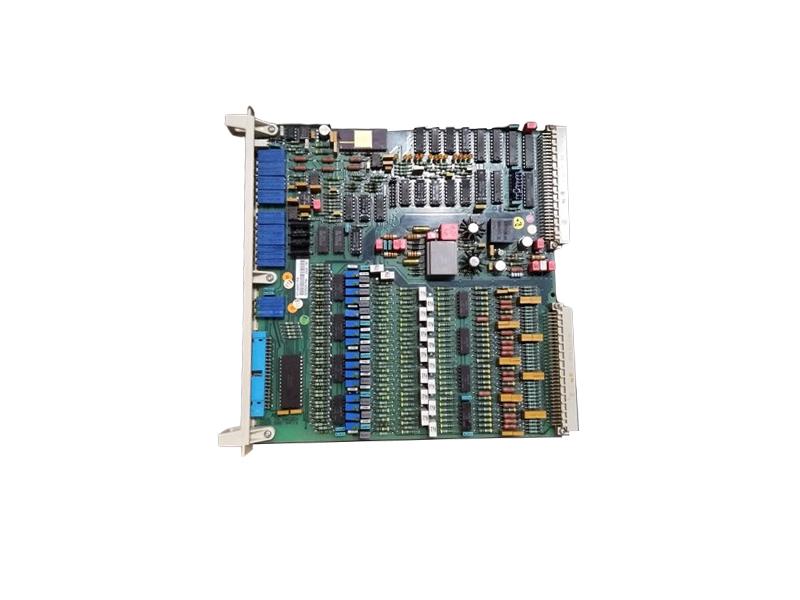

DSAI 130 57120001-P Analog Input Board 16 Channels
Description:
DSAI 130 (57120001-P) is designed as ABB Advant OCS S100 system analog input board.  The S100 I/0 consists of several 1/0 boards, internal cables, and connection units covering awide variety of applications and specific needs.
The 1/0 boards are divided into groups, depending on their function. Within each group, thereare several 1/0 boards with differing functionality and complexityThere are 6 types of analog input boards are used in the advant I/O system.
The boards are provided with a number of channels. Interference suppression, filtration andadaptation of the signal with respect to zero point and gain are performed individually in abuffer amplifier. The A/D converter is multiplexed between the input channels. An inputchannel is selected by the controller software by writing to a parameter register, which alsostarts the A/D conversion. The value, converted to digital form, is then transferred via the parallel databus to the controller software for further signal processing.
Number of channels: 16
Input impedance (at voltage input): 2 MΩ
Measurement range: 0-±10 V
                                 0-±5 V
                                 0-+2.5 V
                                 0-+1.25 V
                                 0-+20 mA
                                 0-±10 mA
                                 0-±5 mA
Shunt resistance: 250Ω
Shunt inaccuracy: 0.1%
CMV: 100 V
Low pass filter, number of poles: 2
Limit frequency (3dB): 6.5 Hz
Attenuation of 50 Hz: > 32 dB
Resolution: 12 bits + sign
Max inaccuracy excl. shunt with Gain=1: 0.03%
Temp. drift, basic board with Gain=1:
-Maximum: 0.1%/10°C
-Typical: 0.05%/10°C
Temperature drift, shunt:
-Maximum:15 ppm/°C
-Typical: 10 ppm/C
Conversion time: <100 μS
Current consumption 24 V: 110 mA
Current consumption 5 V: 250 mA
Fusing of transducer supply: Common
Interference immunity in acc. with:
pr.EN 50082-5: yes
IEC 255-4 impulse: 5 kV
IEC 255-4 1 MHz CMV/NMV: 2.5 kV/2.5 kV
