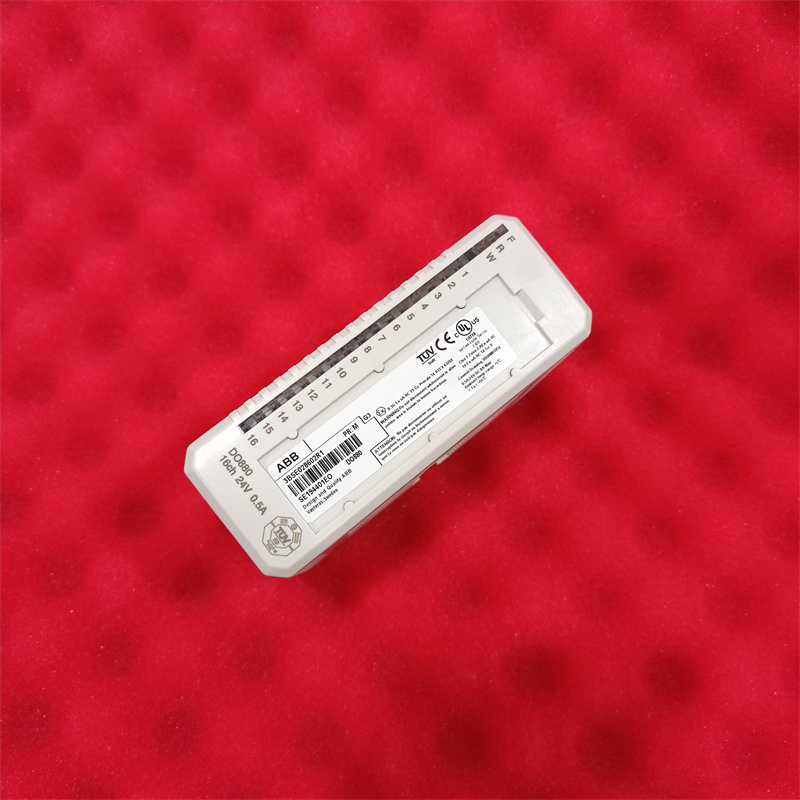

ABB DO880 3BSE028602R1 Digital Output
Description:
DO880 3BSE028602R1 is designed as ABB 800xA control system Digital Output. DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximum continuous output current per channel is 0.5 A. The outputs are current limited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to the Modulebus.

Features:
16 channels for 24 V d.c. current sourcing outputs in one isolated group
Redundant or single configuration
Loop monitoring, supervision of short and open load with configurable limits (see table Table 97).
Diagnostic of output switches without pulsing on outputs
Advanced on-board diagnostics
Output status indicators (activated/error)
Degraded mode for normally energized channels (supported from DO880 PR:G)
Current limitation at short circuit and over-temperature protection of switches
Fault tolerance of 1 (as defined in IEC 61508) for output drivers. For ND (Normally De-energized) systems, outputs can still be controlled with error on output drivers
Certified for SIL3 according to IEC 61508
Certified for Category 4 according to EN 954-1.

Specifications:
Signal specification: 24 V d.c. (19.2 - 32 V d.c.), 0.5 A
Signal type: Current sourcing, current limiting
Isolation: Groupwise isolated from ground
Maximum field cable length: 600 meters (656 yards)
Current consumption +5 V Modulebus: 45 mA
Current consumption +24 V Modulebus: Max. 50 mA
Current consumption +24 V external: 10 mA
Dimensions: 119x105x45 mm
Weight: 0.2 kg

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
