ABB DI828 Digital Input 16 Channel module

ABB DI828 3BSE069054R1Digital Input 16 Channel module

Brand:
ABB DCS
Item NO.:
DI828
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
Xiamen
Weight：
0.15g
Warranty:
1 year

Product Detail

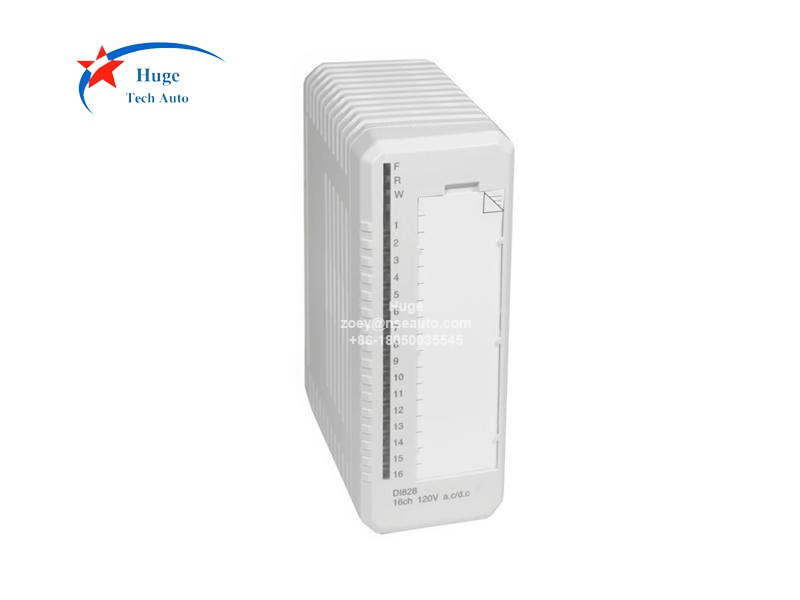

ABB DI828 Digital Input 16 Channel module
Description:
The DI828 is an 16 channel 120 V a.c/d.c. digital input module for the S800 I/O. The module has 16 digital inputs. The AC input voltage range is 77 - 130 V and the input current is 8.5 mA at 120V AC. The DC input voltage range is 75 - 130 V and the input current is 2.4 mA at 120V DC. The inputs are individually isolated.
Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter. Channel 1 can be used as voltage supervision input for channels 2 - 8. Channel 16 can be used as voltage supervision input for channels 9 - 15.
If the voltage supervision is used and the voltage connected to channel 1 or 16 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus.Compatible with TU851.
Input voltage range, "0" 0..30 V a.c., 0..20 V d.c.
Input voltage range, "1" 77..130 V a.c., 75..130 V d.c.
Input impedance 14.2 kΩ (a.c.) / 50 kΩ (d.c.)
Isolation Individually isolated channels
Filter times (digital, selectable) 2,5 ±0.5, 5 ±1, 10 ±2, 20 ±4 ms
Input frequencey range 47..63 Hz
Analog filter On/Off delay 5 / 10 ms
Maximum field cable length 200 meters (656 yards) 100 pF/m for a.c., 600 meters (656 yards) for d.c.
Rated insulation voltage 250 V
Dielectric test voltage 2000 V a.c.
Power dissipation Typ. 3.5 W
Current consumption +5 V Modulebus Typ. 45 mA, Max 60 mA
Current consumption +24 V Modulebus0
