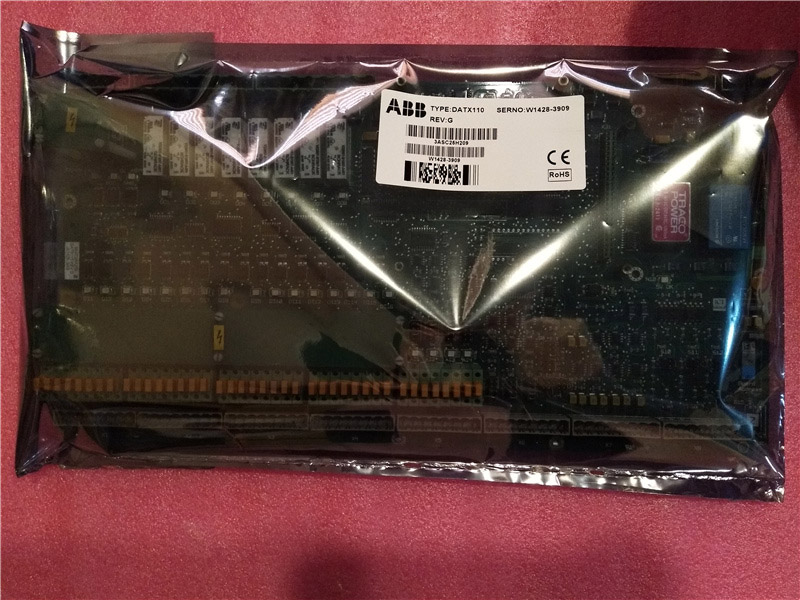

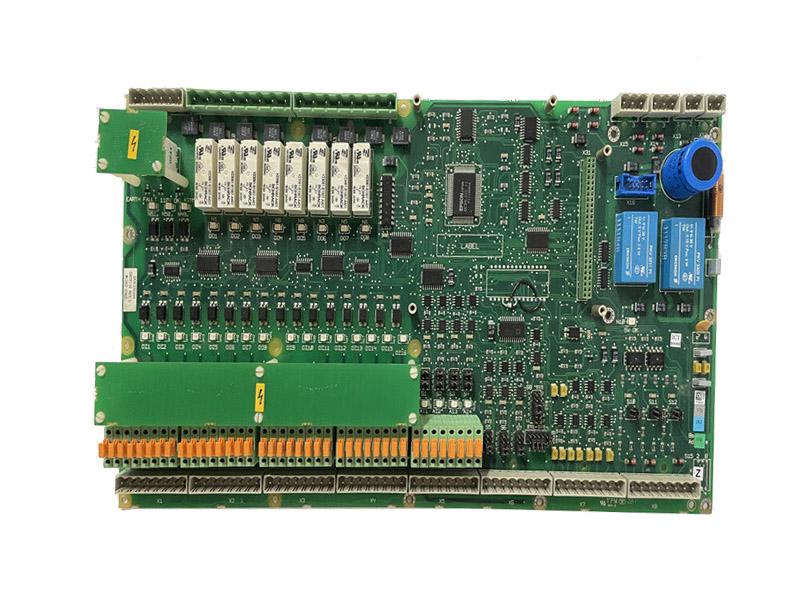

ABB DATX110 3ASC25H209 I/O board
Description:
The motion control system can be used with or without remote/extended I/O, "Cabin I/O". Some functions
requires Cabin I/O:
Shared motion, Soft limit switch, Direct connection of load cell, Switching between two operator stations,
Switching between two / four parameter sets, Full information about four motors.
If the motion includes four motors, without Cabin I/O ASTAT will only see two motors from the detailed information
point of view - still four motors can be used with a few contacts in serial connection.
Parameter 02.01 = 5 means that the master switch is connected DARA 100x board DATX 110.
Parameter 02.01 = 0 for installation with one or two Cabin I/O for master switch connection.
Parameter 02.01 = 1 for the master switch connected to Cabin I/O #2, and Cabin I/Os #1 and #3 used for
mirror wise signal transfer from cabin to E-room using the same fiber cable. DO and AO of Cabin I/O #1 are
copies of DI and AI of Cabin I/O #3 and vice verse.
