ABB CP410M control panel 16 function keys 3” LCD graphic monochrome display
ABB CP410M control panel 16 function keys 3” LCD graphic monochrome display
Brand:
ABB DCSItem NO.:
ABB CP410MOrder(MOQ):
1 PCPayment:
T/TProduct Origin:
Taiwan, ChinaColor:
METEL COLORShipping Port:
XIAMENLead Time:
IN STOCKWarranty:
1 Year

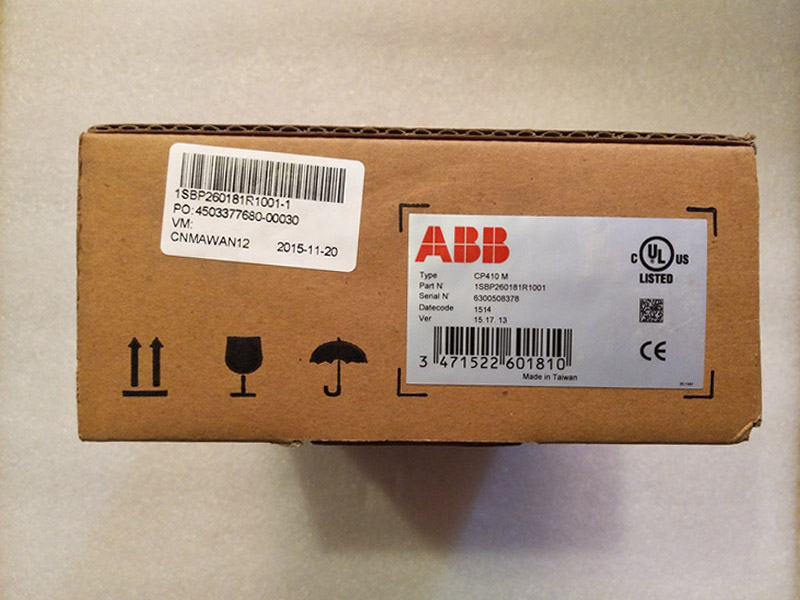

ABB CP410M 1SBP260181R1001 control panel
Description:
CP410 is a Human Machine Interface (HMI) with a 3" STN Liquid Crystal Display, and is water- and dust-resistant according to IP65/NEMA 4X (indoor use only).
CP410 is CE-marked and meets your need to be highly transient-resistant while in operation.
Also, its compact design makes connections with other machinery more flexible, thus achieving the optimal performance of your machines.
CP400Soft is used to design applications of CP410; it is reliable, user-friendly and compatible with many models.
Ambient Air Temperature: Operation 0 ... +50 °C, Storage -10 ... +60 °C
Battery Type: Portable
Communication: Depend on Driver
Communication Speed: 4.8 ... 187.5 kBd
Memory Type User Program: 4 MB ROM
Mounting Position: 0 to 135 °
Mounting Type: Front face
Number of Characters Per Line: 20
Number of Display Lines: 10
Number of Function Keys: 16
Operating Mode: off-lineon-line
Power Supply: 24 V DC
