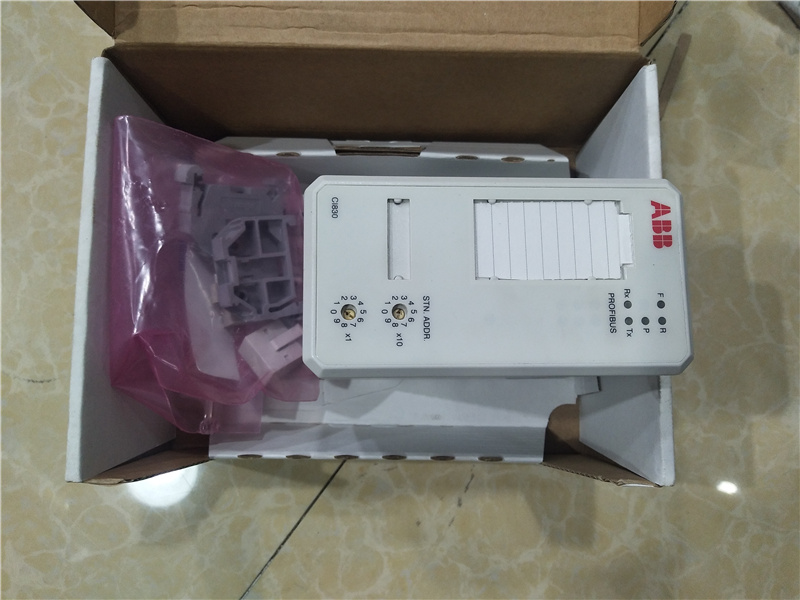

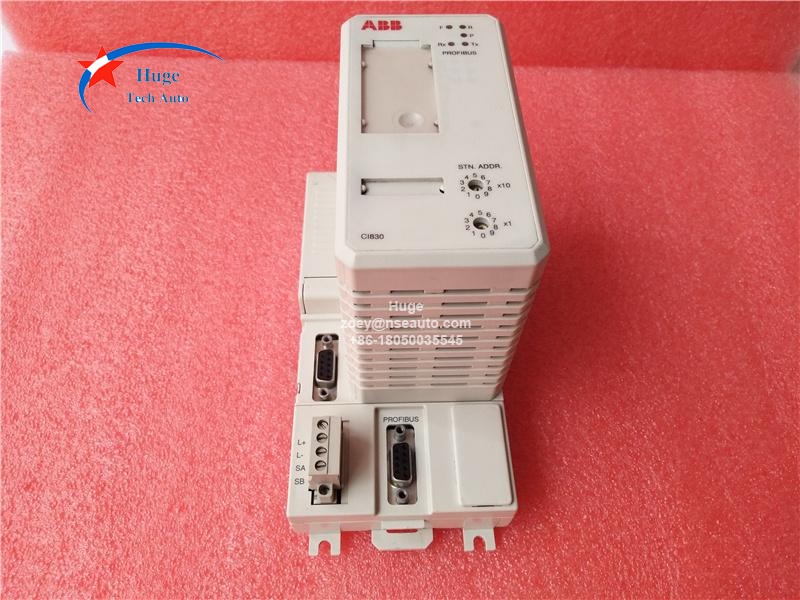

ABB CI830 3BSE013232R1 PROFIBUS DP-V1Communication Interface
Description：
The CI830 is a Profibus DP Communications Interface module manufactured by ABB, specifically designed for use with the ABB Advant S800 I/O and Advant-800xA systems.
The unit CI830 is a remote PROFIBUS DP-V0 I/O adapter for units. CI830 is connected to a controller via a PROFIBUS DP-V0 master unit on the controller system bus. The CI830 can handle up to 24 S800 I/O-units. 12 I/O-units can be directly connected to the ModuleBus on the CI830, while the remaining I/O-units have to be connected via I/O-clusters. Up to 7 I/O-clusters can be connected to one CI830, and the numbering of I/O-units connected to a cluster will start with 101 for cluster 1, 201 for cluster 2 and so on. CI830 is replaced by CI801 at new installations.
Compact Module Termination Unit with 25 pin D-sub connector, rated isol. 50V. D-sub (female) connector is not enclosed.

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
