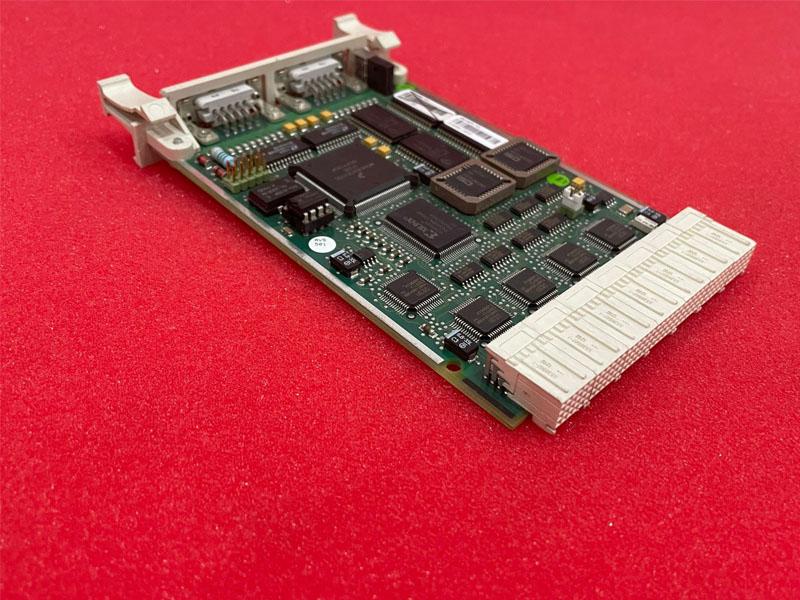

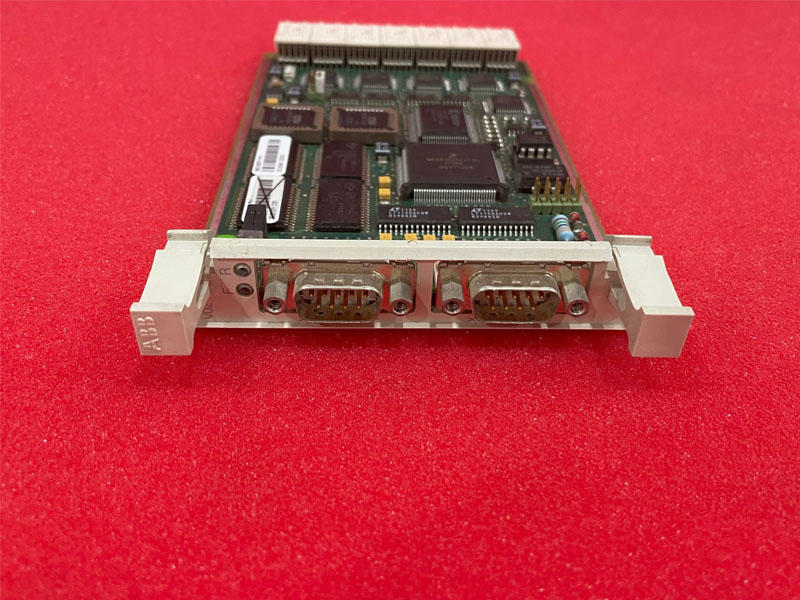

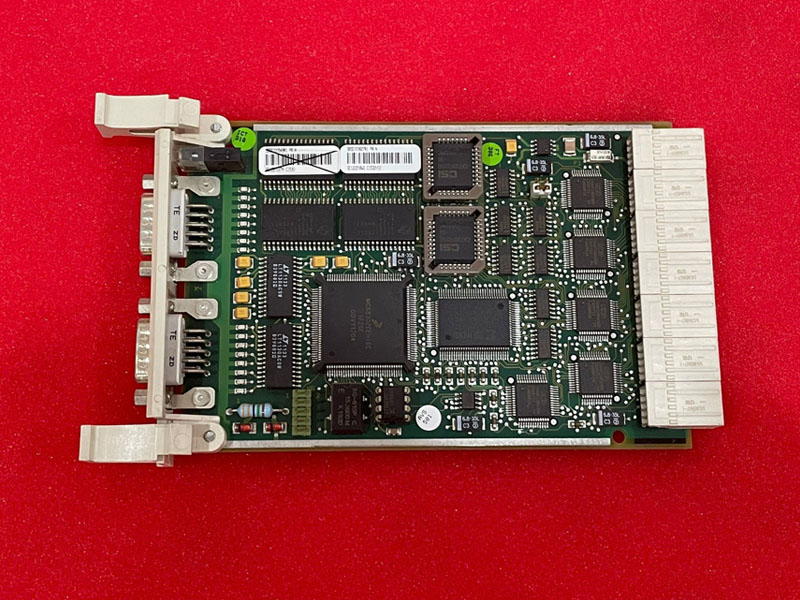

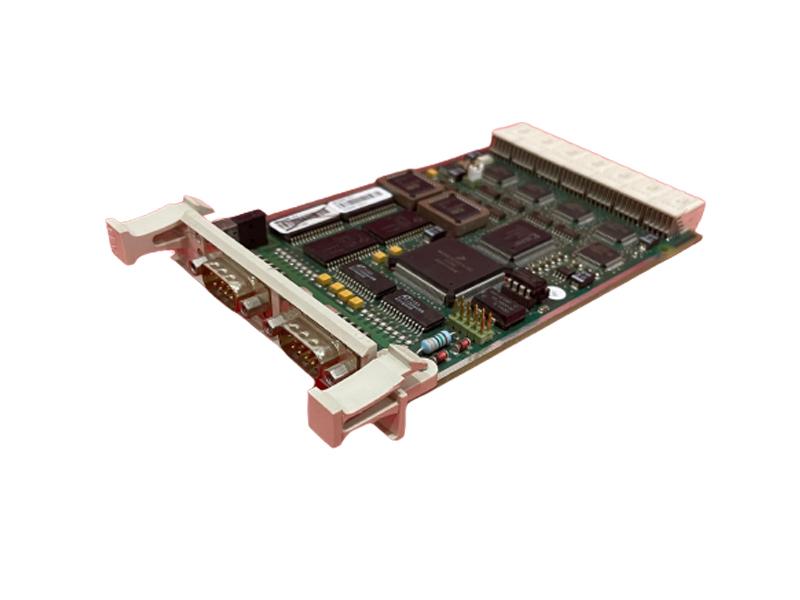

ABB CI532V02 3BSE003827R1 MODBUS Interface Module
DESCRIPTION：
CI532V02 is part of ABB Advant OCS control system communication module. It is RCOM/RCOM+ communication interface submodule for Advant controllers. Each interface include two channels.

The CI532V MVI Personality Modules provide a serial interface to external devices such as PLCs. There are two serial RS-232 ports per MVI module. Each MVI uses one of the two available Carrier slots. Up to two MVI modules can be used per Advant Controller 410, which provides for a total of four serial ports. Up to four MVI modules (in Carrier Modules) can be used per Advant Controller 460 Processor Module. When a pair of MVI modules are installed, they may be configured either as one redundant interface or as two independent, non-redundant interfaces. Normally, a redundant pair of MVI modules would reside on separate Carrier Boards when using the AC460. The communications protocol must be the same for both ports on the same MVI module.
