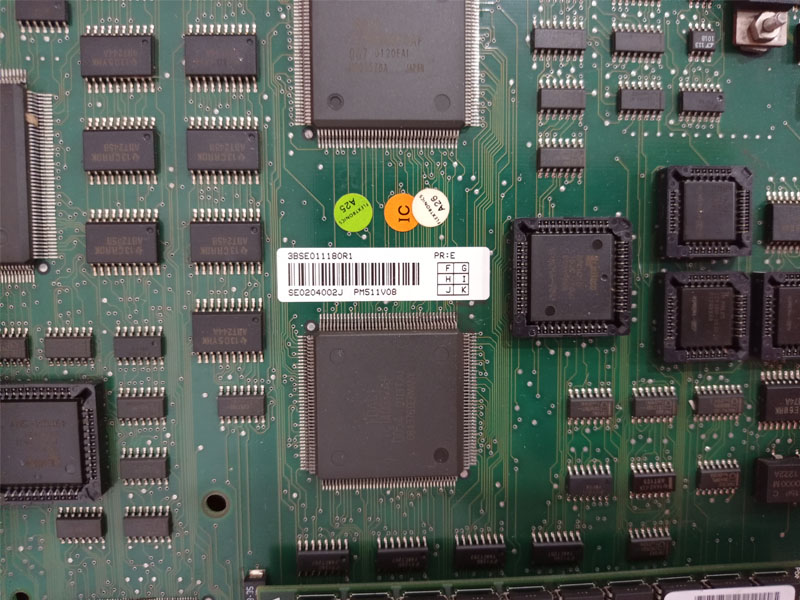

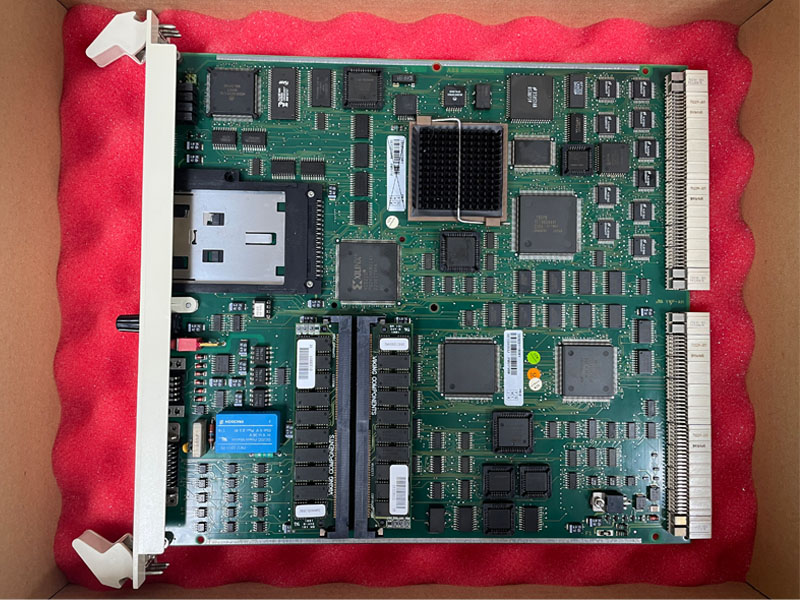

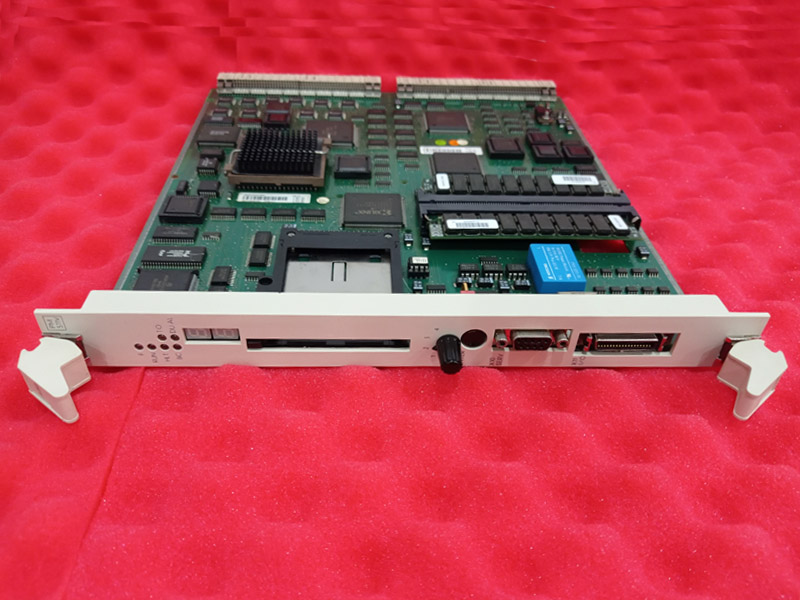

ABB PM511V08 3BSE011180R1 Processor Module with 8 Mbyte dynamic RAM
Description:
PM511V08 is one of ABB Advant Controller 450 processor module. It is designed to fit into RF533 series controller subracks.

PM511V08 contains the total amount of RAM 8Mbyte dynamic RAM with error correction code. This memory holds the system program which is in use as well as the controller system configuration and application program, that is, all memory executed in run time. The processor module is built-up around a microprocessor, Motorola 68040, running at 25 MHz.

To support a configuration with two redundant processor modules with one running in backup mode, PM511V is equipped with logic that transfers a copy of all writes in the primary processor to the backup processor, thereby keeping a complete updated copy of the primary processor’s memory in the backup processor. This makes it possible for the backup processor to resume the operation directly in the event of a failing primary processor.

Specifications:
Memory: 8 Mbyte dynamic RAM for system software and application program.
Indicators:
LEDs on module front:
F (red): Module error
RUN (green): Module running nommally
HLT (red): CPU halted
TO (yellow): Bus time-out
BC(green): Backup voltage for RAM connected
DUAL (green): Redundant processor ready
Power Supply
5 V d.c.     typical      4900 mA
                max.          6000 mA
24 V d.c.   typical      200 mA
                max.         280 mA
Power loss (heat) typical     25 W
Mechanical Data：
Module size：12 SU, 6 mp
Module weight: 0.8kg
