ABB BC810K01 3BSE031154R1 new arriving stock

ABB BC810K01 3BSE031154R1 CEX-bus Interconnection Unit

  • Brand:

    ABB DCS
  • Item NO.:

    BC810K01 3BSE031154R
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Sweden
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Weight:

    0.77 kg
  • Warranty:

    1 year
Product Detail

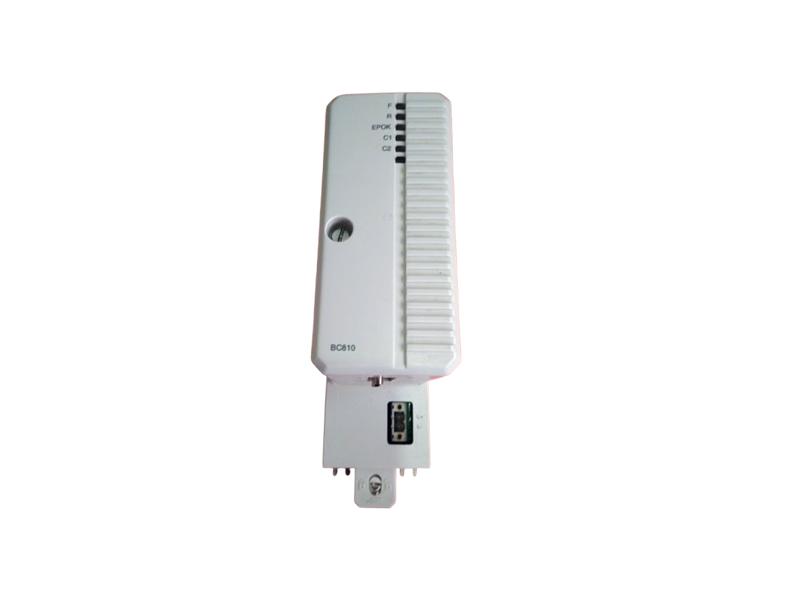

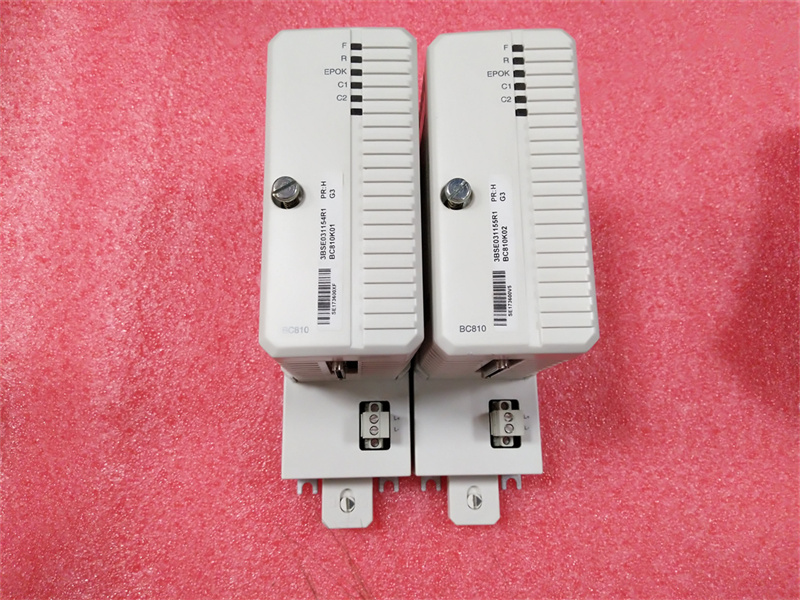

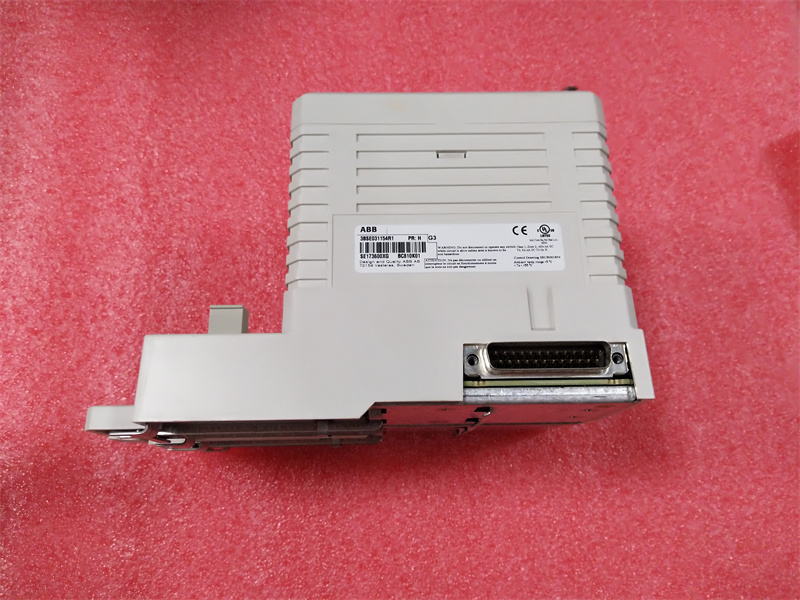

BC810K01 CEX-bus Interconnection Unit
Description:
BC810K01 is ABB AC 800M control system connunication module.

BC810K01 CEX-bus Interconnection Unit Kit Including 1 pc of BC810, 1 pc of baseplate TP857 and 1 pc of CEX-Bus Terminator TB850. As a Interconnection Unit, BC810 compatible with TP857. BC810 also can be used with PM861A, PM862, PM864A, PM865, PM866, PM866A and PM867.The baseplate is where the connectors to CEX-Bus and the external power reside. It is grounded to the DIN-rail through metal parts of the housing. The board also carries the external power voting diode and fuse. The power supply and logic board contains the +3.3 V converter, logic, drivers for CEX-Bus interconnection and the connector for interconnection cable.

Detailed data
Power supply Inputs designated L+ and L- 24 V nominal, variation between 19.2 V DC and 30 V DC.
Power consumption +24 V typ/max 50 mA typical (70 mA max)
Power dissipation 1.2 W typical

Environment and certification
Temperature, Operating +5 to +55 °C (+41 to +131 °F)
Temperature, Storage -40 to +70 °C (-40 to +158 °F)
Relative humidity 5 to 95 %, non-condensing
Protection class IP20 according to EN60529, IEC 529
CE Mark Yes
Electrical Safety UL 61010-1, UL 61010-2-201
Hazardous location cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
Marine certificates ABS, BV, DNV-GL, LR

Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
