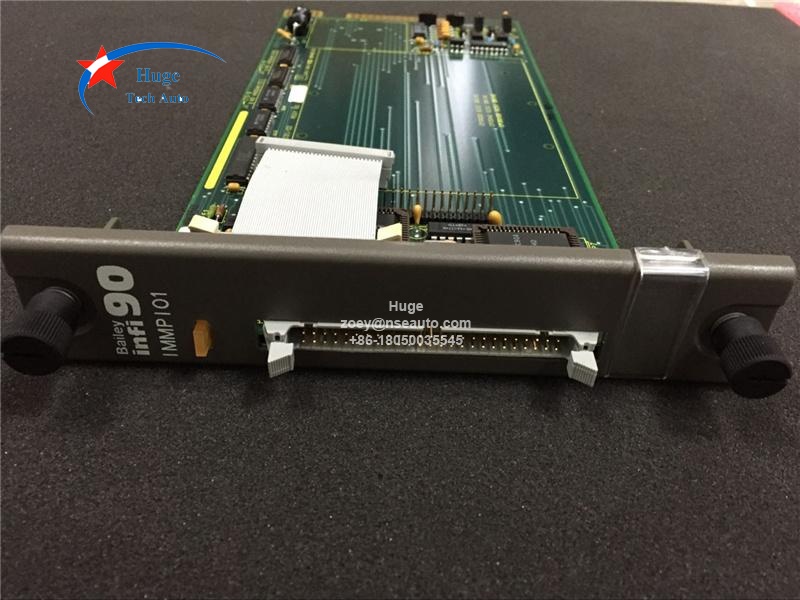

ABB Bailey IMMPI01 Multifunction processor interface

Description:

The IMMPI01 Multifunction Processor Interface Module handles the I/O interface between the host computer and the INICT03A Computer Transfer Module. The IMMPI01 module supports either a SCSI or RS-232-C computer interface. When communicating through the RS-232-C port, the module can act as data communication equipment (DCE) or data terminal equipment (DTE).

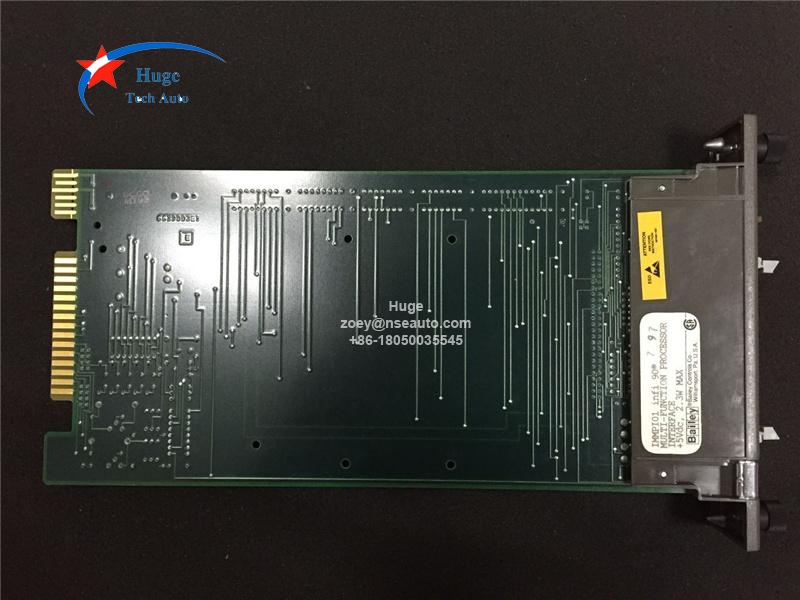

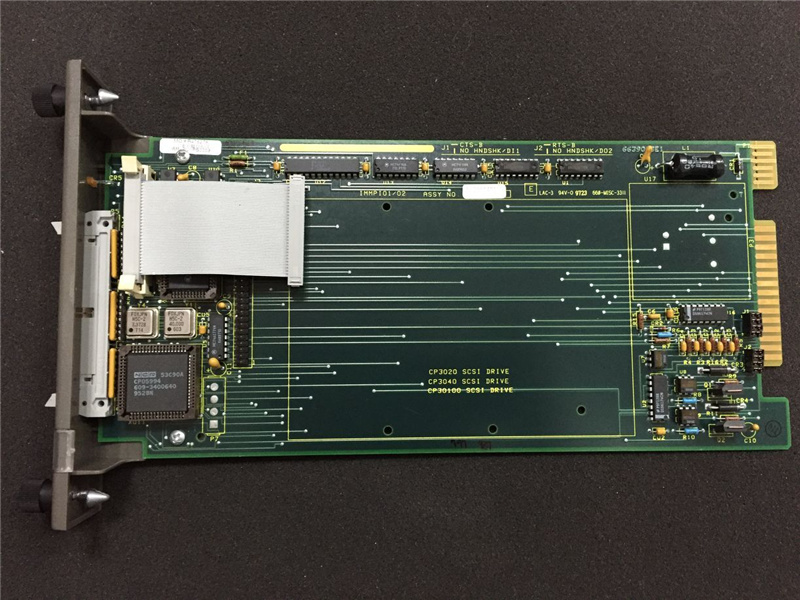

The IMMPI01 module is a single printed circuit board that occupies one slot in the module mounting unit. The circuit board contains microprocessor based communication circuitry that enables it to communicate with its INICT03A module through a ribbon cable connection.
For RS-232-C computer interface, the module cable connects to an NTMP01 termination unit. Two RS-232-C ports are located on the termination unit. The NTMP01 jumper configuration determines DTE or DCE operation. The SCSI port is located at the module faceplate. In this case, no termination unit is required.

Power requirements +5 VDC at 415 mA; 2.1 W
Ports 2 RS-232-C; 1 SCSI

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
