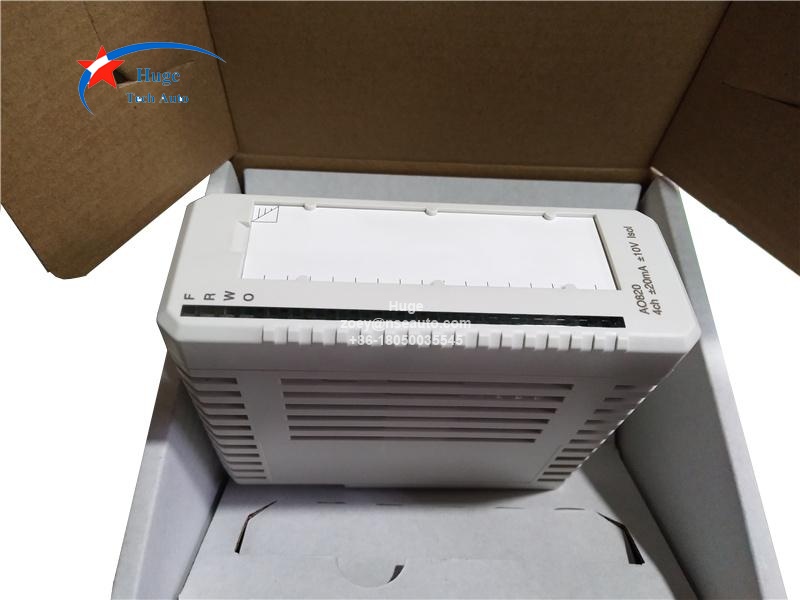

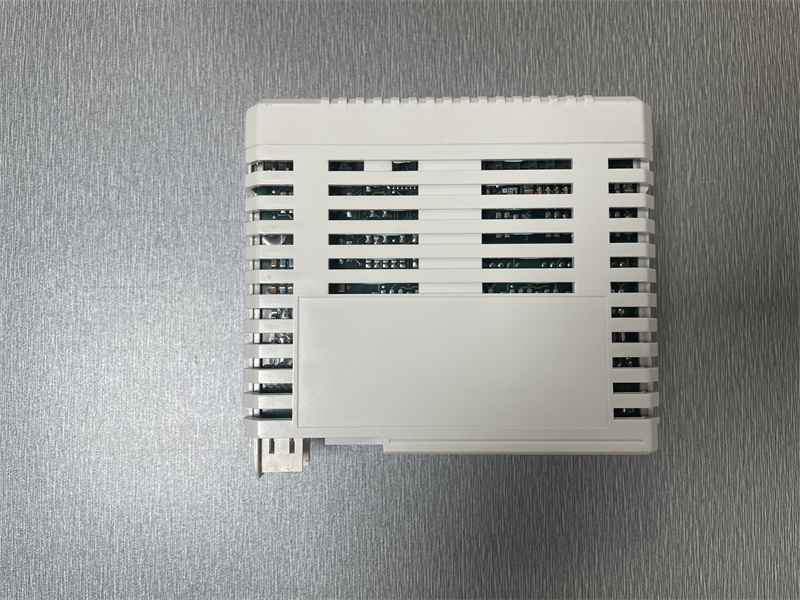

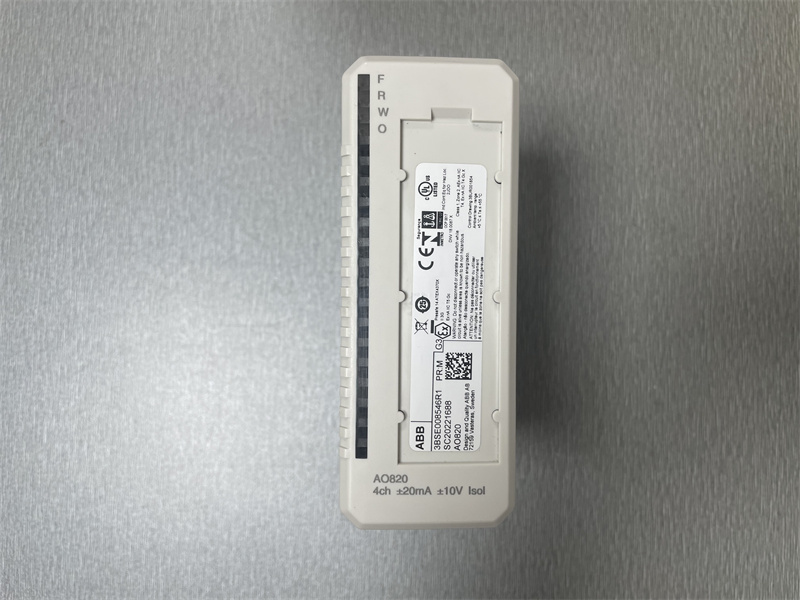

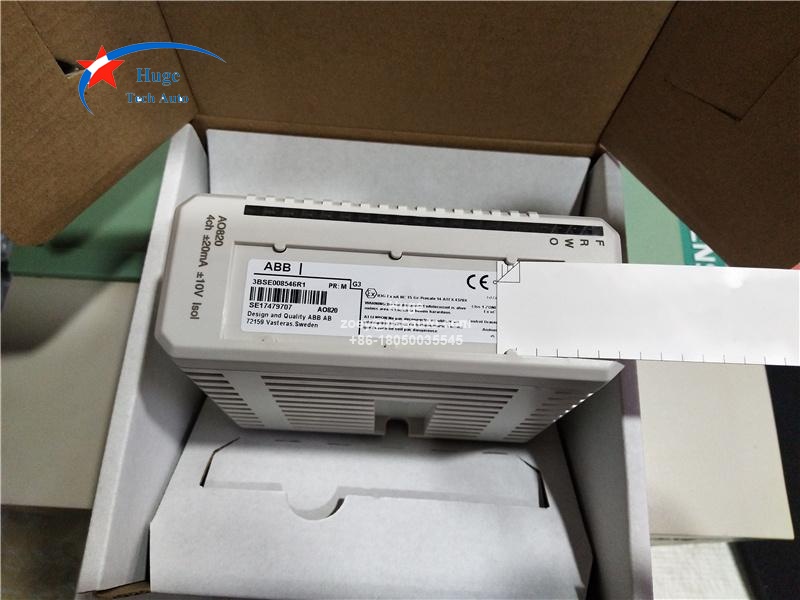

ABB AO820 3BSE008546R1 Analog Output 4ch
Description:
As one of ABB 800xA series I/O modules, AO820 is +-20mA, 0(4)...20mA, +-10V, 12bit+sign.
AO820 Analog Output Module has 4 bipolar analog output channels. The choice of current or voltage output is configurable for each channel. There are separate sets of terminals for voltage and current outputs, and it is up to the user to wire outputs properly. The only differences between current or voltage channel configuration is in software settings.

Individually galvanic isolated channels. RL max 500 Ohms.
Module Termination Unit TU810, TU812, TU814, TU830, TU833 can be used.

Features:
4 channels of -20 mA...+20 mA, 0...20 mA, 4...20 mA or -10 V...+10 V, 0...10 V, 2...10 V outputs
Individually galvanically isolated channels
OSP sets outputs to predetermined state upon error detection.
