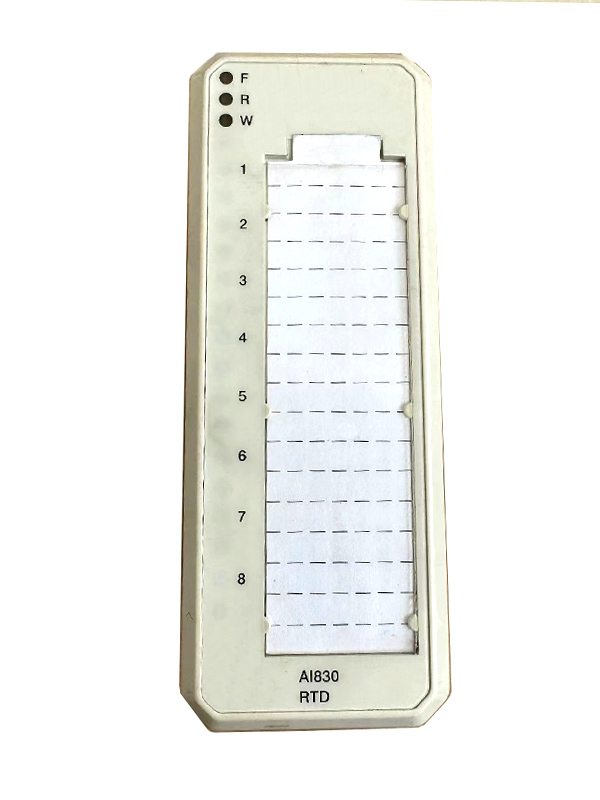

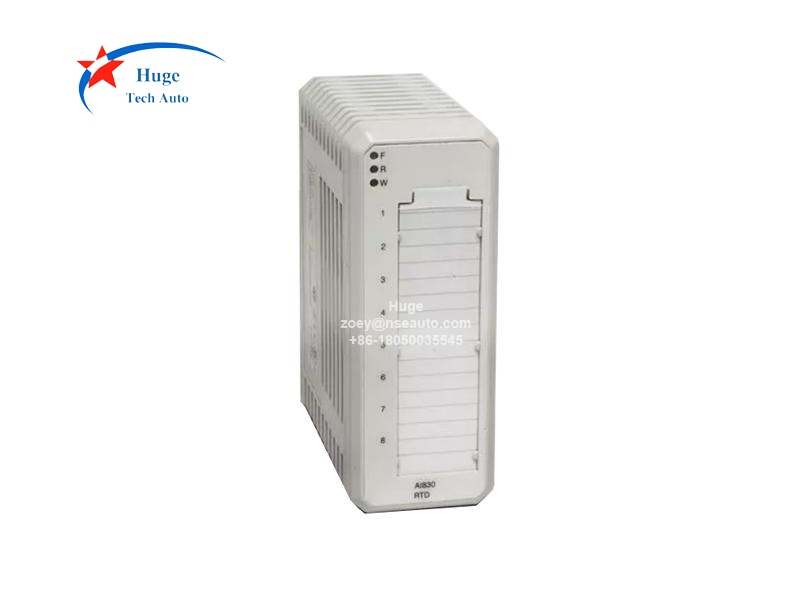

ABB AI830 3BSE008518R1 ANALOG INPUT I/O MODULE
Description:
AI830 is designed as ABB 800xA control system Analog Input. The successor is new version AI830A. The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.  Use Module Termination Unit TU810, TU812, TU814, TU830, TU833.

The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.

Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).
Signal specification：3-wire RTD: Pt100, Cu10, NI100, Ni120 and resistive potentiometer
Isolation：Groupwise isolated from ground
Update cycle time：150 + 95 * (number of active channels) ms
CMRR, 50Hz, 60Hz：>120 dB (at 10Ω load)
NMRR, 50Hz, 60Hz：>60 dB
Rated insulation voltage：50 V
Dielectric test voltage：500 V a.c.
Power dissipation：1.6 W
Current consumption +5 V Modulebus：70 mA
Current consumption +24 V Modulebus：50 mA
Dimensions: 119x102x45 mm
Weight: 0.22kg

Features:
· 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs
· 3-wire connection to RTDs
· 14 Bit resolution
· Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor
