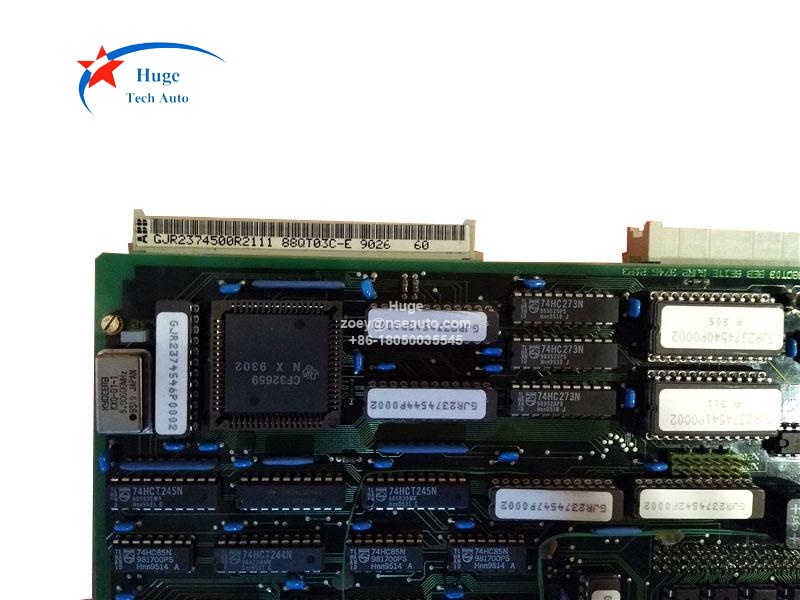

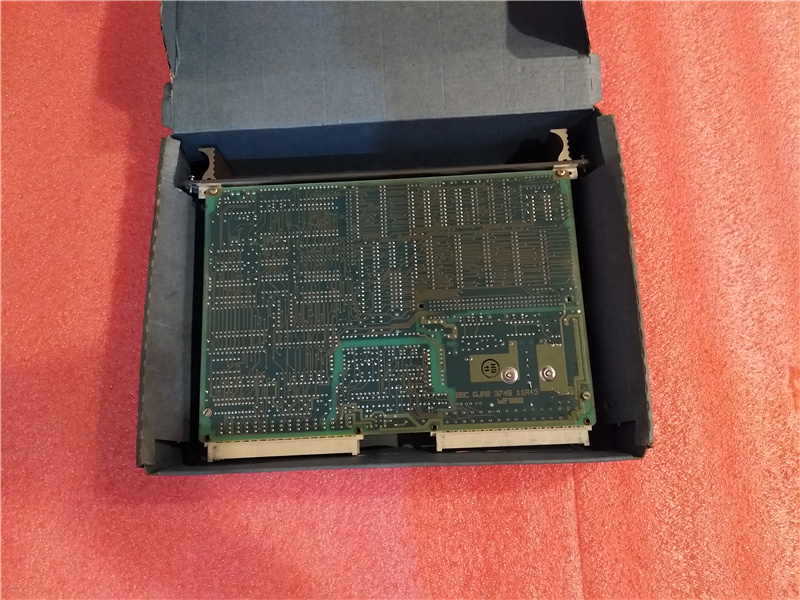

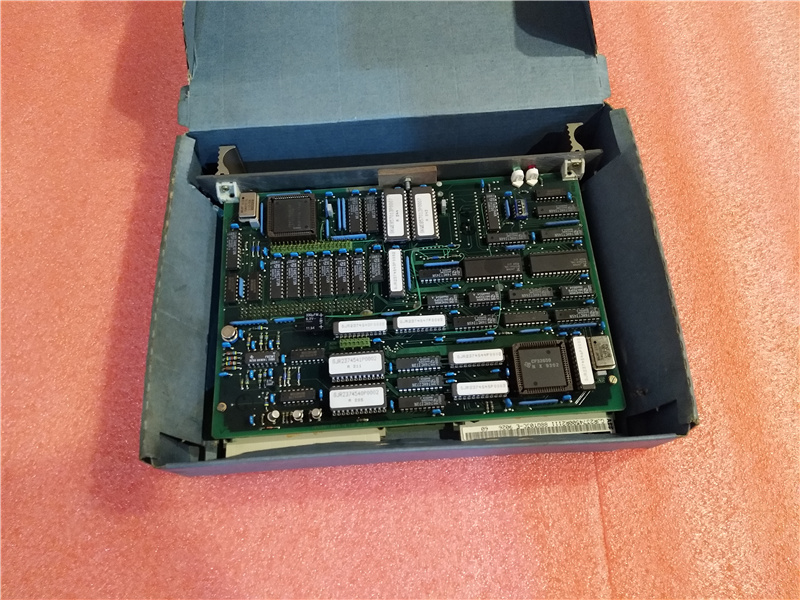

ABB 88QT03C-E GJR2374500R2111 PROCONTROL Coupling Module
Description:
88QT03C-E is ABB PROCONTROL system Coupling Module.
The bus coupling module 88QT03 connects the station bu sand the input/output station. The following input/output station modules can be connected:
-70EA01-E/R1 Analog input module(one data telegram per function unit)
-70EA02-E/R1 Analog input module (one data telegram per function unit)
-70EB01-E/R1 Binary input module (one data telegram per module)
-70EB02-E/R4 Binary input module (one data telegram per module)
-70EB03-E/R1 Binary input module (one data telegram per module)
-70ER01/R1 Input module for checkback signals(one data telegram per module)
-70AA01/R1 Analog output module (four data telegrams per module)
-70AA02/R1 Analog output module (four data telegrams per module)
-70AB01-E/R1，R2 Binary output module (one data telegram per module)
-70PR03-E/R1，R2 Computing module
-70AS04/R1 Compact drive control module
-70AS06/R1 Compact drive modulefor motor-driven actuators
-70WB01/R1 Control room coupling module(two data telegrams per module)
-70BK03-E/R1，R2 Bus coupling module(RS232,RS485 interfaces)
Connected to the station bus, the module behaves like a combined input/output module which is able to receive max. 255 telegrams from the station bus and transmit max. 200 telegrams to the station bus.

In relation to the input/output station the module acts as a processing module. lt receives and transmits a total of up to 256 telegrams.
In conjunction with the module 88QB03-E/R0100 the buscoupling module can be installed in the PROCONTROL cabinets 89MS01 and 89MS02, too.

Ordering Information:
Type designation: 88QT03-E/R2111
Ordering number: GJR2374500R2111

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
