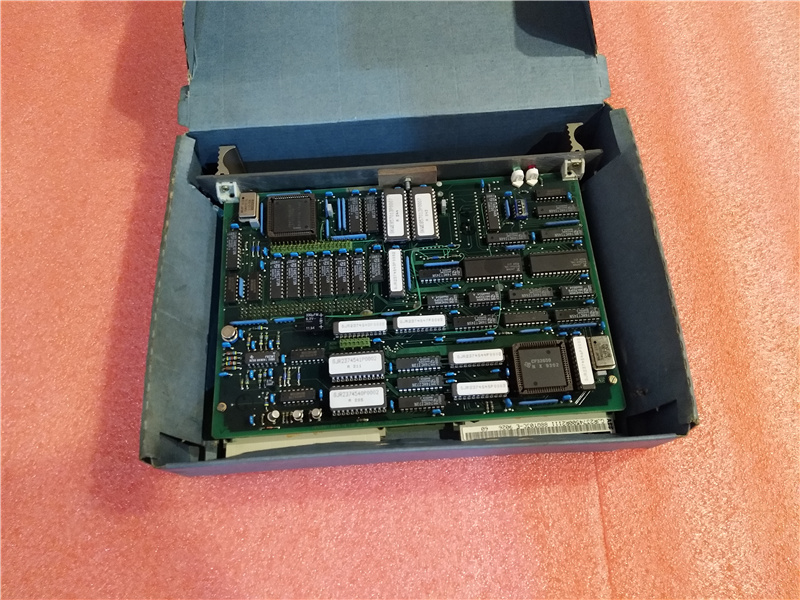

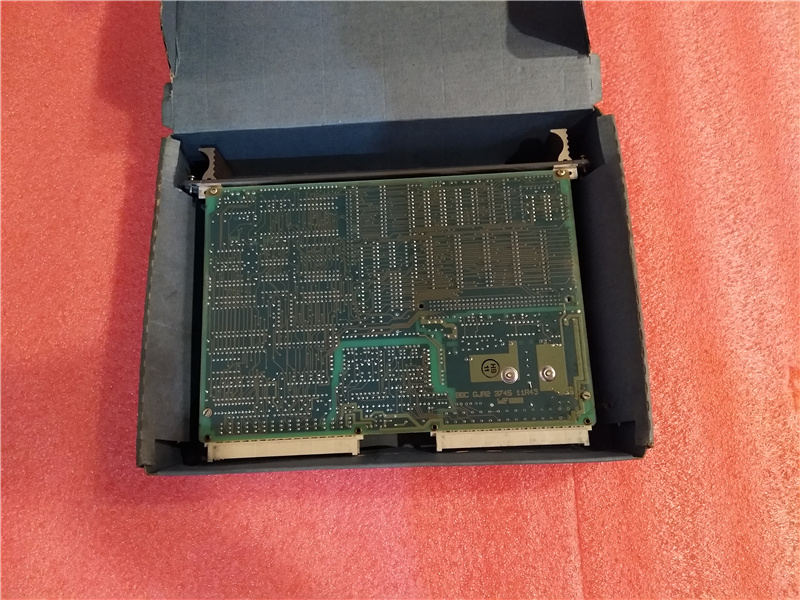

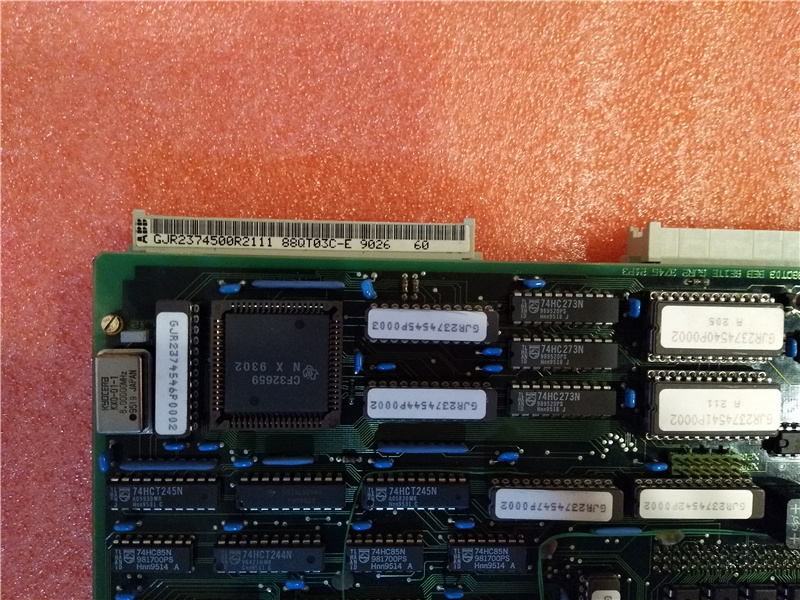

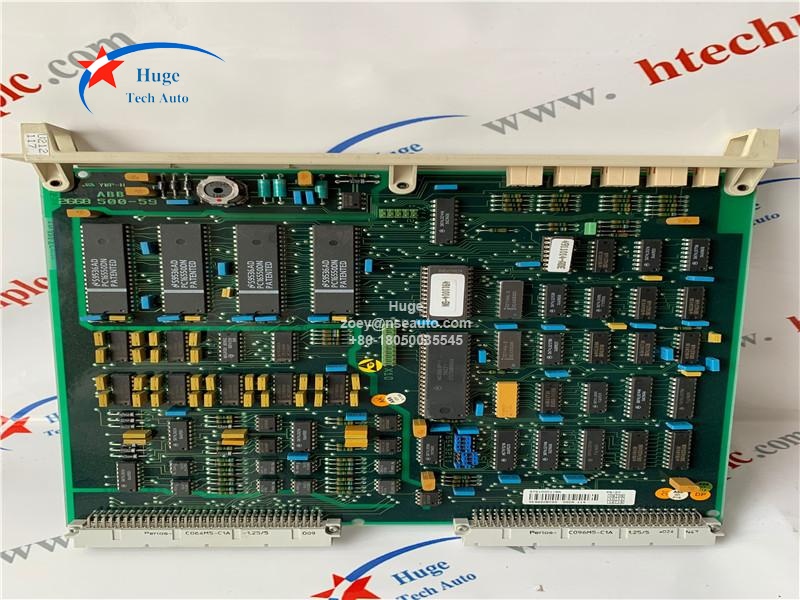

88QT03 GJR2374500R2111 88QT03C-E ABB Coupling Module
Description:
88QT03C-E is ABB PROCONTROL system Coupling Module comprises the following three function blocks (see"Function diagram”):
-section for specific station bus functions(processor l)
-processing section(processor ll)
-section for specific function of the input/output station.

These functions cooperate via two shared memories. The station-bus shared memory is a assigned to the station bus and the input/output-station-bus shared memory to the input/output station.
The bus coupling module 88QT03 connects the station bu sand the input/output station. The following input/output station modules can be connected:
-70EA01-E/R1 Analog input module(one data telegram per function unit)
-70EA02-E/R1 Analog input module (one data telegram per function unit)
-70EB01-E/R1 Binary input module (one data telegram per module)
-70EB02-E/R4 Binary input module (one data telegram per module)
-70EB03-E/R1 Binary input module (one data telegram per module)
-70ER01/R1 Input module for checkback signals(one data telegram per module)
-70AA01/R1 Analog output module (four data telegrams per module)
-70AA02/R1 Analog output module (four data telegrams per module)
-70AB01-E/R1，R2 Binary output module (one data telegram per module)
-70PR03-E/R1，R2 Computing module
-70AS04/R1 Compact drive control module
-70AS06/R1 Compact drive modulefor motor-driven actuators
-70WB01/R1 Control room coupling module(two data telegrams per module)
-70BK03-E/R1，R2 Bus coupling module(RS232,RS485 interfaces)Connected to the station bus, the module behaves like a combined input/output module which is able to receive max. 255 telegrams from the station bus and transmit max. 200 telegrams to the station bus.

In relation to the input/output station the module acts as a processing module. lt receives and transmits a total of up to 256 telegrams.
In conjunction with the module 88QB03-E/R0100 the buscoupling module can be installed in the PROCONTROL cabinets 89MS01 and 89MS02, too.

Features

The module can be plugged into any station of the PROCONTROL bus system.lt requires two divisions.
It uses:
One SS standard interface to the station bus
One SEA standard interface to the input/output station
Connections provided for hardware inputs.

As with all other station bus modules, the station bus address of this module is related to the place of installation.

However, the module may only be plugged onto even module addresses.The next higher (uneven) module address will beused automatically by the module and needs not be wired. However, it must not be assigned to another station bus module.

It transmits data from the input/output modules to the stationbus.

It transmits the data received from the station bus to modules connected to the input/output station.

The connected input/output station modules are monitored for proper function.

Disturbances are signalled to the PROCONTROL system in the form of diagnosis telegrams. They are indicated additionally on the front panel of the module by means of LEDs (see"Annunciation functions”).

The module can simulate output data destined for the input/output station.

The module merely requires a 24 V supply (voltages requiredadditionally are generated inside the module).

User lists are loaded into an EEPROM by means of the PDDS.

The standard interface to the input/output station is available both on the station bus connector X11 and the process connector X21. The interface on connector X11 can be disabled by means of plug-in jumpers.
