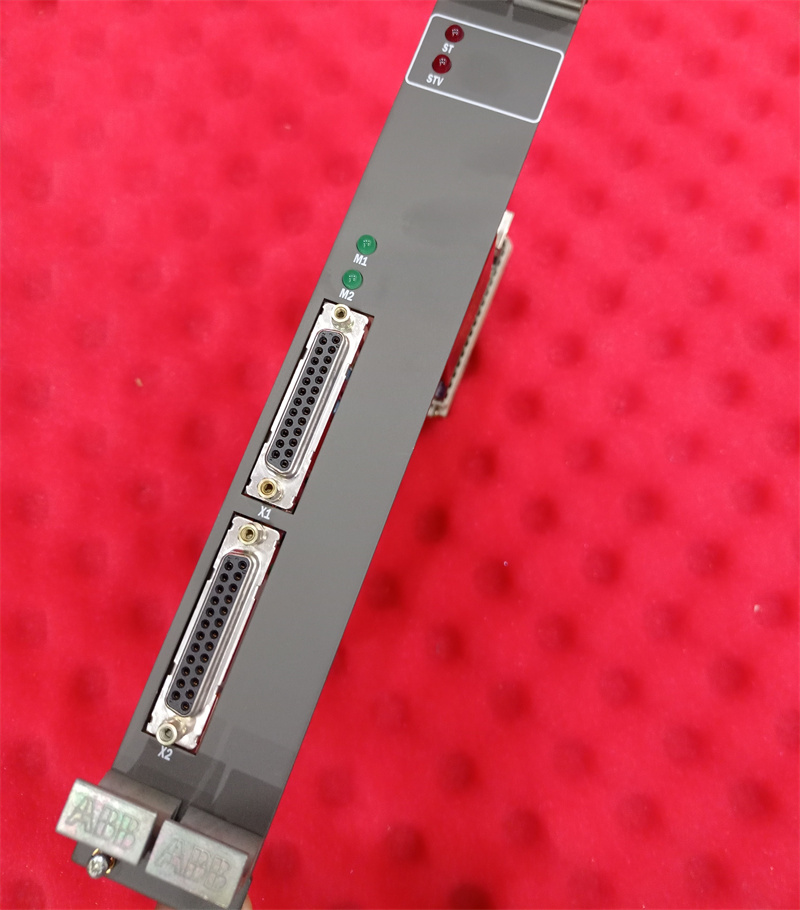

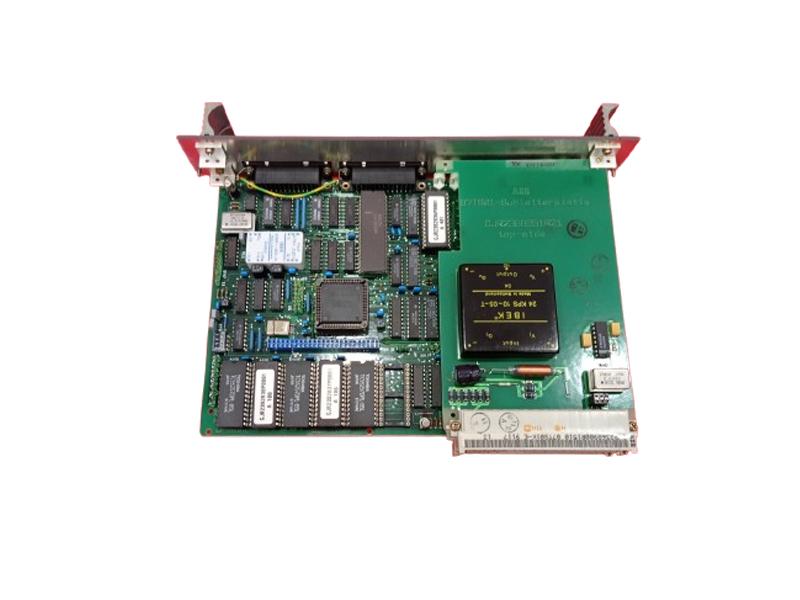

ABB 87TS01I-E GJR2368900R1510 Coupling Module
Description:
Module 87TS01 is a coupling module for connecting comput-ers or external systems to the PROCONTROL system.
For this purpose, the module is equipped with a serial interfacetype RS232c or RS422 through which a process operatorstation POS, a programming, diagnosis and display systemPDDS,control diagnosis station CDS or another computer cancommunicate with the PROCONTROL system.
The module's scope of action extends over the entire PROCONTROL system.
The application of the various module versions is described inthe relevant application descriptions.

Features:

The module can be used in any station belonging to the PROCONTROL bus system using a redundant 24 V modulesupply (starting with 89MS01/R0200 or 89MS02/R0100). It isequipped with a standard interface for the PROCONTROLstation bus.
This module requires 2 divisions for mounting space. lt can beplugged into subrack slots with address wiring 1 through 58for the station bus.
The module uses a standard interface for participating in data communication within the PROCONTROL system.
The telegrams received from the station bus are checked for error-free transmission.
Using a serial RS 232c interface,the module is capable of receiving instructions and data coming from a computer in accordance with a defined protocol, as well as transferring instructions and data to a computer.
Technical data
In addition to the system data, the following values apply:
Power supply
Operating voltage:UD+= +24 V
Current consumption, typical: IDtyp = 340 mA
Power dissipation: Pvtyp = 8.2 W
Reference potential, process side: Z= 0V
Reference potential, station bus: ZD= 0V
Module interfaces
SS-Standard interface for station bus, connector X3
SS1-Serial interface acc.to RS 232c or RS 422，connector X1
SS2-Serial interface acc. to RS 232c or RS 422，connector X2
Serial interface acc. to RS 232c
Application: Interfacing a computer
Transmission：Serial acc.to RS 232c
Transmission rate: 300-19200 baud
Transmission distance,max.: 20 m
Input and output values of the serial interface acc. to RS 232c
Input voltage, max.: +/- 25V
Output voltage,max.: +/- 12V
Qutput current: 10 mA
Short-circuit current, max.: 150 mA
Admissible temperature ranges
Operating temperature: 0 ..70℃
Storage temperature: -40.. +85°C

Ordering Data:
87TS01-E/R12..    GJR2368900R12..
87TS01-E/R13..    GJR2368900R13..
87TS01-E/R15..     GJR2368900R15..

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
