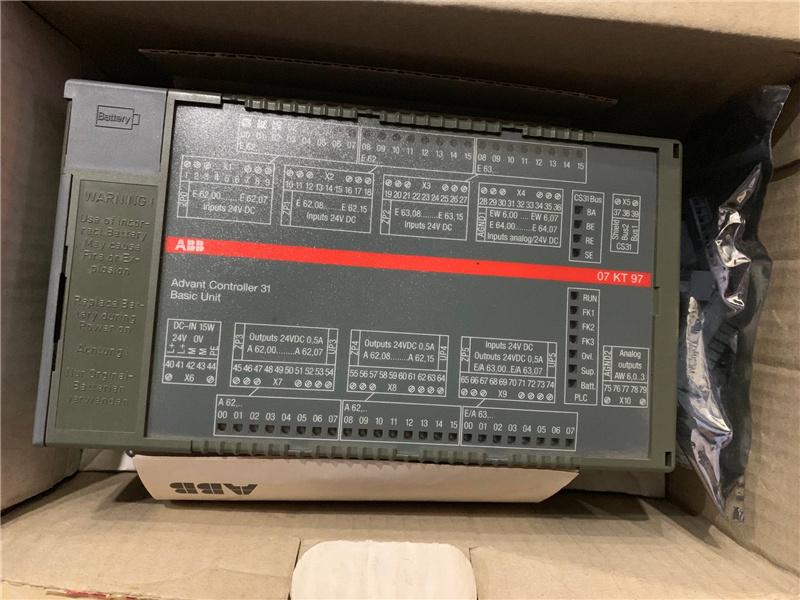

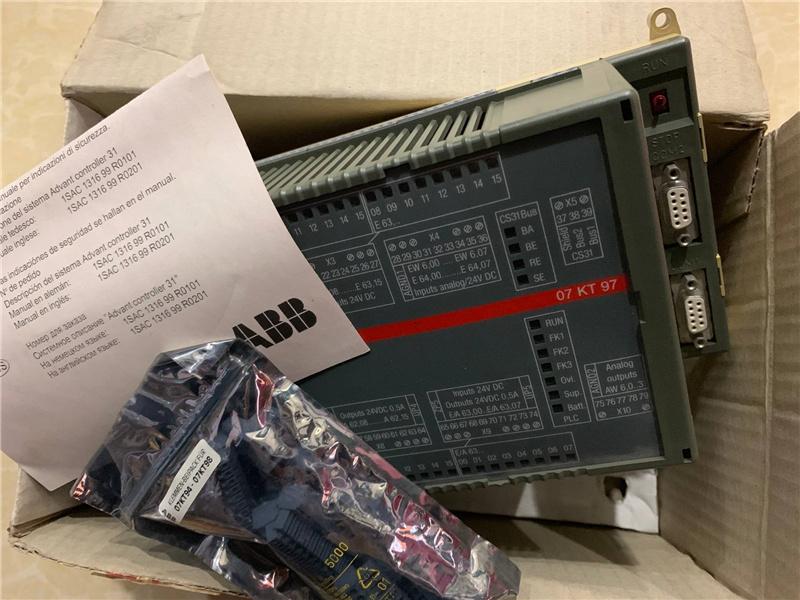

ABB 07KT97 GJR5253000R0200 Basic Unit
Description:
07KT97 is belong to ABB Advant Controller 31 system. The basic unit 07KT97R200 is the standard device for all applications. In addition, there are basic units with reduced performance (e.g. 07KT95 or 07KT96) as well as ones with extended performance (e.g. 07KT97 R260 with ARCNET connection, 07KT97 R0220 with PROFIBUS connection and 07KT97 R0262 with both ARCNET and PROFIBUS connection). This document describes the basic unit 07KT97 R200 and then adds the data sheets of the other devices which only show the differences.
Functionality of the basic units 07KT97
User program 480 kB
User data 256 kB (Flash EPROM)
Digital inputs 24 in 3 groups of 8 each, electrically isolated
Digital outputs 16 transistor outputs in 2 groups of 8 each, electrically isolated
Digital inputs/outputs 8 in 1 group, electrically isolated
Analog inputs 8 in 1 group, individually configurable to 0...10 V, 0...5 V, +10 V, +5 V, 0...20 mA,
4...20 mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs
Analog outputs 4 in 1 group, individually configurable to 0...10 V, 0...20 mA, 4...20 mA
Serial interfaces COM1, COM 2 as MODBUS interfaces and for programming and test functions
Parallel interfaces for
connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable)
System bus interface CS31
Integrated couplers see next page
High-speed counter integrated, many functions configurable
Real-time clock integrated
SmartMedia Card memory medium for operating system, user program and user data
LED displays for signal conditions, operating statuses and error messages
Power supply voltage 24 V DC
Data backup with lithium battery 07 LE 90
Programming software 907 AC 1131
Ordering Information:
Basic unit 07KT97 R0100 Order No. GJR5 2530 00 R0100
Basic unit 07KT97 R0200 Order No. GJR5 2530 00 R0200
Basic unit 07KT97 R0120 (+ PROFIBUS-DP) Order No. GJR5 2530 00 R0120
Basic unit 07KT97 R0220 (+ PROFIBUS-DP) Order No. GJR5 2530 00 R0220
Basic unit 07KT97 R0160 (+ ARCNET) Order No. GJR5 2530 00 R0160
Basic unit 07KT97 R0260 (+ ARCNET) Order No. GJR5 2530 00 R0260
Basic unit 07KT97 R0162 (+ ARCNET + PROFIBUS-DP) Order No. GJR5 2530 00 R0162
Basic unit 07KT97 R0262 (+ ARCNET + PROFIBUS-DP) Order No. GJR5 2530 00 R0262
Basic unit 07KT97 R0270 (+ Ethernet) Order No. GJR5 2530 00 R0270
Basic unit 07KT97 R0272 (+ Ethernet + PROFIBUS-DP) Order No. GJR5 2530 00 R0272
Basic unit 07KT97 R0276 (+ Ethernet + ARCNET) Order No. GJR5 2530 00 R0276
Basic unit 07KT97 R0277 (+ Ethernet + Ethernet) Order No. GJR5 2530 00 R0277
Basic unit 07KT97 R0278 (+ Ethernet + CANopen) Order No. GJR5 2530 00 R0278
Basic unit 07KT97 R0280 (+ CANopen) Order No. GJR5 2530 00 R0280
