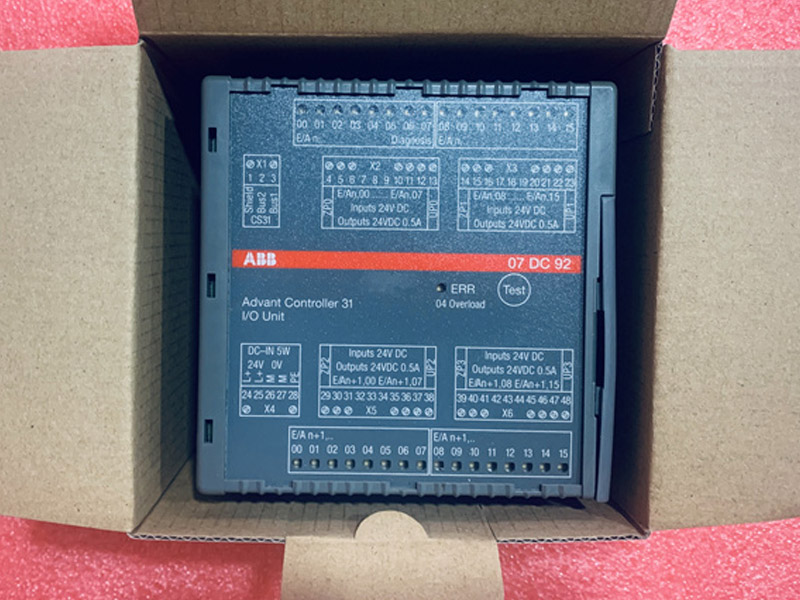

ABB 07DC92 GJR5252200R0101 Digital Input/Output Module
Description:
07DC92 is belong to ABB Advant Controller 31 system. is used as a remote module on the CS31 system bus. It contains 32 inputs/outputs, 24 V DC, in 4 groups with the following features:
• The inputs/outputs can be accessed individually
• as input,
• as output or
• as re-readable output
(combined input/output)
• The outputs
• work with transistors,
• have a nominal load rating of 0.5 A and
• are protected against overload and short circuit.
• The 4 groups of inputs/outputs are electrically isolated from each other and from the rest of the unit.
• The module occupies two digital addresses for inputs and outputs on the CS31 system bus. It is possible to configure the unit solely as an output module. In this case, the addresses for the inputs are not needed.
The unit works with a supply voltage of 24 V DC.
The system bus connection is electrically isolated from the rest of the unit.
