ABB 07DC92 GJR5252200R0101 Digital I/O module, 32 configurable I/Os, 24 V DC, output load max. 500 mA
ABB 07DC92 GJR5252200R0101 Digital I/O module, 32 configurable I/Os, 24 V DC, output load max. 500 mA
Brand:
ABB DCSItem NO.:
07DC92Order(MOQ):
1 PCPayment:
T/TShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year

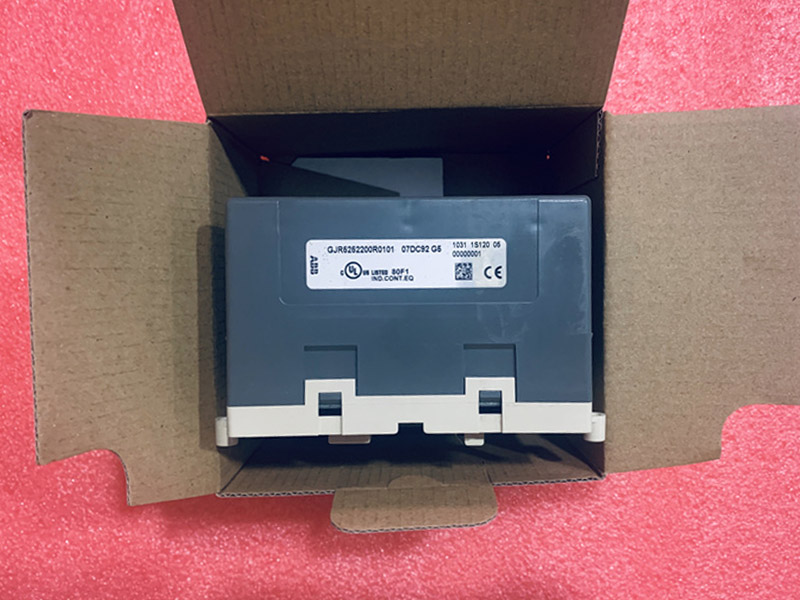

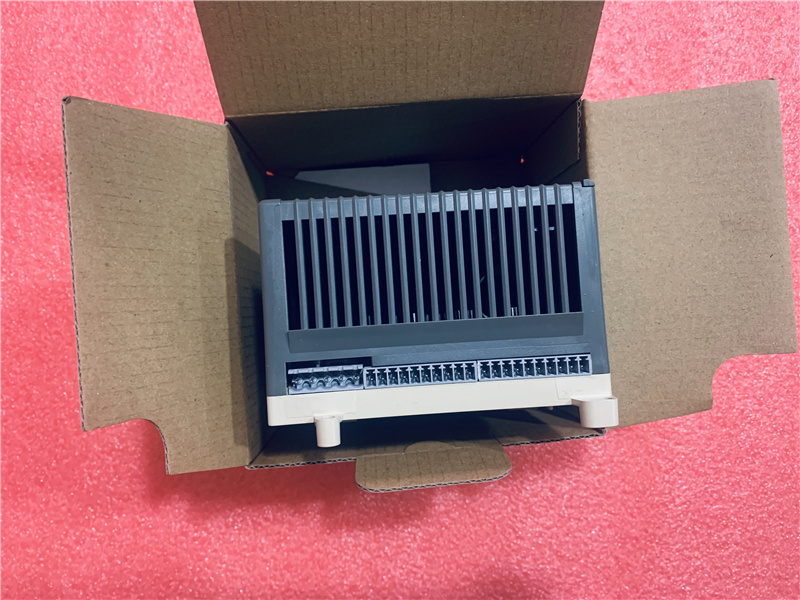

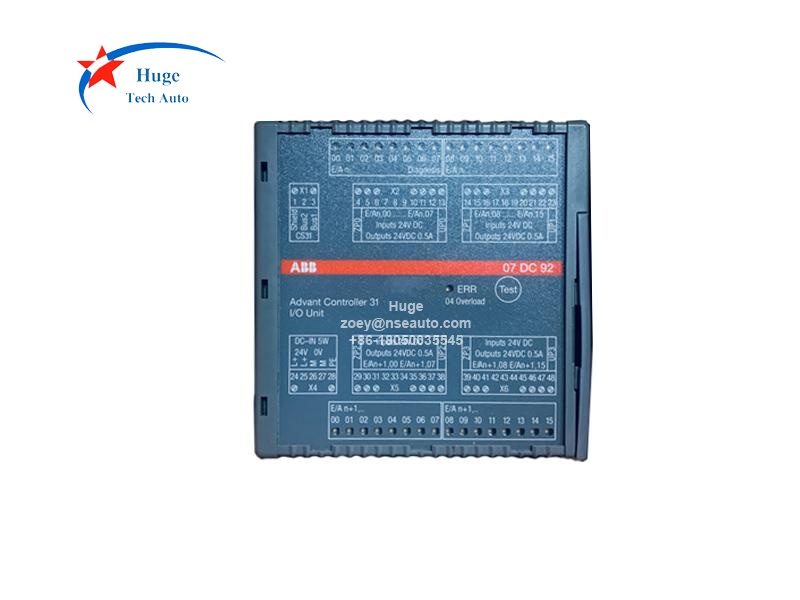

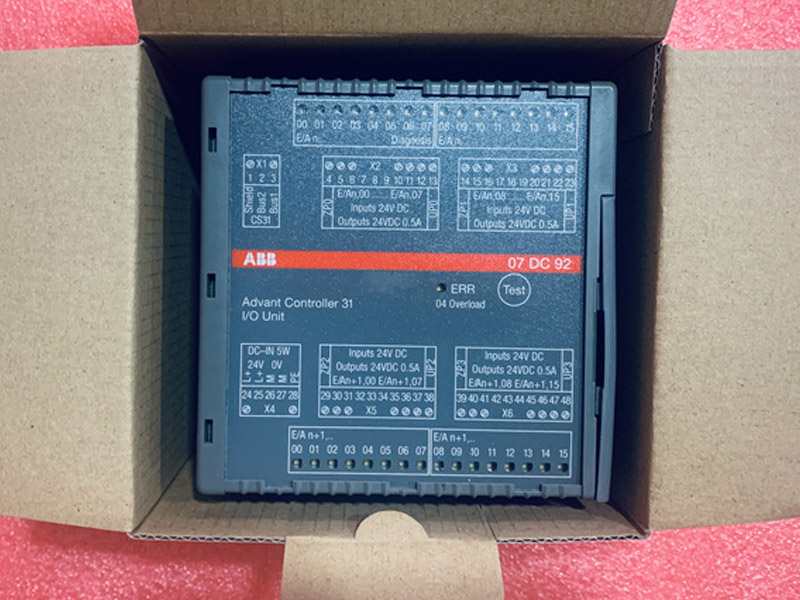

ABB 07DC92 GJR5252200R0101 Digital Input/Output Module
Description:
07DC92 is belong to ABB Advant Controller 31 system. is used as a remote module on the CS31 system bus. It contains 32 inputs/outputs, 24 V DC, in 4 groups with the following features:
• The inputs/outputs can be accessed individually
• as input,
• as output or
• as re-readable output
(combined input/output)
• The outputs
• work with transistors,
• have a nominal load rating of 0.5 A and
• are protected against overload and short circuit.
• The 4 groups of inputs/outputs are electrically isolated from each other and from the rest of the unit.
• The module occupies two digital addresses for inputs and outputs on the CS31 system bus. It is possible to configure the unit solely as an output module. In this case, the addresses for the inputs are not needed.
The unit works with a supply voltage of 24 V DC.
The system bus connection is electrically isolated from the rest of the unit.
Technical data of the complete unit
|
Permissible temperature range during operation |
0...55 °C |
|
Rated supply voltage |
24 V DC |
|
Rated signal voltage for inputs and outputs |
24 V DC |
|
Max. current consumption without load |
0.15 A |
|
Max. rated load for supply terminals |
4.0 A |
|
Max. power dissipation in module (outputs without load) |
5 W |
|
Max. power dissipation in module (outputs under load) |
10 W |
|
Protection against reversed polarity of power connection |
yes |
|
Conductor cross section for the removable connectors power supply CS31 system bus signal terminals supply for I/O groups |
max. 2.5 mm2 max. 2.5 mm2 max. 1.5 mm2 max. 1.5 mm2 |
|
Number of configurable inputs/outputs |
32 (the configurable channels are defined individually by the user program to be either inputs or outputs. This is accomplished by interrogating or assigning the appropriate channel). |
|
Electrical isolation CS31 system bus inputs/outputs |
from the rest of the unit group from group, all groups from the rest of the unit |
|
Supply of the I/O groups |
each group is supplied individually |
|
Number of interfaces |
1 CS31 system bus interface |
|
Address setting |
Coding switch located under the slide cover at the right side of the housing |
|
Operation and error displays |
a total of 33 LEDs |
