A6740 Emerson EPRO 16-Channel Output Relay Module

Emerson EPRO CSI 6500 Machinery Health Monitor A6740 16-Channel Output Relay Module

Brand:
Emerson
Item NO.:
A6740
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Germany
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
450g
Warranty:
1 year

Product Detail

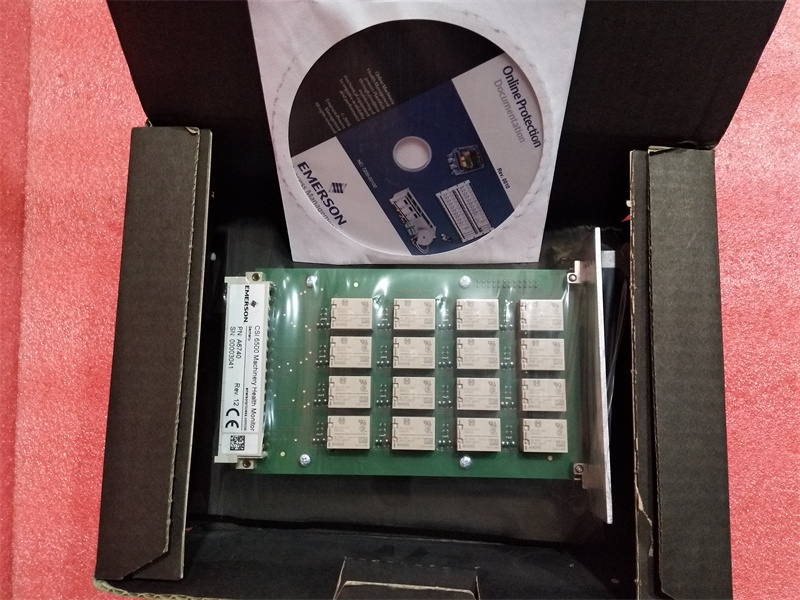

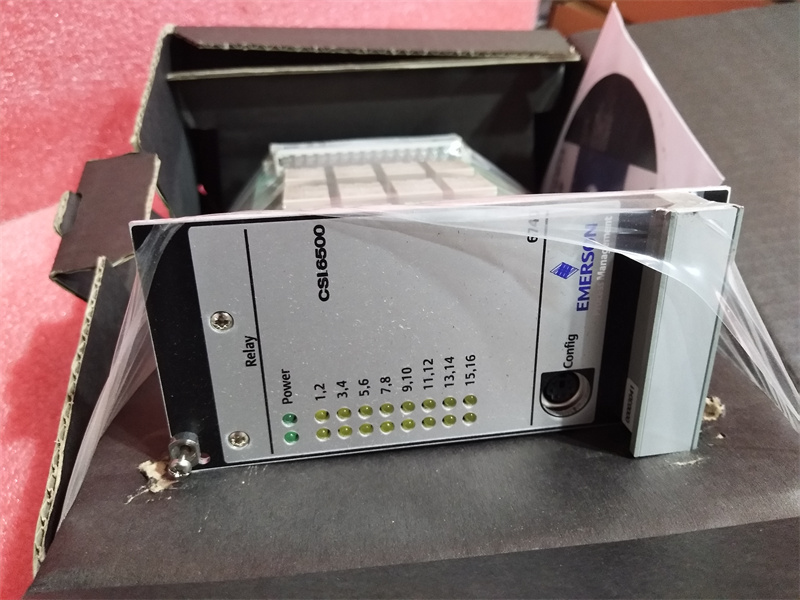

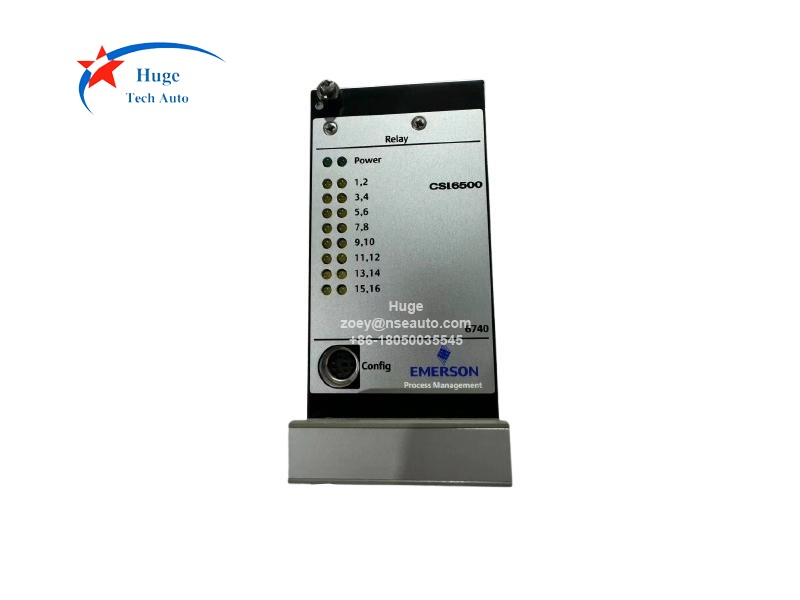

Emerson EPRO A6740 16-Channel Output Relay Module
Description:

A6740 is Emerson 16-Channel Output Relay Module, designed for high reliability for the plant’s most critical rotating machinery. This 2-slot monitor is used together with the AMS 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery.

Any channel clear, alert or alarm signal can be selected as input to the 16-Channel Output Relay Module. Use Boolean logic, apply time delay, and select an output relay to complete the configuration. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration.

The AMS 6500 Machinery Health Monitor is an integral part of PlantWeb® and AMS software. PlantWeb provides operations integrated machinery health combined with the Ovation® and DeltaV™ process control system. AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.

Features:
· 3U size, 2-slot plug-in module decreases cabinet space requirements in half from traditional 6U size cards
· API 670 compliant, hot swappable module
· 60 inputs, 30 logical expressions, 16 relay outputs

· 6740 is a 12TE wide module for IMR6000 series rack

Specifications:
Relays: Redundant relay configurable Mechanical relays per API 670 specification Control voltage: 13-32 VDC Contact load: 48 V, 1 A Normally open or Normally closed, selectable Normally energized, or Normally non-energized, selectable Single pole, double throw (SPDT)
Logic: Redundant relay configurable Off, AND, OR, 2 out of 3, AND AND OR Up to 30 logic expressions definable per 6740 module
Inputs: 60 inputs of type: Channel clear (slot number), channel 1 and 2 Alert (slot number), channel 1 and 2 Danger (slot number), channel 1 and 2
Outputs: Relay 1 - 16
Time Delay: 0 - 30 seconds
Handle: Easily remove card and provide plate for module identification
Module: IP 00, DIN 40050
Front Plate: IP 20, DIN 40050
Climate: DIN 40040 class KTF
Operating Temperature：0° - 65°C (32° - 149°F)
Temperature for Storage and Transport：-40° - 70°C (-40° - 158°F)
Relative Humidity：5 - 95%, non-condensing
Dimensions: 160x128x 60 mm

Weight: 450g
