89AS30

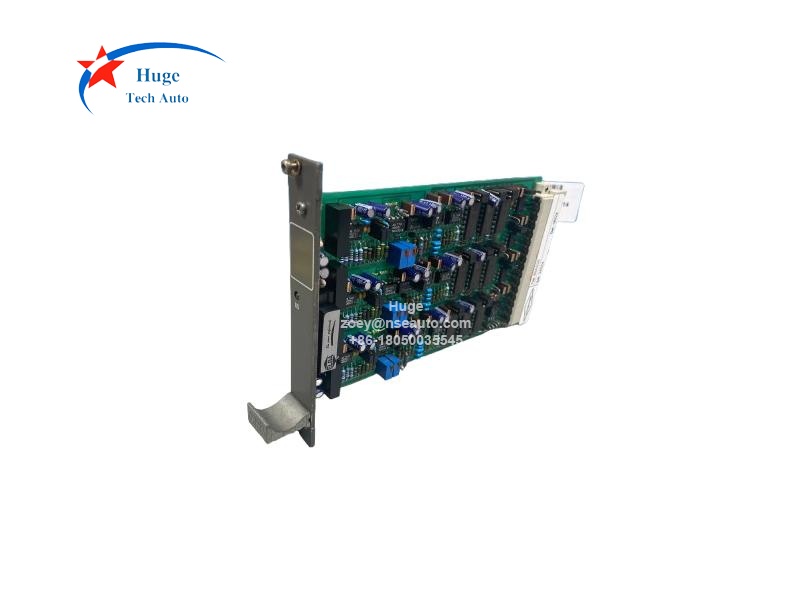

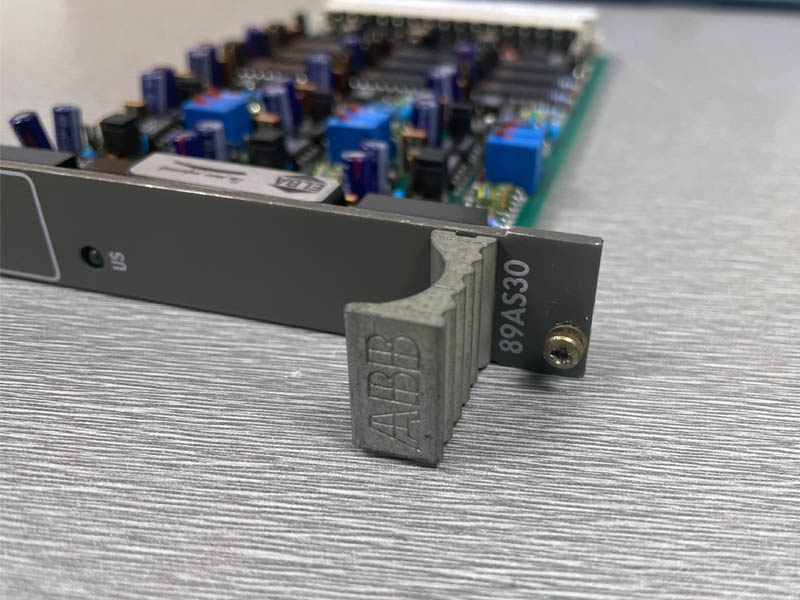

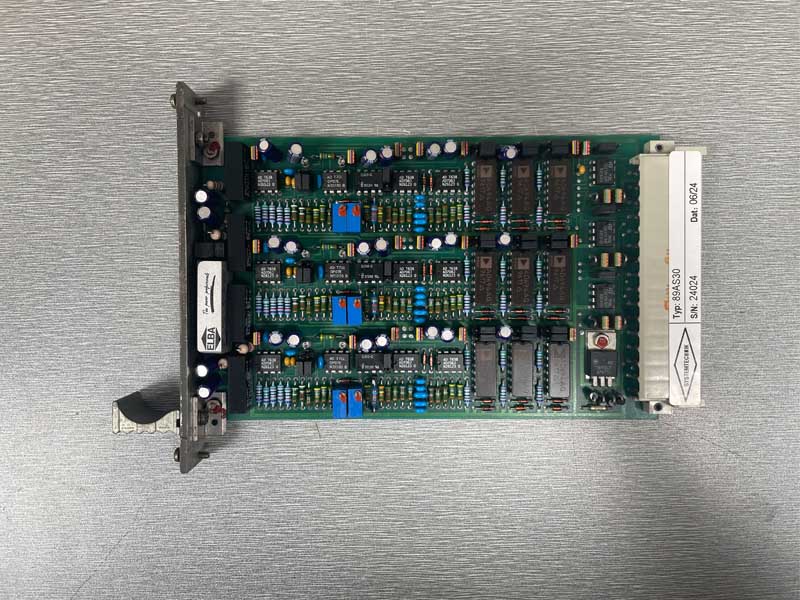

89AS30 GKN000317R0100 ABB Analog Signal Multiplier

ABB Procontrol system Analog Signal Multiplier 89AS30 GKN000317R0100

  • Brand:

    ABB DCS

  • Item NO.:

    89AS30 GKN000317R0100

  • Order(MOQ):

    1 PC

  • Payment:

    T/T

  • Product Origin:

    Germany

  • Shipping Port:

    Xiamen

  • Lead Time：

    In stock

  • Warranty:

    1 year
Request A Quote
datasheet download
Product Detail
89AS30 GKN000317R0100 ABB Analog Signal Multiplier
Description:
89AS30 is ABB Procontrol P system Analog Signal Multiplier. 89AS30 is used for converting and multiplying analog signals.
The inputs are electrically isolated from the rest of the circuitry. For supplying transmitters and other devices, a voltage of 15V or 24 VDC is available for each input, also electrically isolated.
89AS30 contains 3 identical function units. The outputs are separated.
Technical data:
Power supply
Supply voltage：+24 V DC
Current consumption：approx. 110 mA + output currents
Input values E1, E2, E3
Voltage input： 0 ... 10 V (max. 30 V)
Input resistance： >100 kOhm
Current input： 0 ... po mA, 4 ... 20 mA
Load resistance RB：55 0hm
Transmitter supply us1, us2, us3
Selectable by means of jumpers： 15 V DC, max. 25 mA
                                                     24 V DC, max.25 mA
Output values
Current outputs A11, A12, A13, A21, A22, A23, A31, A32, A33
selectable by means of jumpers： 0 ... 20 mA，4 ... 20 mA
Max. burden RB： 1000 Ohm
Transmission values
Transmission error at input/output within the permissible
temperature range and the permissible
Supply voltage tolerances：≤ 0.3 %
Signal delay: <1 msec

Ordering Information:
89AS30-E/R0100
Order number: GKWN000317R0100
