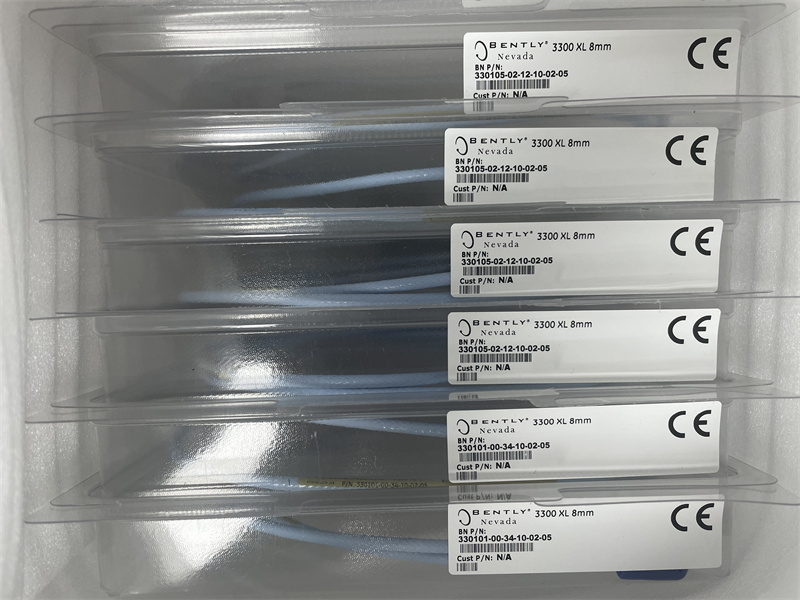

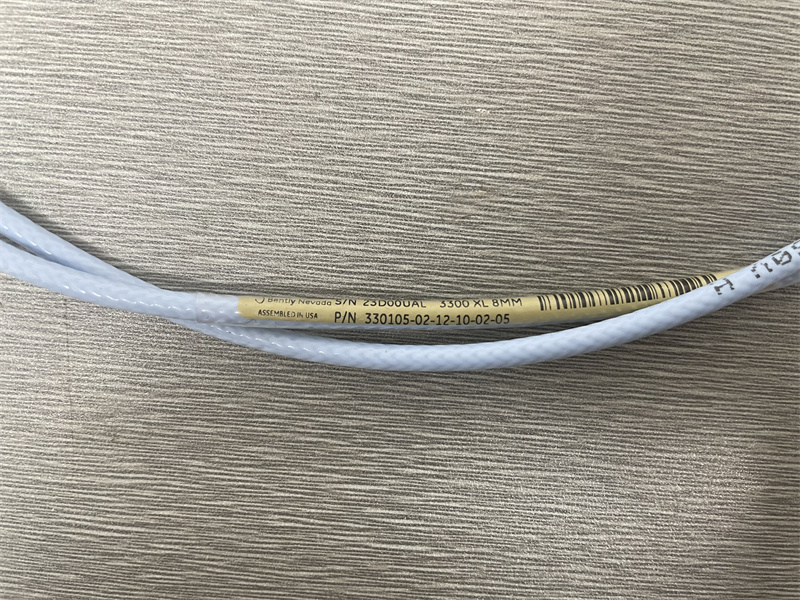

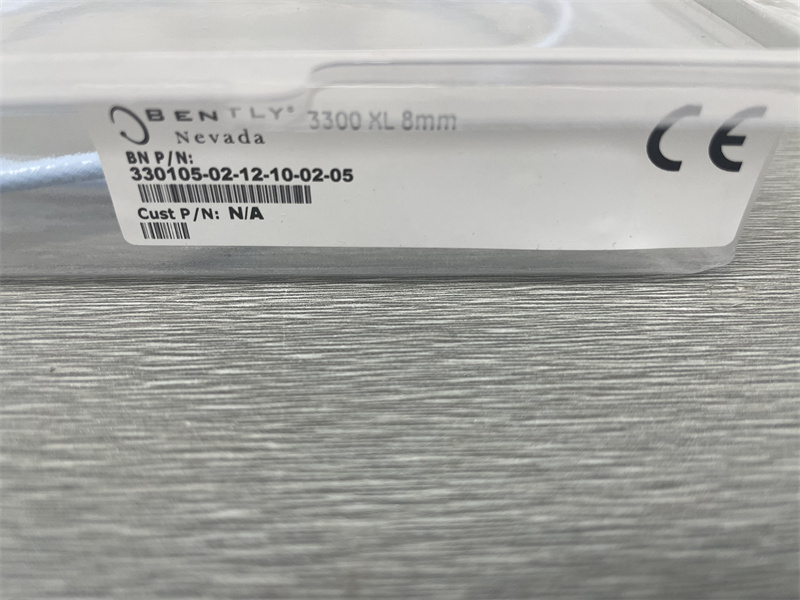

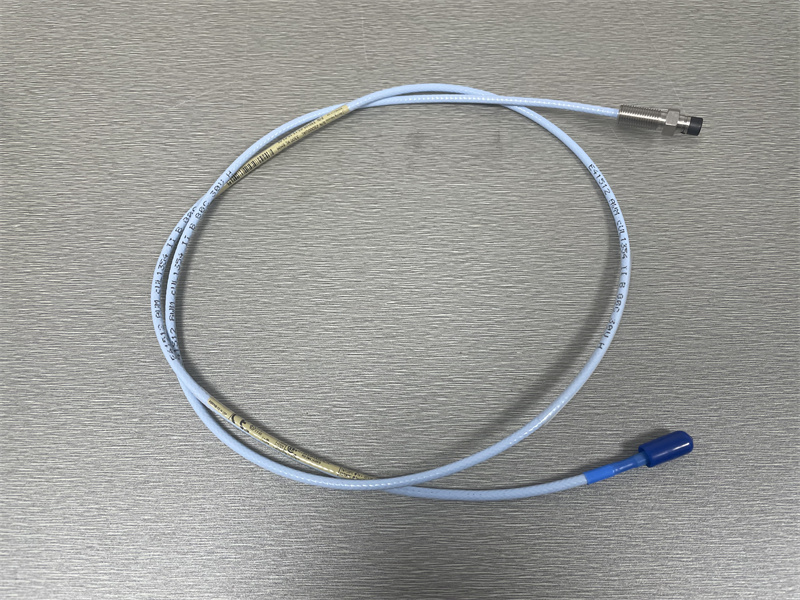

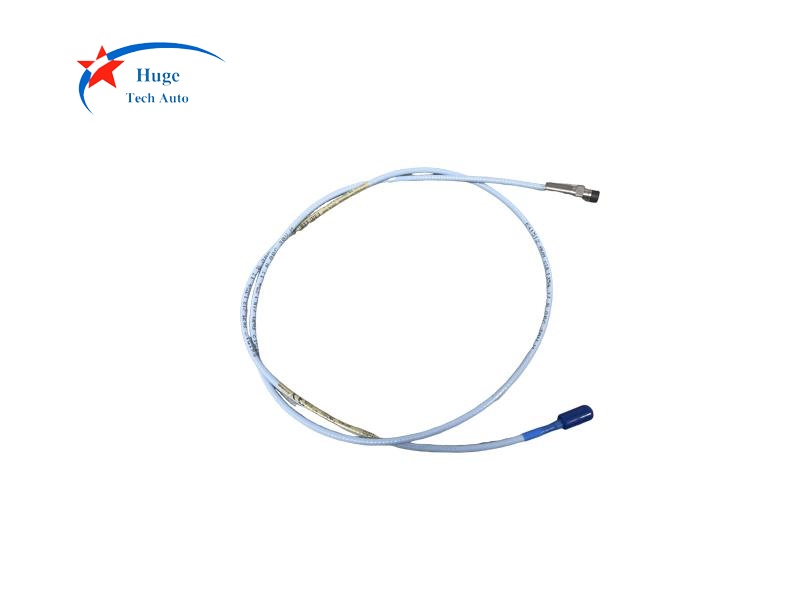

Bently Nevada 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe
Description:
330105-02-12-10-02-05 is belong to Bently Nevada 3300 XL 8mm Proximity Transducer System. The 330105-02-12-10-02-05 is Reverse Mount Probe. It is with EE3/8-24 UNF threads.
330105-02-12-10-02-05 reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

Ordering Information:
330105-02-12-CC-DD-EE
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)

D: Connector and Cable-Type Option
02 Miniature ClickLoc coaxial connector
12 Miniature ClickLoc coaxial connector ,
FluidLoc cable

E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals

FAQ:
Whats's the difference between 330105 and 330106?
330105 and 330106 are both 3300 XL 8 mm Reverse Mount Probes. 330105 is EE3/8-24 UNF threads, 330106 is M10 x 1 threads.

Where can 330105-02-12-10-02-05 be used?
The primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
