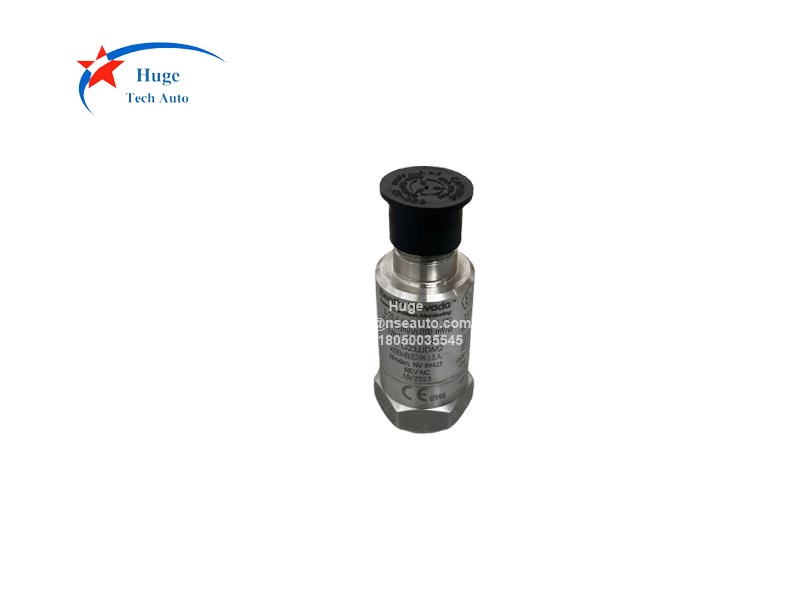

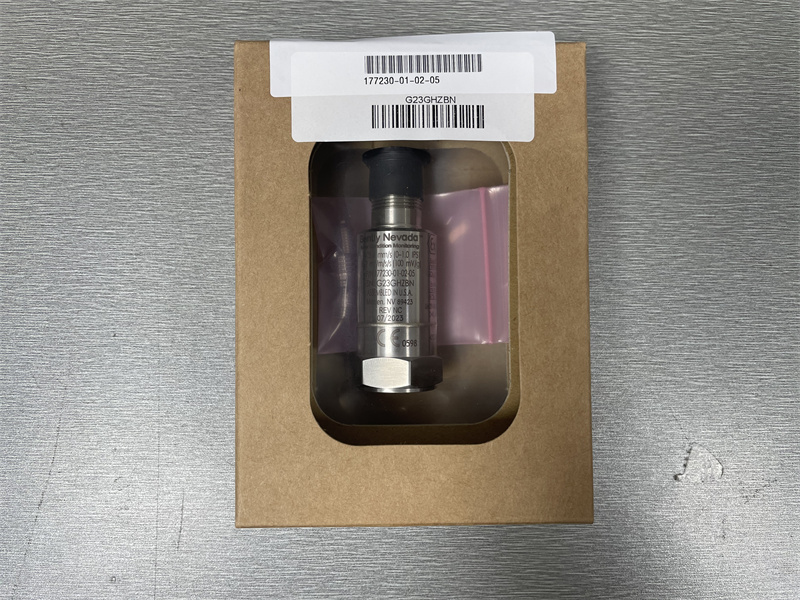

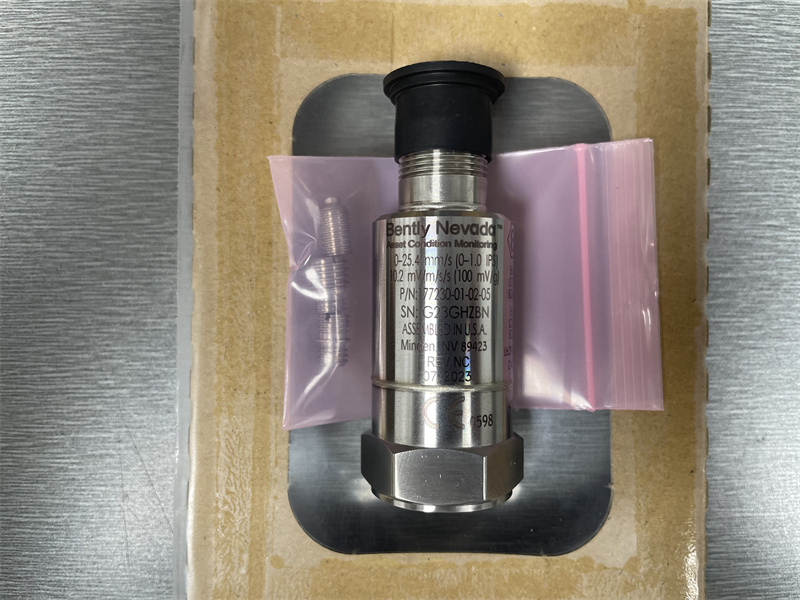

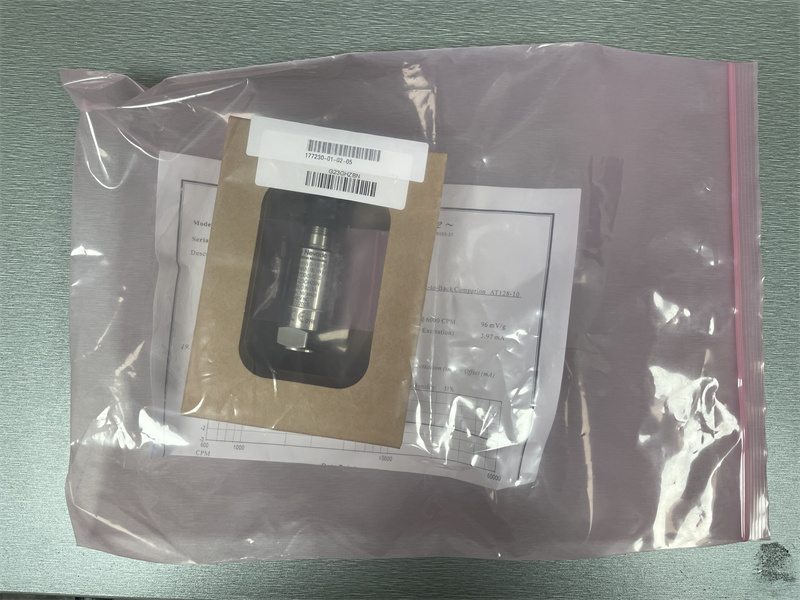

Bently Nevada 177230-01-02-05 Seismic Transmitter
Description:
177230-01-02-05, the Bently Nevevada Seismic Transmitter, measurement range is 0 – 25.4 mm/s (0 – 1.0 in/s), with Frequency 3 Hz to 1 kHz (180 to 60 kcps) pk. The difference between 177230-01-02-05 and 177230-01-01-05 is the frequency. 177230-01-02-05 has 3-pin MIL-C-5015 with 316L stainless steel, mounting hole is 1/4-28 UNF.
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs. The transducer helps you better manage downtime, optimize maintenance planning, and avoid unforeseen catastrophic failures of machinery assets.
The 177230 Seismic Transmitter incorporates robust CM design for reliability and implements an industry-standard 4 to 20 mA loop-powered transmitter.
Easily Installed and Integrated
· Interfaces with PLCs and control systems (including DCS and SCADA)
· Requires only a short learning curve for operations and maintenance –through a familiar interface similar to that for connecting other PLC or control system inputs l
· Requires no field configuration or adjustments
· Needs few additional parts for a complete system
· Includes technical support for customers on how to monitor their equipment
· Includes self-test
· Incorporates protected interface
· Supports a variety of interface cables
Ordering Information:
177230-AA-BB-CC
A: Measurement Range
00 0 – 12.7 mm/s (0 – 0.5 in/s)
01 0 – 25.4 mm/s (0 – 1.0 in/s)
02 0 – 50.8 mm/s (0 – 2.0 in/s)
B: Frequency
01 10 Hz to 1 kHz (600 to 60 kcps) rms
02 3 Hz to 1 kHz (180 to 60 kcps) pk
C: Approvals
05 Multiple Approvals (CSA/NRTL/C, ATEX/IECEx)
Related items:
177230-01-01-05
177230-02-01-05
