114M5329-01 3500/15 Bently Nevada High Voltage DC Power Supply

Bently Nevada High Voltage DC Power Supply 3500/15 114M5329-01

Brand:
Bently Nevada TSI
Item NO.:
114M5329-01
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price:
$999
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
1.39kg
Warranty:
1 year

Product Detail

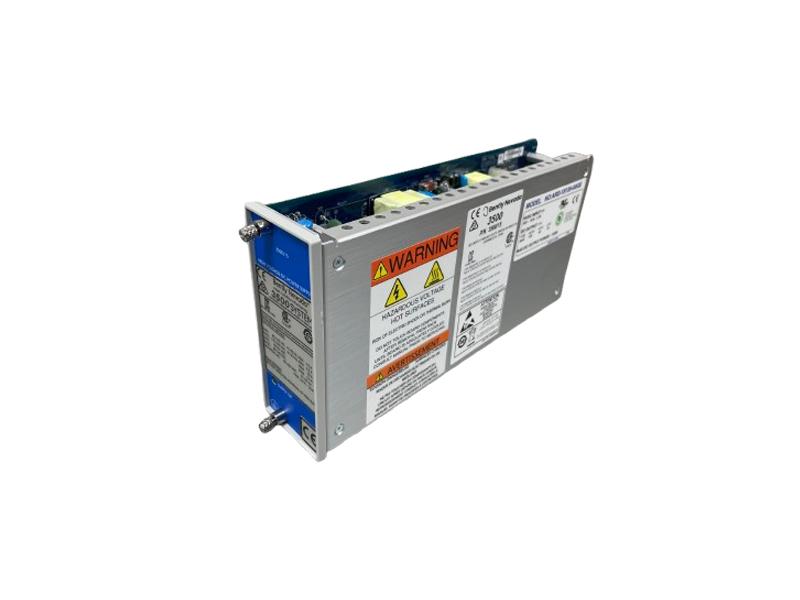

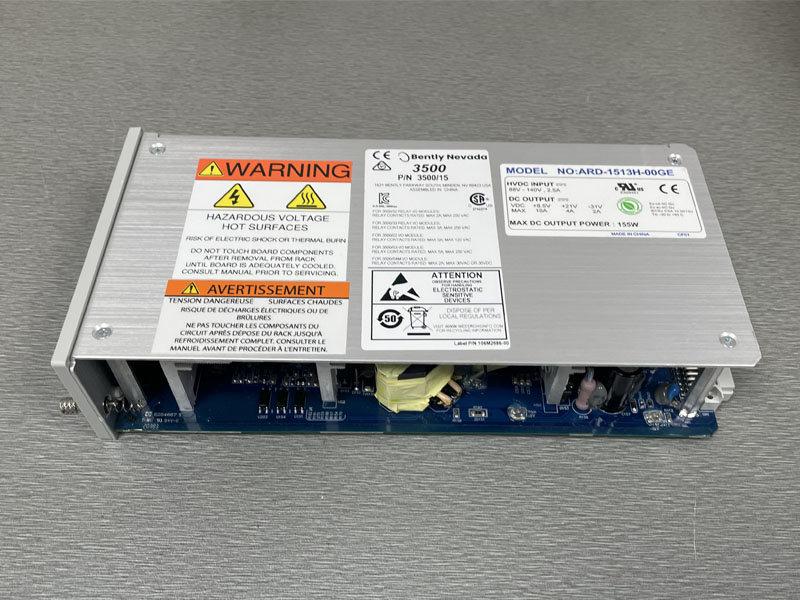

Bently Nevada High Voltage DC Power Supply 3500/15 114M5329-01
Description:

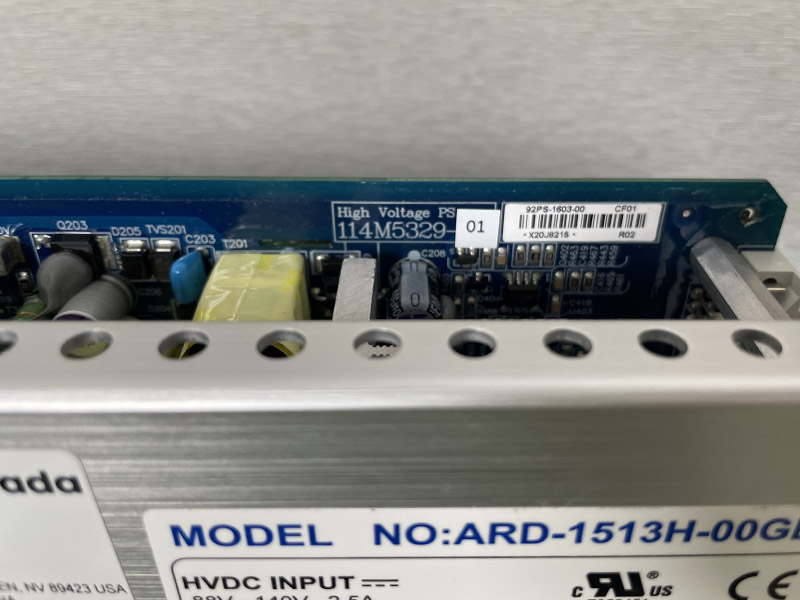

114M5329-01 is Bently Nevada High Voltage DC Power Supply and it need to use with High Voltage DC Power Input Module (PIM). 114M5329-01 is half-height modules and must be installed in designated slots on the left side of the rack, it supports dc inputs from 88 to 140 Vdc.

114M5329-01 is the successor of 129486-01.

The 3500/15 Power Supply can be ordered for ac or dc input power, providing compatibility with voltage sources worldwide. Line noise filters are standard. The 3500 Rack can operate from a single supply, or dual supplies can be used to provide redundancy for situations that cannot tolerate power interruption.
Dual supplies reside in the upper and lower positions of the left-most rack slot. Redundant supplies can use separate voltage sources. For example, the primary (lower) supply can operate with 120 Vac power while the backup (upper) supply can be powered from an uninterruptible 24 Vdc source.
Each supply can individually provide power to the entire rack and its modules. When redundant supplies are used, the lower supply acts as primary power for the rack while the upper supply acts as a backup, ready to instantly and automatically operate as the primary rack supply without interrupting rack functions should the primary supply fail.

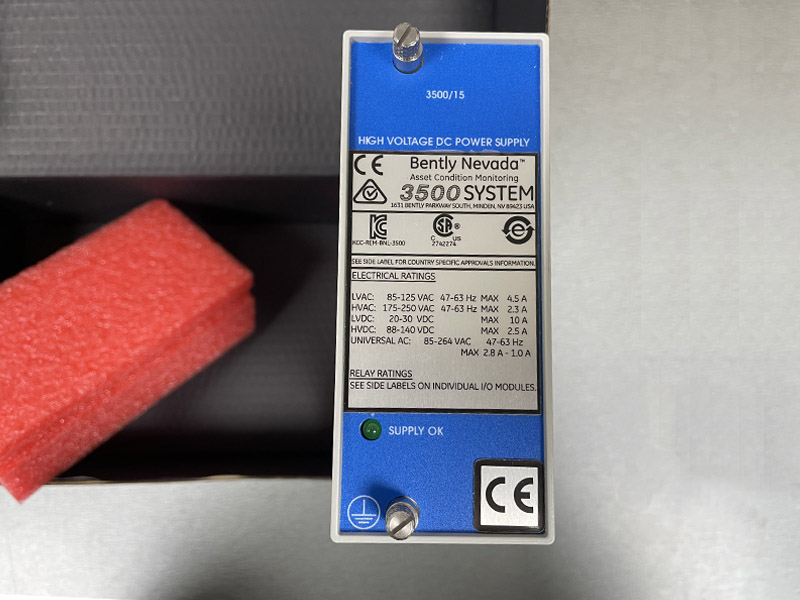

The 3500/15 Power Supply module has self-monitoring functions that allow it to determine if all its output voltages are within specifications. The module annunciates this via a green Supply OK LED on the power supply’s front panel.

Specifications:
Input: 88-140 Vdc
Input Current: 2.5 A maximum
Input Power: 194 W maximum

Efficiency: 0.8 minimum, typical

Ordering Information:
3500/15 -AA-BB-CC
A: Power Supply Type (Top Slot)
03 Legacy High Voltage DC (88 to 140 Vdc)
04 Legacy Low Voltage DC (20 to 30 Vdc)
05 Universal AC Voltage (85 to 264 Vac rms)
06 High Voltage DC Supply
07 Low Voltage DC Supply
B: Power Supply Type (Bottom Slot)
00 No Supply (Used when no supply is required)
03 Legacy High Voltage DC (88 to 140 Vdc)
04 Legacy Low Voltage DC (20 to 30 Vdc)
05 Universal AC Voltage (85 to 264 Vac rms)
06 High Voltage DC Supply
07 Low Voltage DC Supply
C: Agency Approval
00 None
01 CSA / NRTL / C (Class 1, Division 2)
02 ATEX / IECEx / CSA (Class 1, Zone 2)
Spares:
