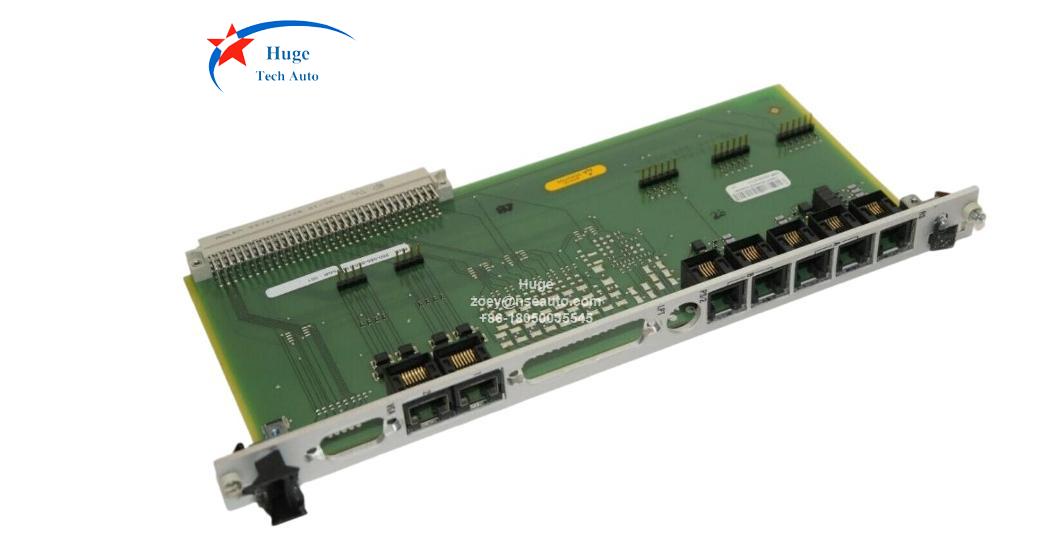

IOCN 200-566-101-012｜VM600 IOCN Communication I/O Module for Rotating Machinery Vibration Monitoring
Description:
IOCN 200-566-101-012 is the communication and input-output node module designed for the VM600 machinery protection rack system. It works closely with the CPUM controller card inside the rack and acts as the main data gateway for the whole monitoring unit. Field sensors collect vibration, shaft position and rotating speed signals and send raw data to the monitoring cards. This IOCN module gathers all measured data from these cards, and sends organized data to control systems on site.

It comes with two independent Ethernet ports for redundant network links, plus multiple serial ports to support Modbus TCP, Modbus RTU and PROFINET. Even if one network line fails, the second channel keeps data transmission running without system stop. The module has built-in protection against electric surge and electromagnetic noise. It can work steadily in industrial cabinets where motors and power cables create heavy signal interference. Front LED lights show real-time working status, so field engineers can quickly check power, network link and fault status. It uses standard rack slot installation. When maintenance is needed, users can swap the module directly without taking the whole rack apart. It runs on 24V DC power and keeps continuous operation for long-term machinery monitoring tasks.

Application Value

Used on gas turbines, steam turbines, centrifugal compressors and large process pumps in power, oil and gas plants. It transfers real-time machine health data, helps operators track vibration changes and trigger machine protection actions. It reduces unexpected machine shutdown and cuts maintenance cost for critical rotating equipment.

FAQ

1.Q: Can this IOCN module work alone without CPUM card in the rack?

A: No. The IOCN module is the communication and I/O extension card. It depends on CPUM card for data processing and system logic. It cannot operate independently.

2.Q: Do I need to set up network parameters again after replacing the IOCN module?

A: In most cases, the configuration is stored on the CPUM card. After module replacement, you only need to confirm network connection. But you still need to verify data reading to ensure full function.
